Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2009
>>
Vibe FWD L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Canister Vent Valve
Canister Vent Valve

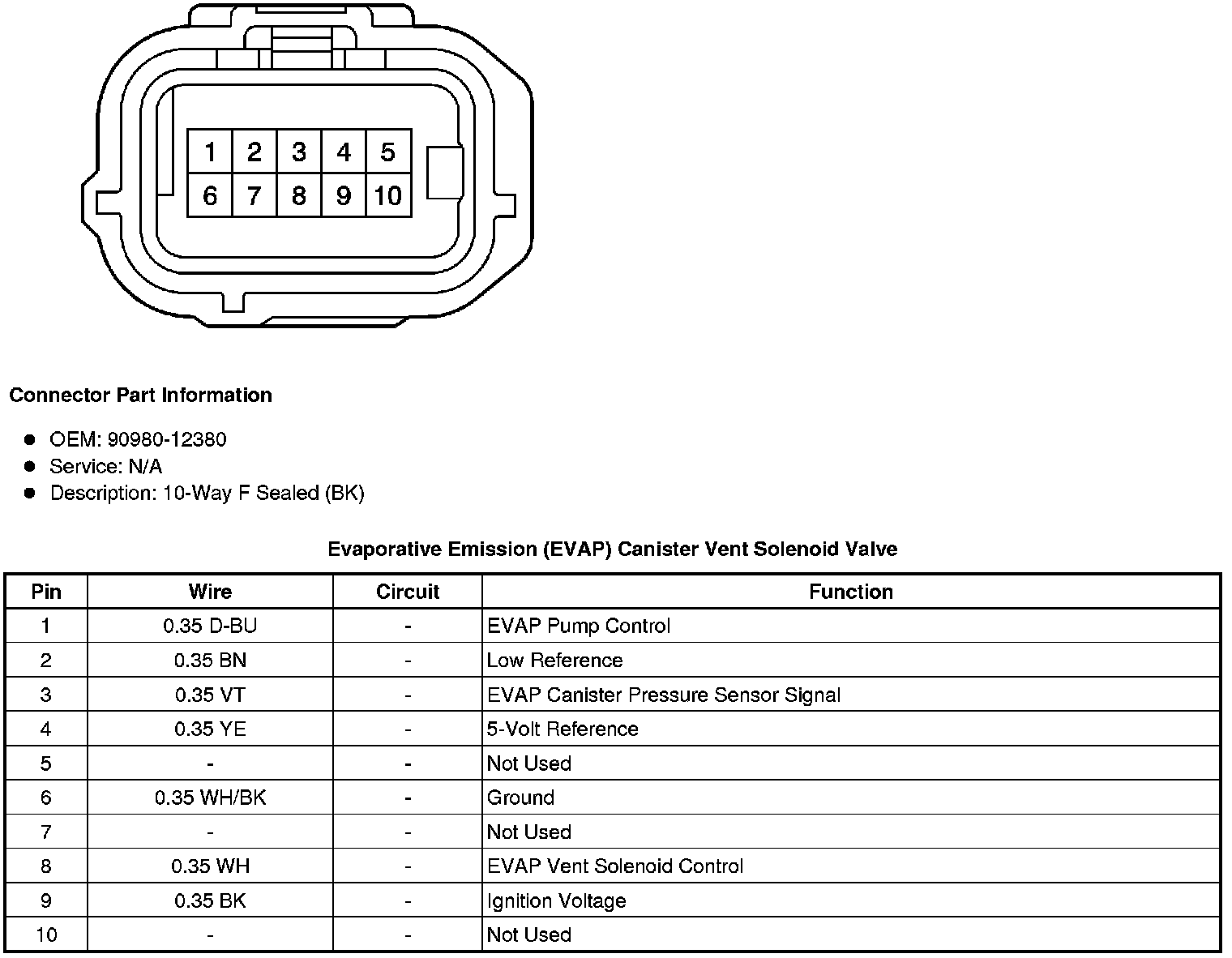

Component Connector End Views
Evaporative Emission (EVAP) Canister Vent Solenoid Valve
