Pontiac
>>
2009
>>
Vibe FWD L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
Fuel Pump

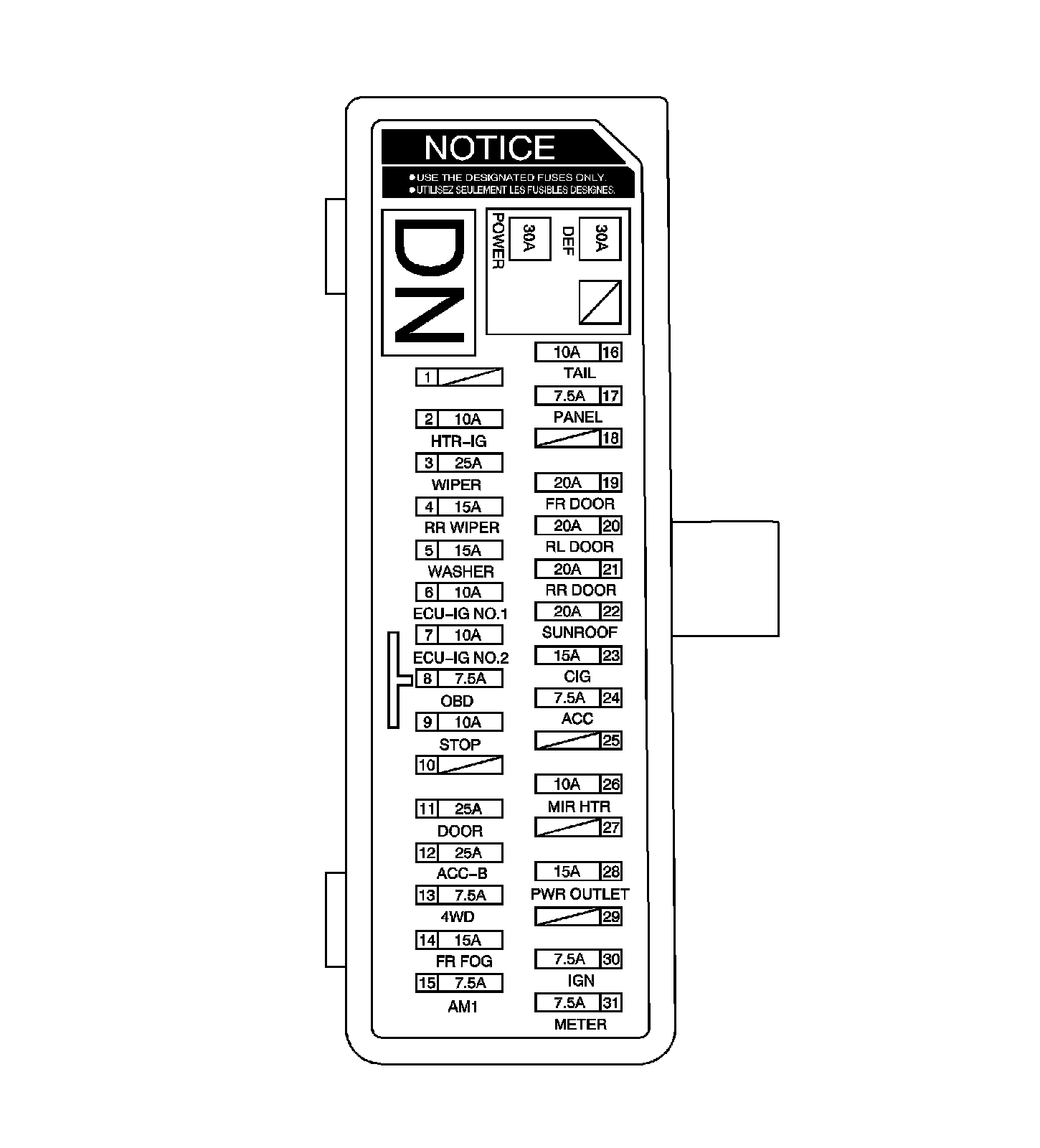

Electrical Center Identification Views

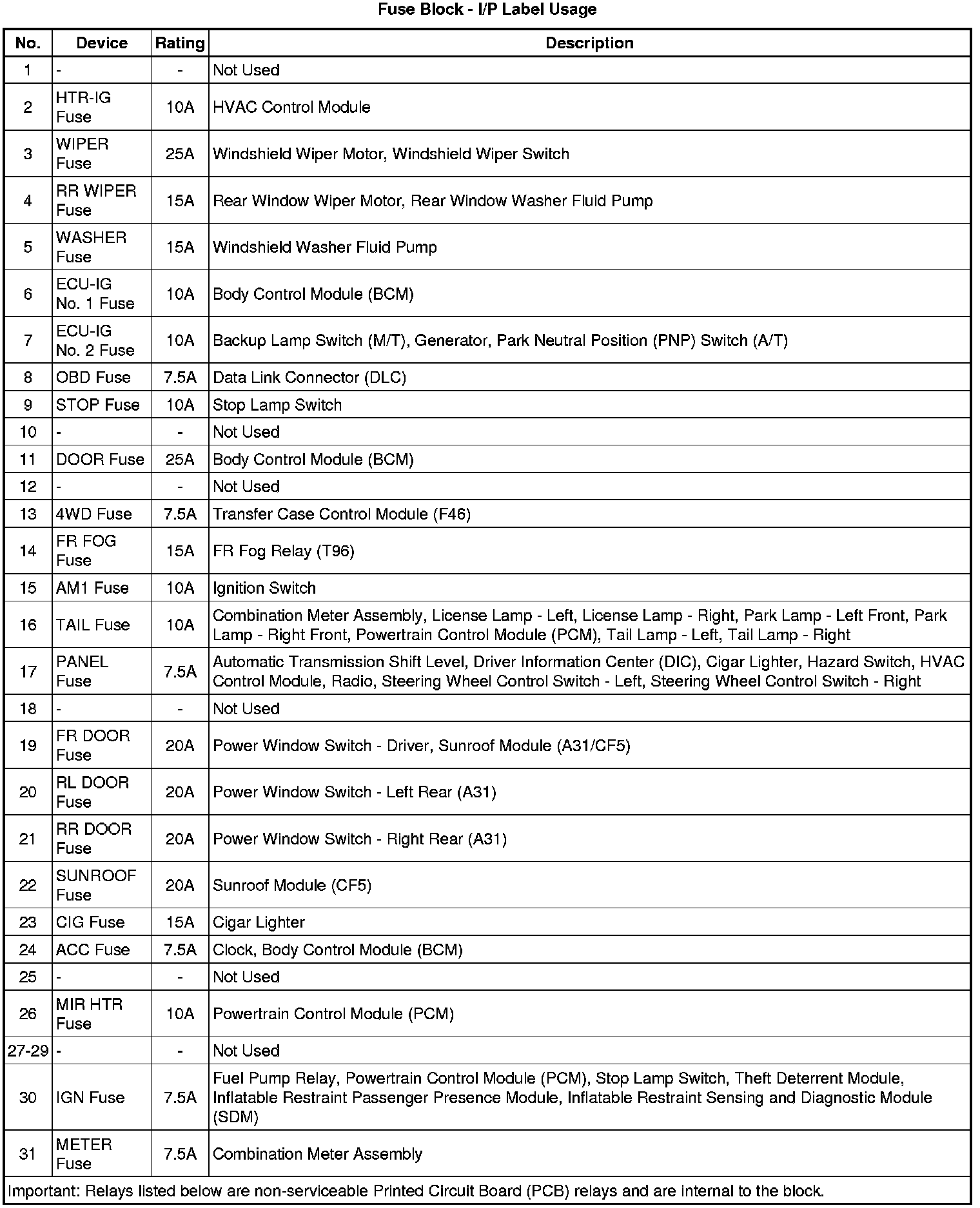

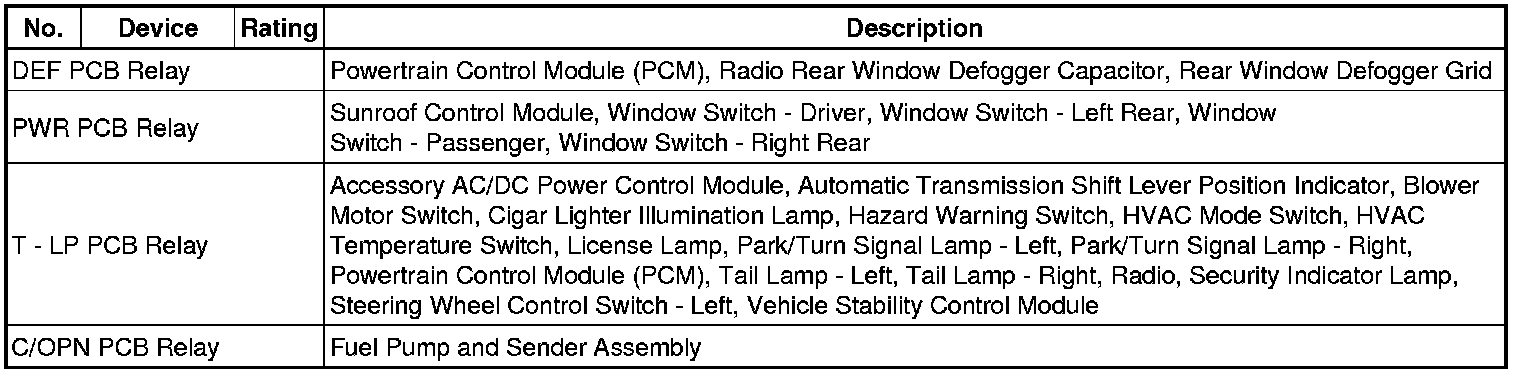

Fuse Block - I/P Label
