Shock Sensor, Antitheft




Component Connector End Views

Theft Deterrent Shock Sensor

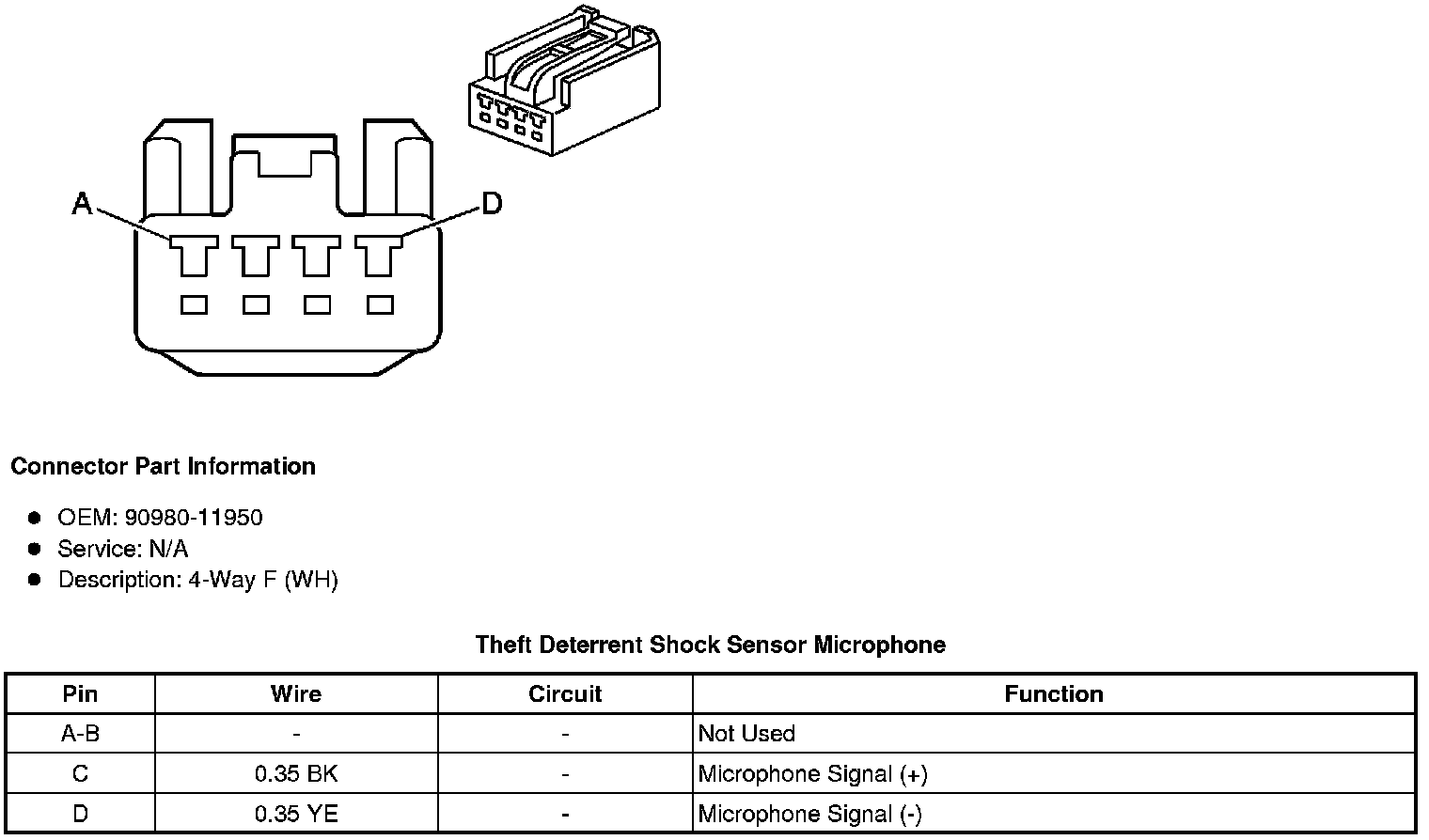

Theft Deterrent Shock Sensor Microphone
