System Diagram

ENGINE CONTROLS SCHEMATICS

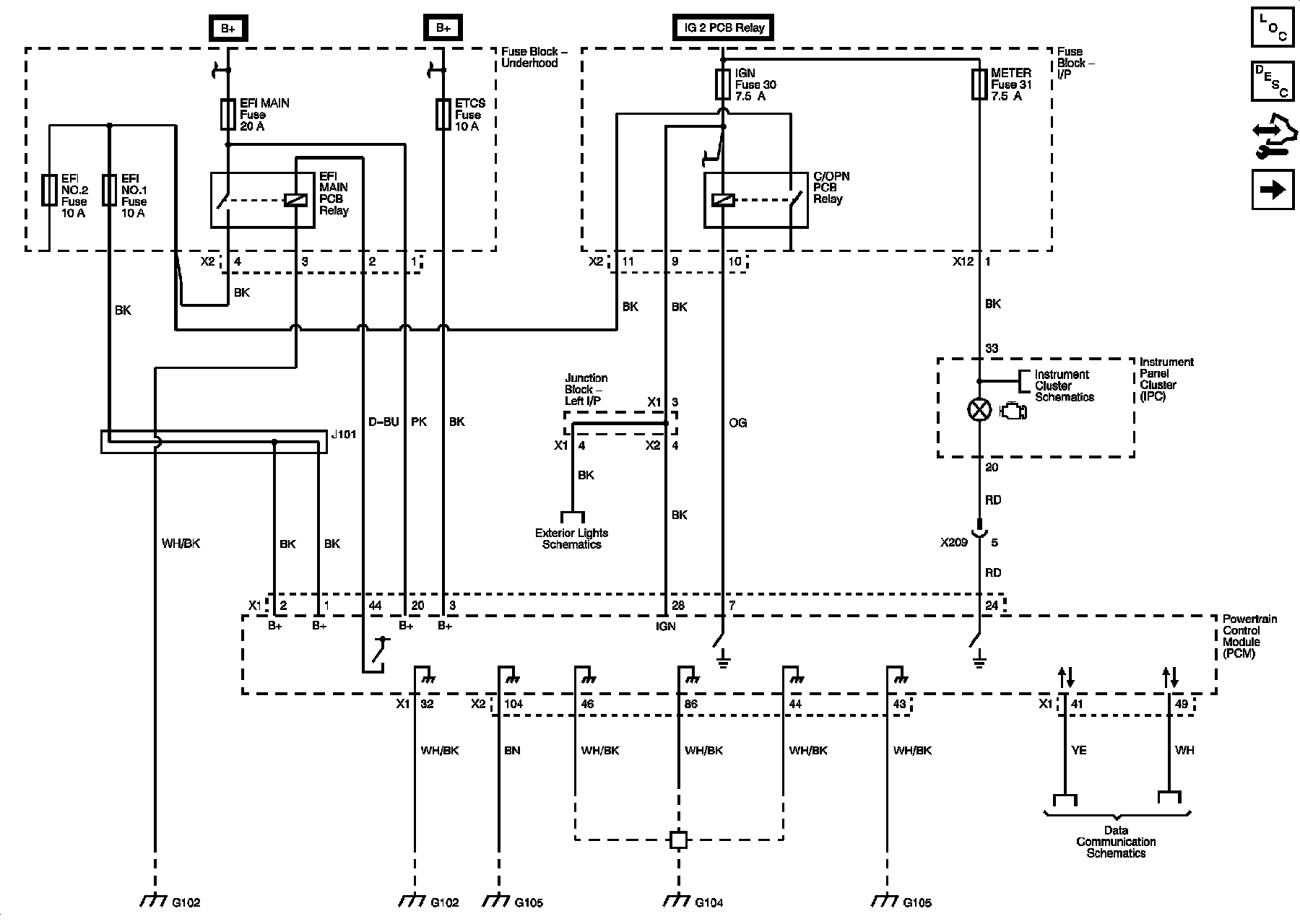

Power, Ground, Serial Data, and MIL







Engine Data Sensors - MAF and ECT

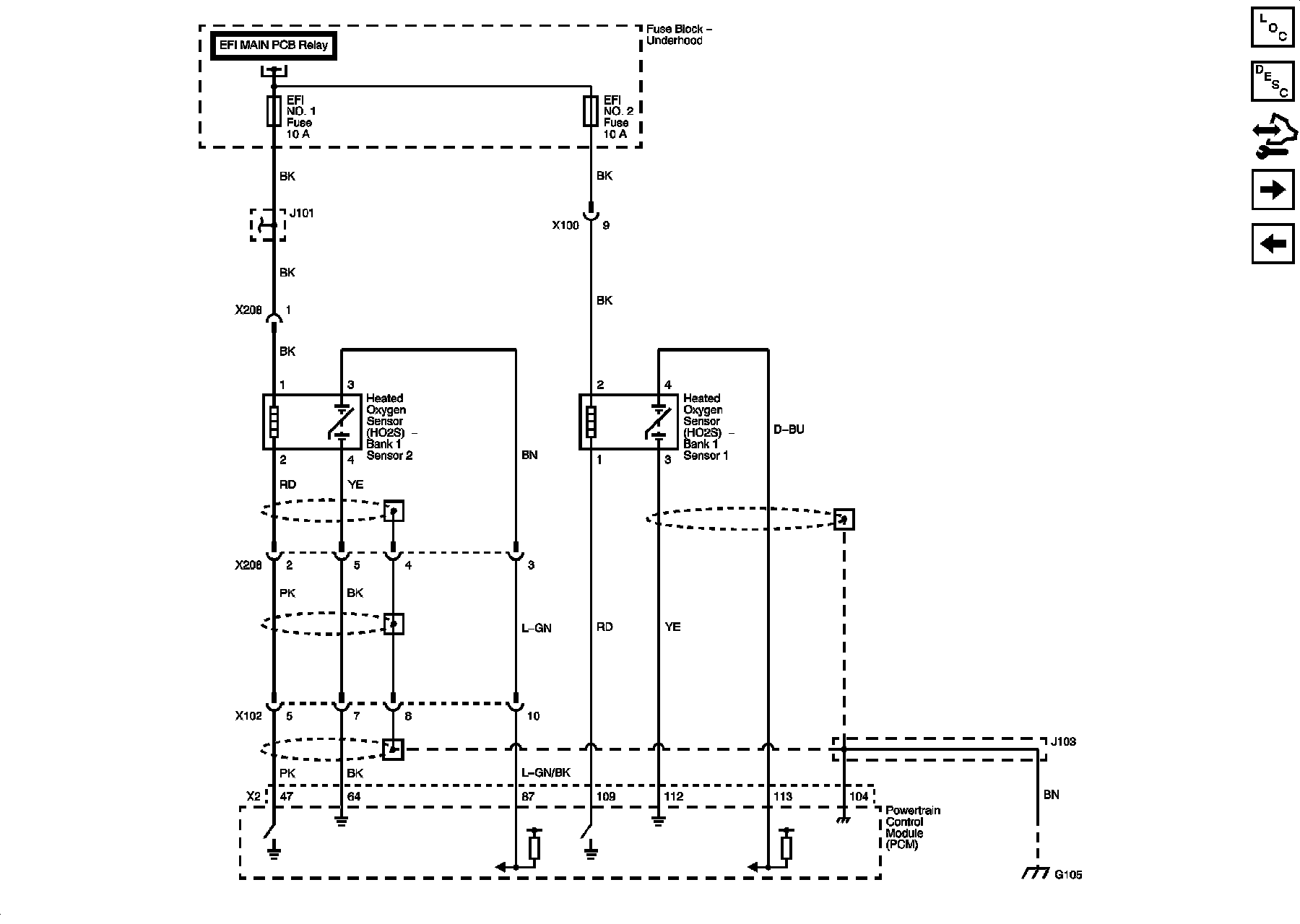

Engine Data Sensors - Oxygen Sensors







Electronic Throttle Controls

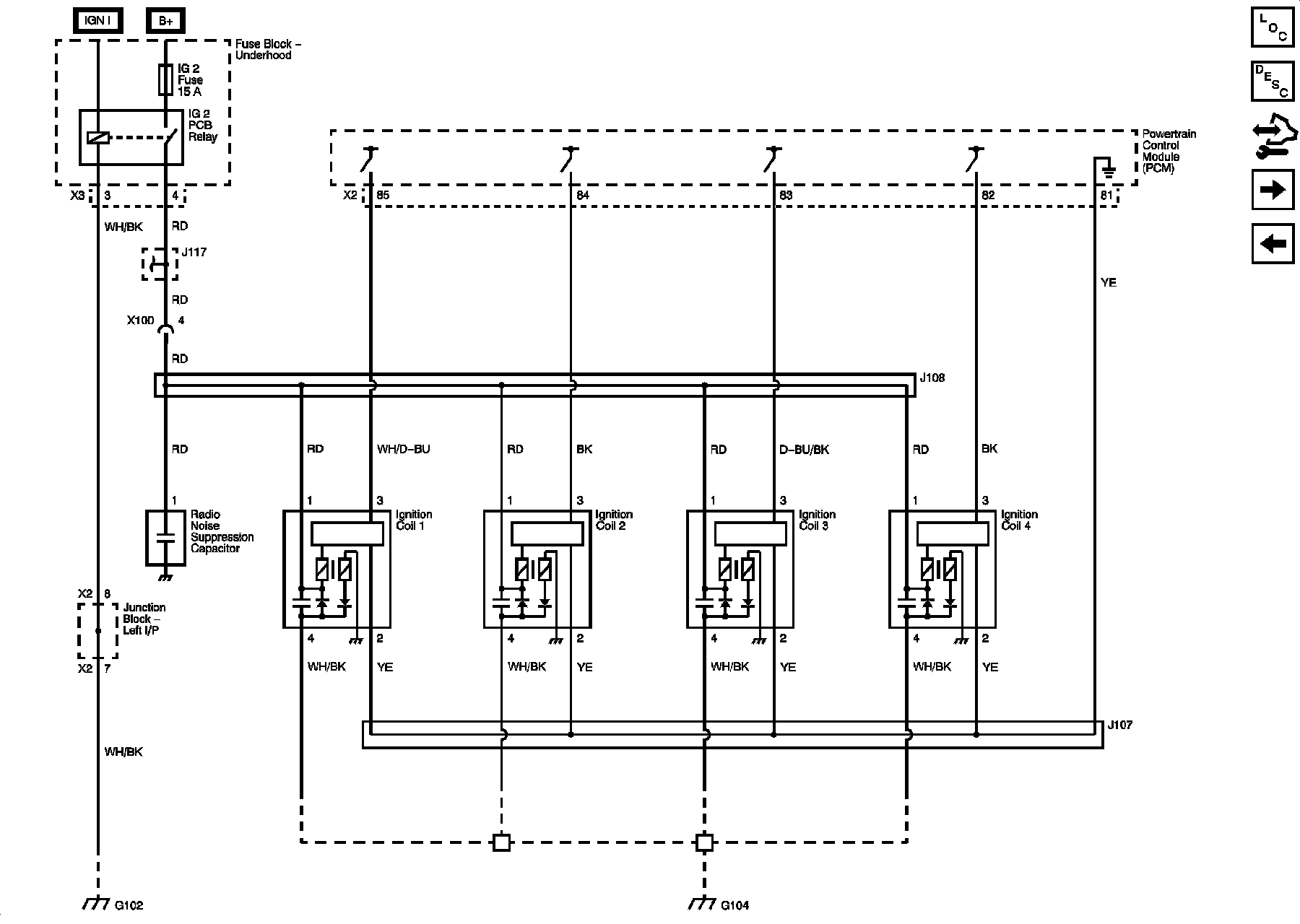

Ignition System







Ignition Controls - Sensors







Fuel Pump and Fuel Injectors







Fuel Controls - EVAP Controls

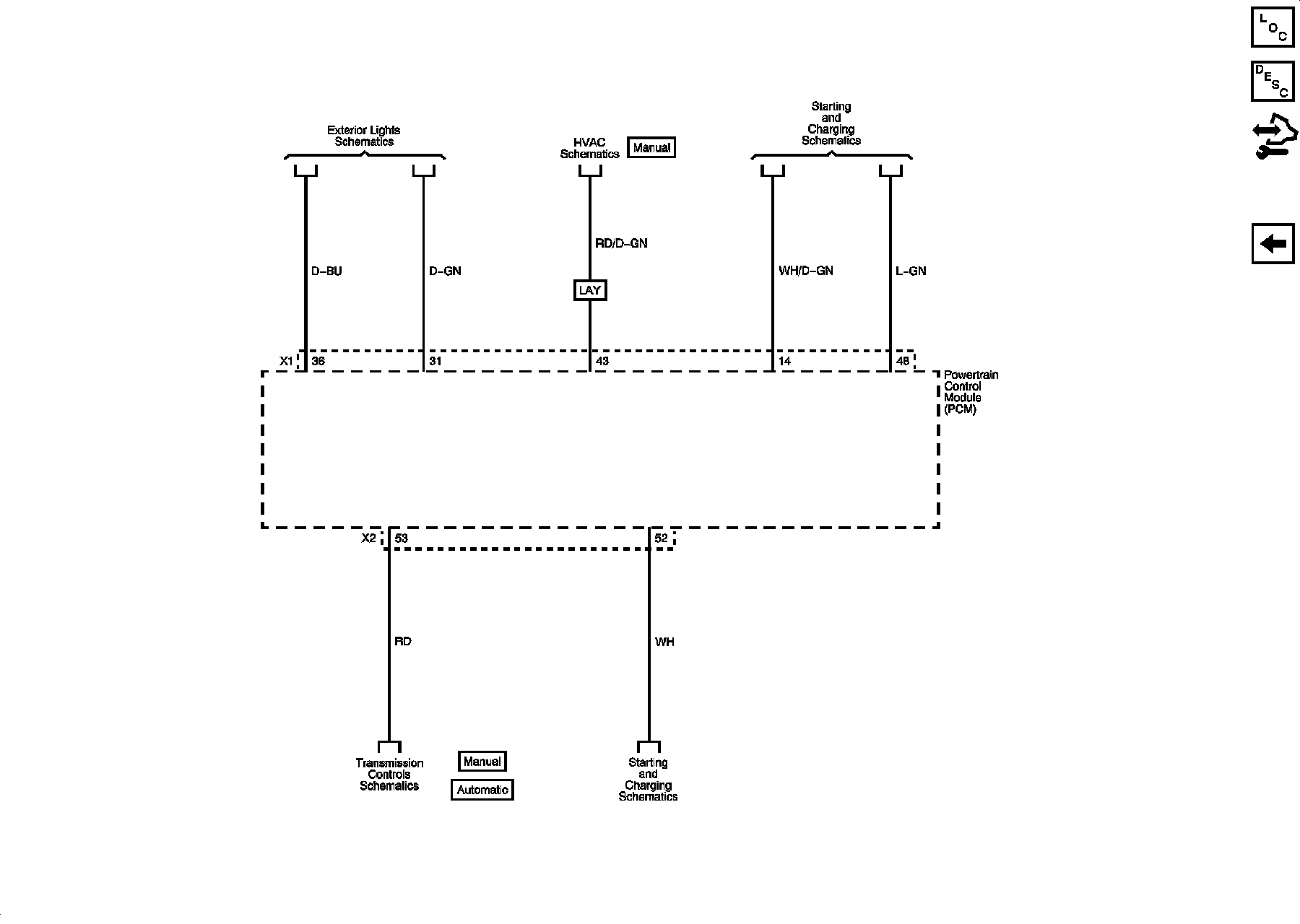

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
