MVA 4-Speed Automatic Transmission




Automatic Transmission Controls Schematics

Power, PNP Switch, Shift Lever, Sensors

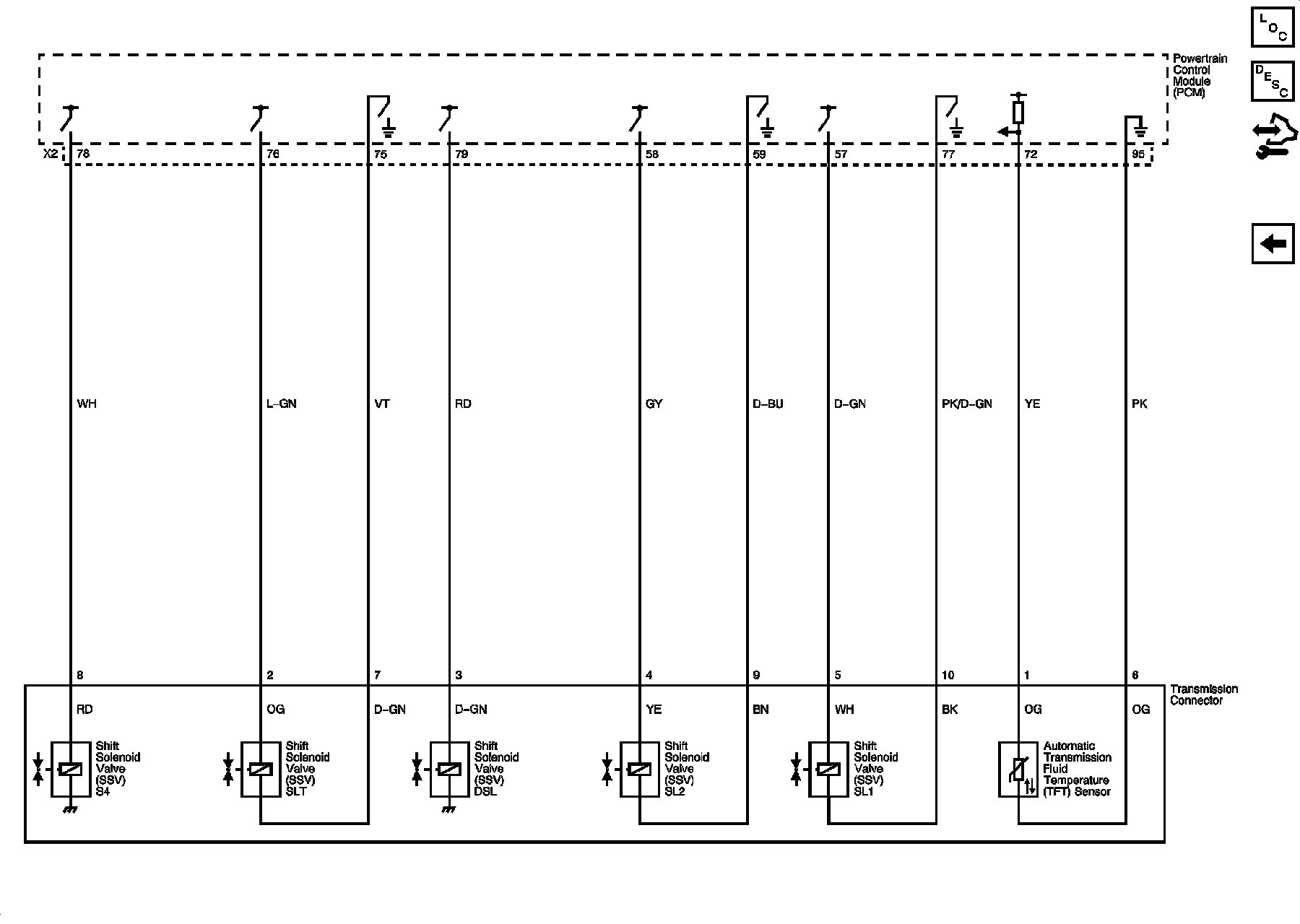

Transaxle Controls
