MVD 5-Speed Automatic Transmission




Automatic Transmission Controls Schematics

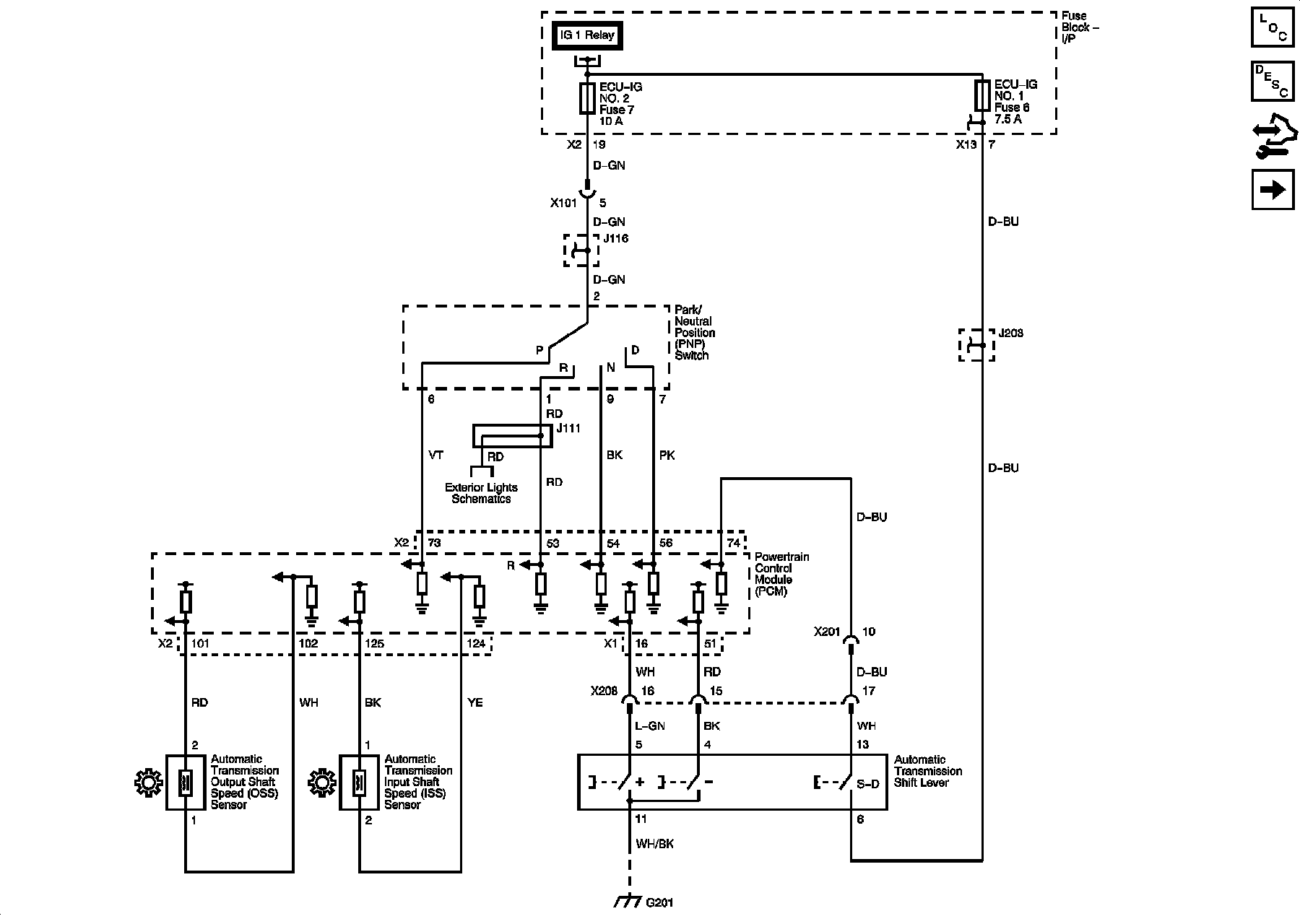

Power, Ground, PNP Switch, Shift Lever

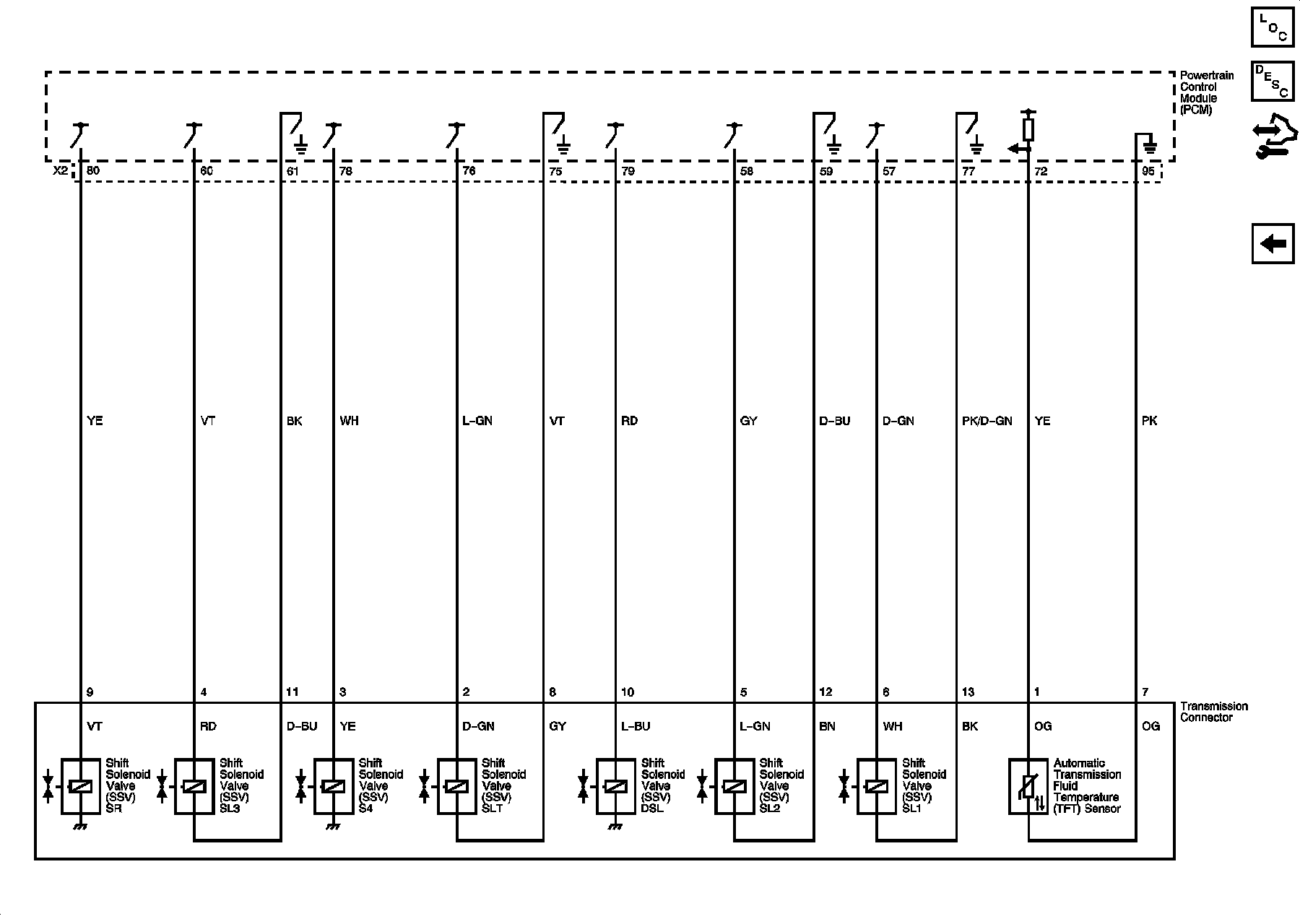

Transaxle Controls
