Master Splice List
Master Splice List
Master Electrical Component List

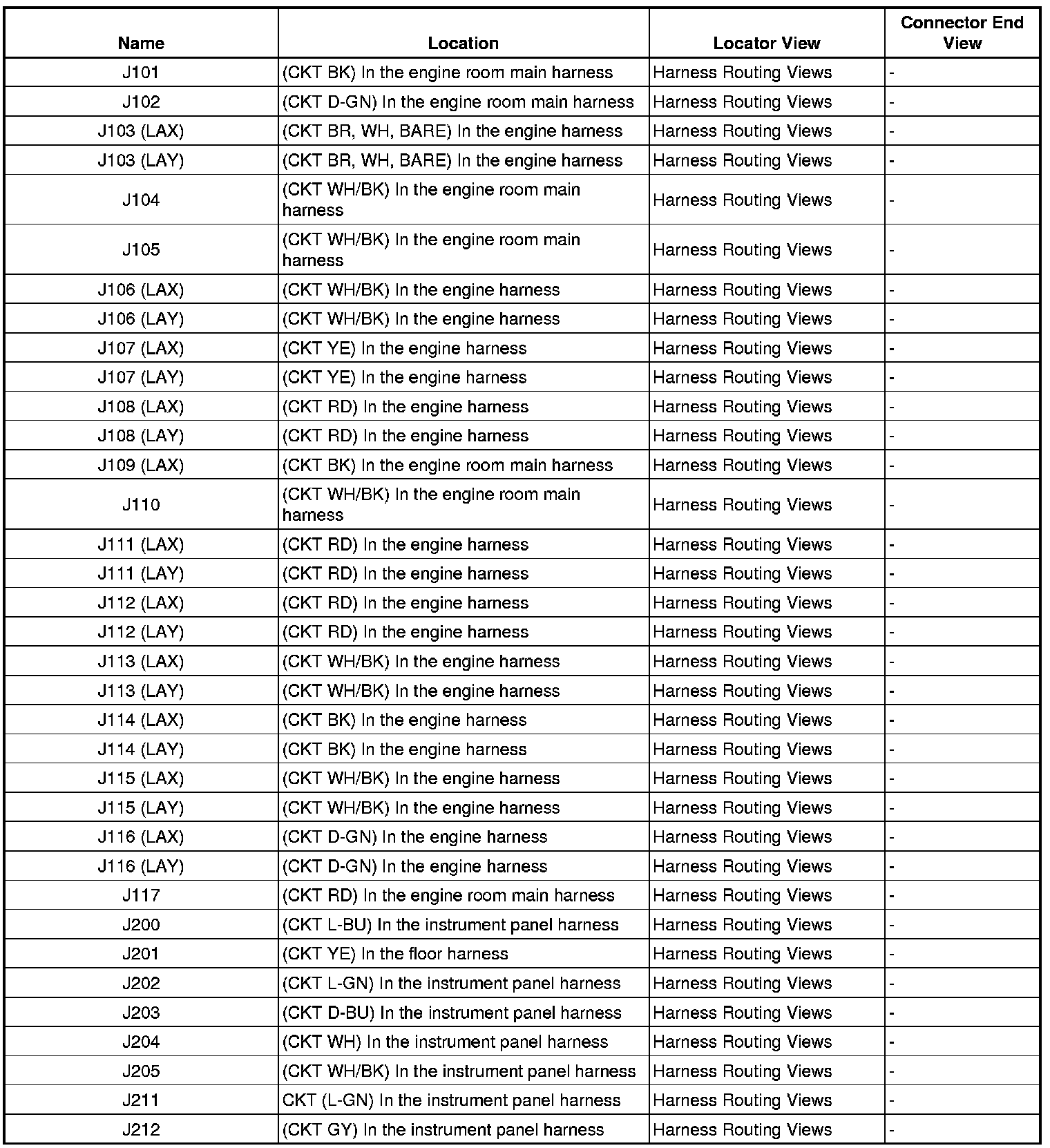

J101 - J212:

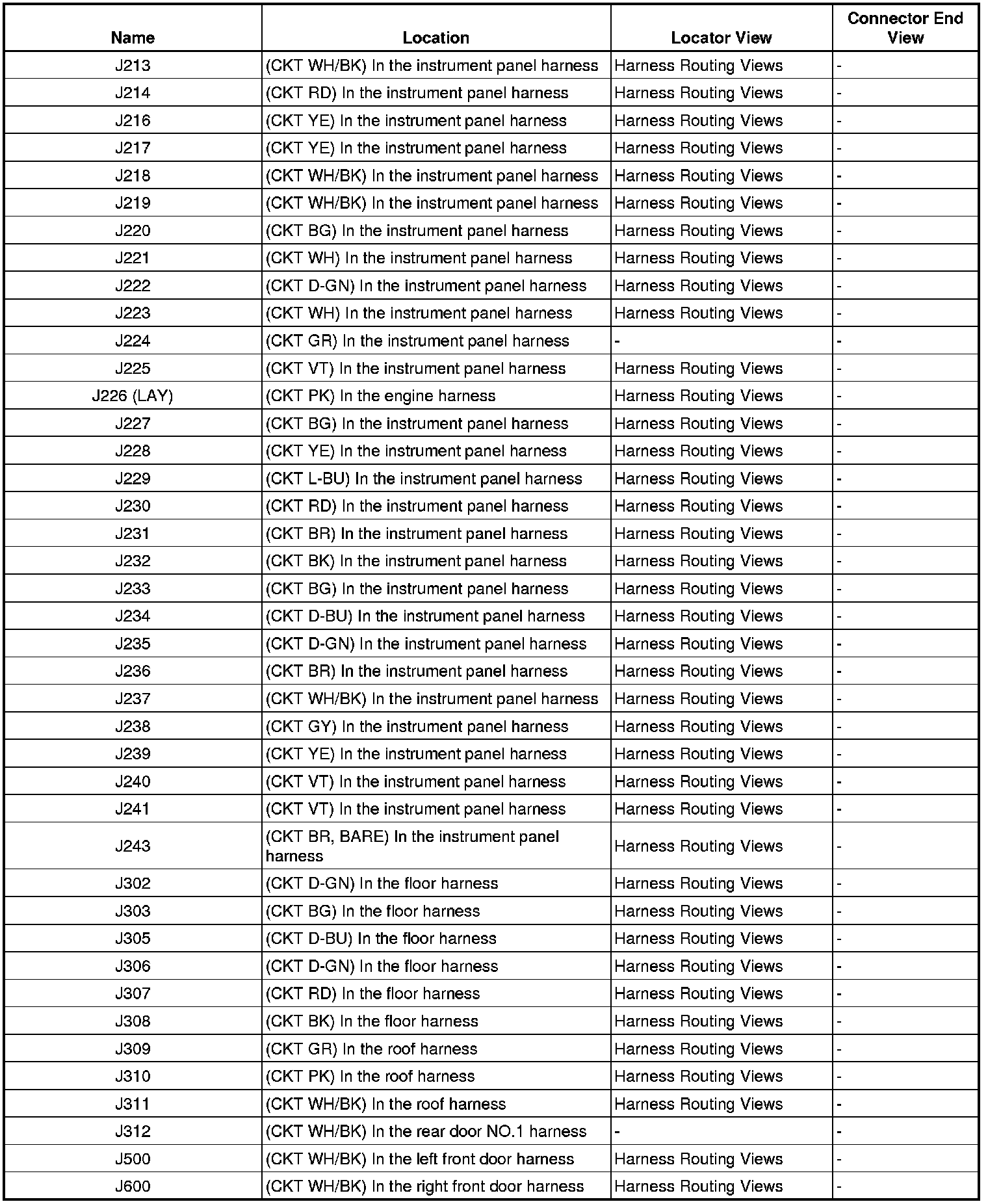

J213 - J600:

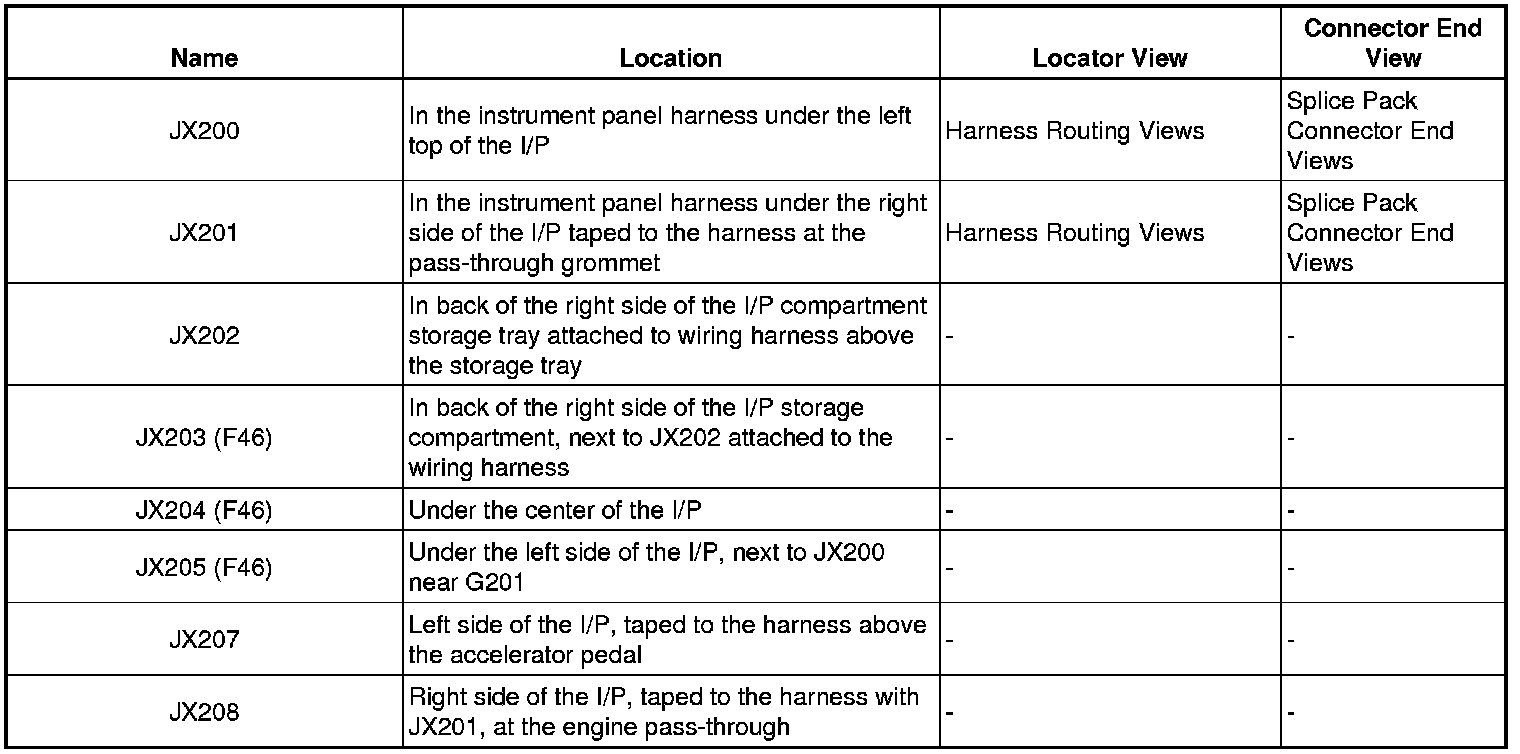

JX200 - JX208:
