Cylinder Head Assembly: Specifications

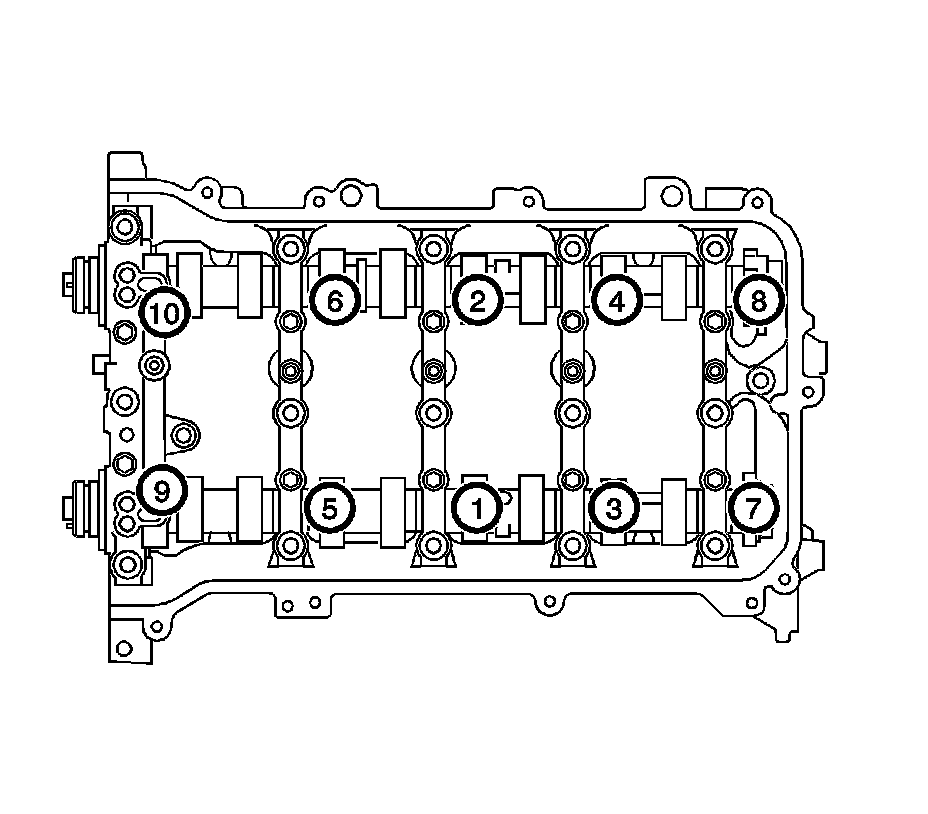

Cylinder Head Bolt
1st 49 Nm (36 lb ft)
2nd Turn 90 degrees
3rd Turn 45 degrees

Cylinder Head Bolt Re-use

Standard Bolt Length 146.8-148.2 mm (5.7795-5.8346 in)
Maximum Bolt Length 149.2 mm (5.874 in)

Cylinder Head Cover Bolt 10 Nm (7 lb ft)

Stud Bolt to Cylinder Head
Bolt A 9.5 Nm (84 1b in)
Bolt B 9.5 Nm (84 1b in)

INTAKE MANIFOLD

Intake Manifold Nut 28 Nm (21 lb ft)

CAMSHAFT BEARING CAP

Camshaft Bearing Cap Bolt to Camshaft Housing 16 Nm (12 lb ft)
Camshaft Bearing Cap Bolt to Cylinder Head 27 Nm (20 lb ft)

CAMSHAFT PULLY/GEAR

Camshaft Timing Exhaust Gear Bolt
With SST 39 Nm (29 lb ft)
Without SST 54 Nm (40 lb ft)

Camshaft Timing Gear Assembly Bolt 54 Nm (40 lb ft)

EXHAUST MANIFOLD

Exhaust Manifold Nut 21 Nm (16 lb ft)
Exhaust Manifold Stay Bolt 43 Nm (32 lb ft)
Exhaust Manifold Stay Nut 43 Nm (32 lb ft)
