Driver/Vehicle Information Display: Service and Repair

Information Center Telltale Assembly Replacement

Removal Procedure

1. Remove the center instrument trim. Refer to Instrument Panel Center Trim Panel Replacement (Service and Repair).

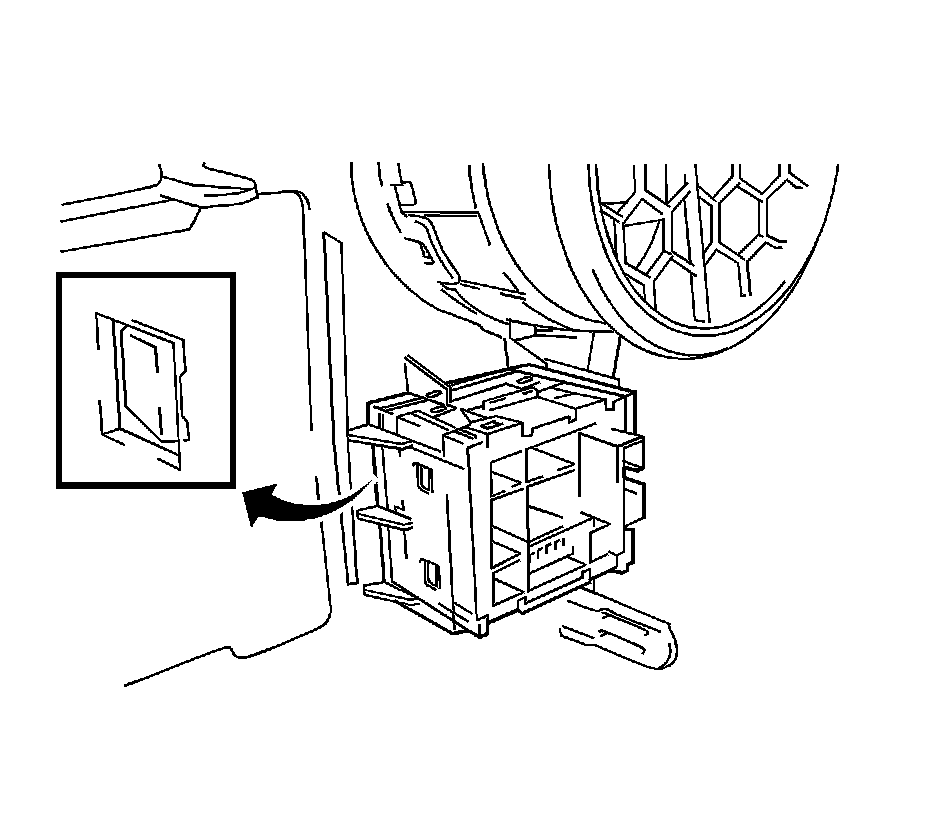

2. Disengage the 4 claws and remove the telltale light assembly.

Installation Procedure




1. Engage the 4 claws and install the telltale light assembly.
2. Install the center instrument trim. Refer to Instrument Panel Center Trim Panel Replacement (Service and Repair).
