Oil Pan, Engine
Oil Pan (Lower)No.2 Oil Pan Sub-Assembly Bolt 10 Nm (7 lb ft)
Oil Pan Drain Plug 37 Nm (27 lb ft)

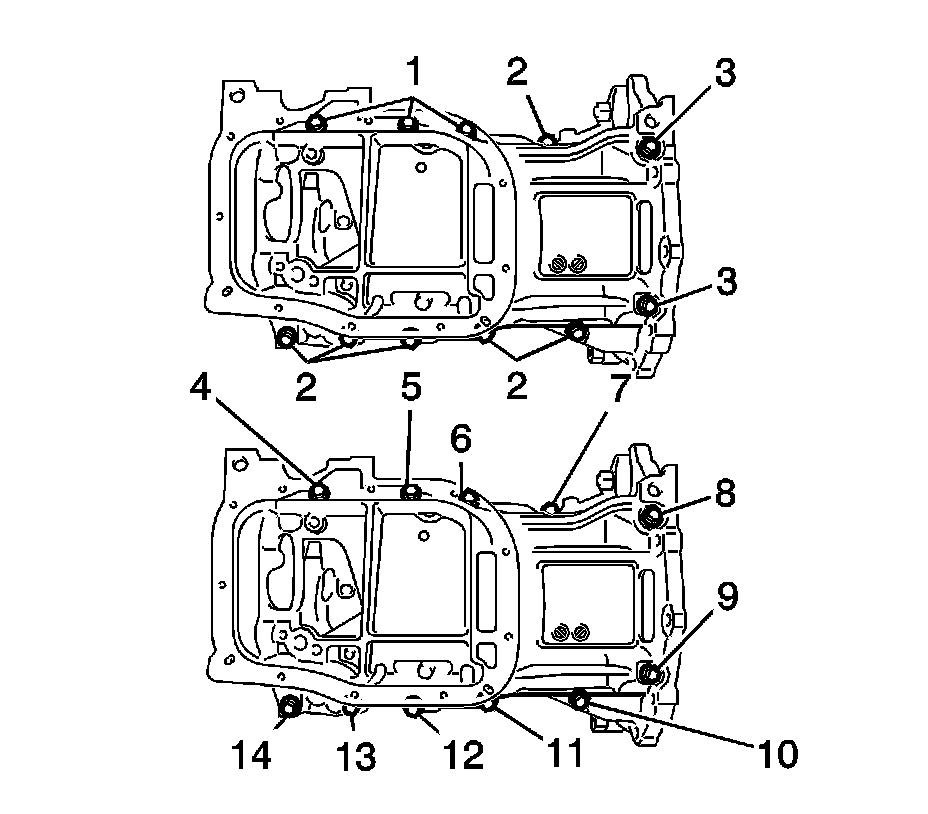

Oil Pan (Upper)
Bolts 4-14 21 Nm (16 lb ft)
Check the torque for bolts 1 and 2 and tighten to 21 Nm (16 lb ft)
No.2 Oil Pan Sub-Assembly Bolt 10 Nm (7 lb ft)
Oil Pan Drain Plug 37 Nm (27 lb ft)
Oil Pan (Upper)
Bolts 4-14 21 Nm (16 lb ft)
Check the torque for bolts 1 and 2 and tighten to 21 Nm (16 lb ft)
