Windshield Washer Pump: Diagrams




Component Connector End Views

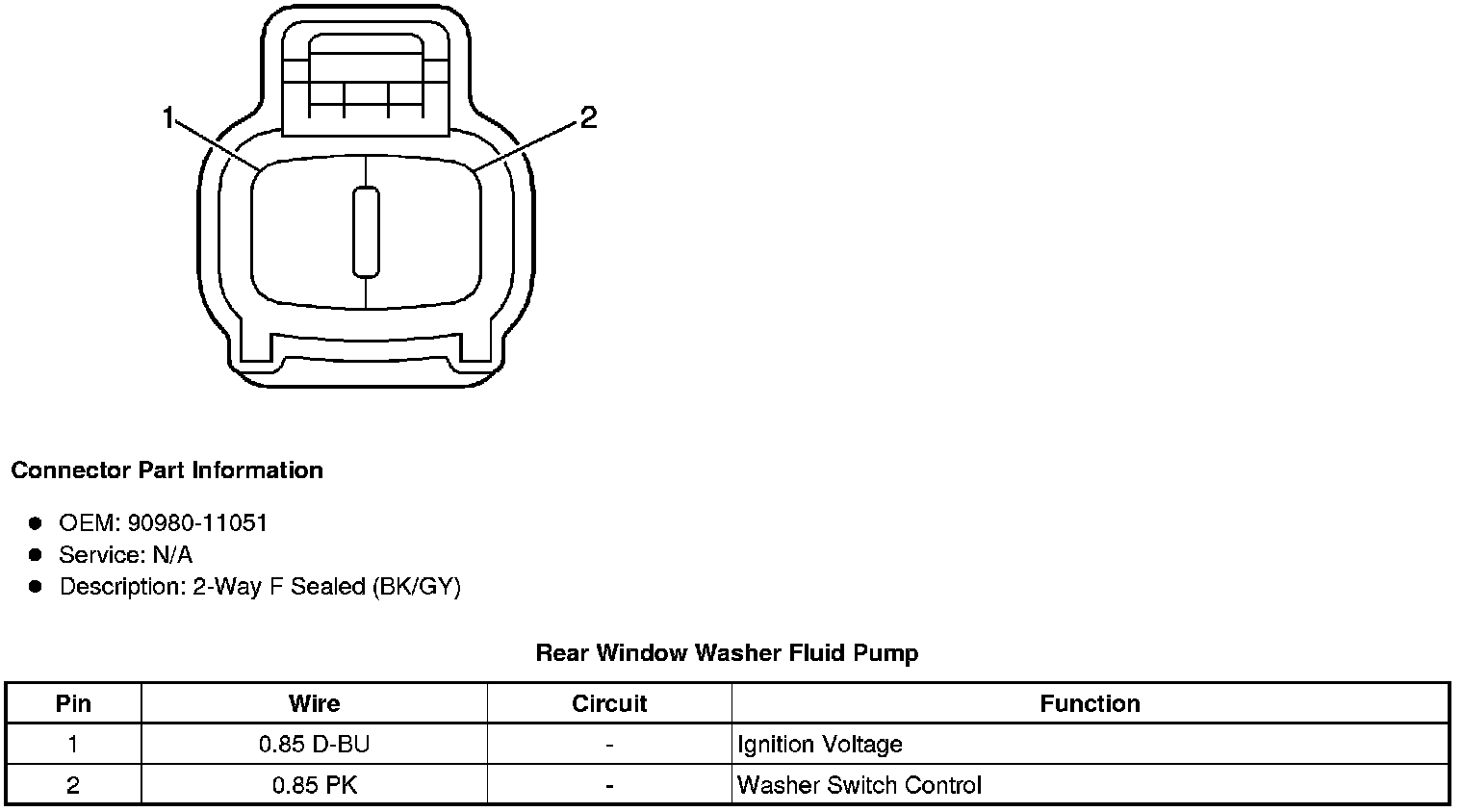

Rear Window Washer Fluid Pump

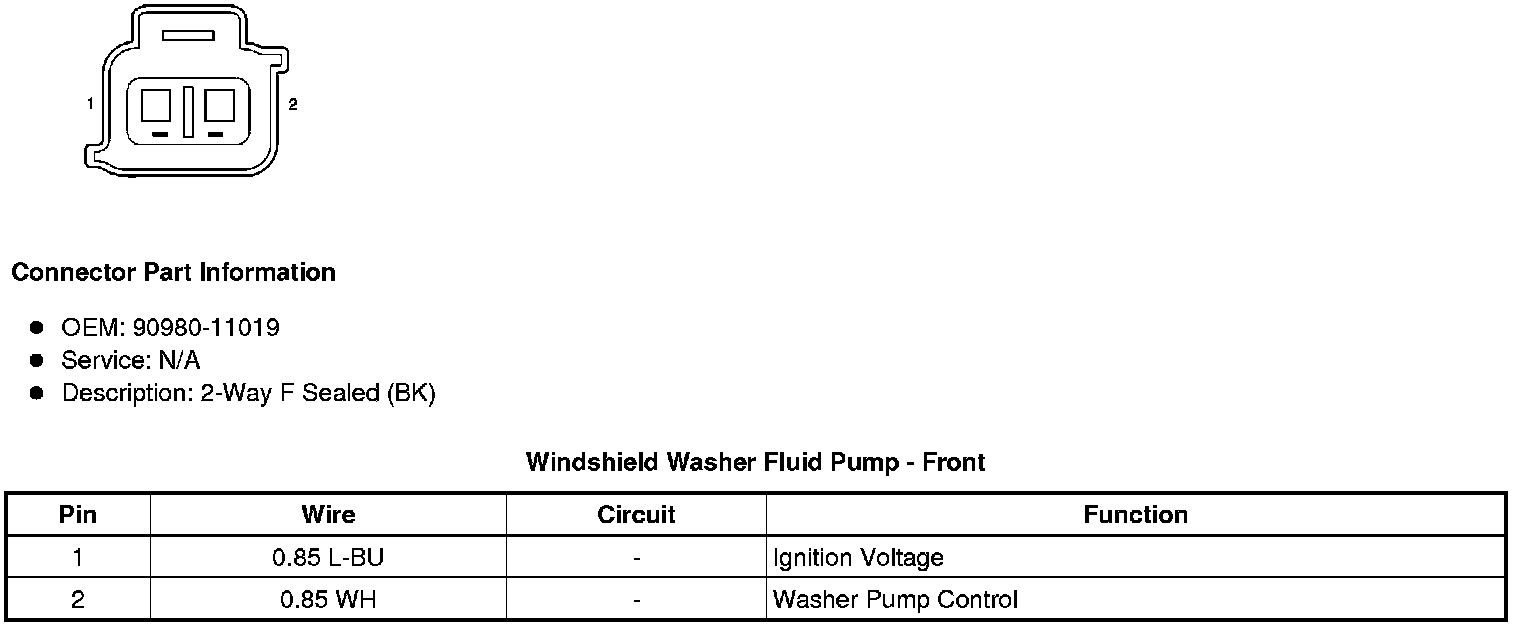

Windshield Washer Fluid Pump - Front
