Recall - Loss of Power Brake Assist in Extreme Cold: Overview
SAFETYBulletin No.: 09199A
Date: June 21, 2010
Subject: 09199A - Loss of Power Brake Assist in Extreme Cold Weather
Models:
2009-2010 Pontiac Vibe
With 1.8L Engine (RPO LAY)
Registered in Canada, Alaska, Colorado, Idaho, Illinois, Iowa, Kansas, Maine, Michigan, Minnesota, Montana, Nebraska, Nevada, New Hampshire, New York, North Dakota, South Dakota, Vermont, Wisconsin, Wyoming
Supercede:
The service procedure in this bulletin has been revised to include a statement to ensure the air intake connector is properly aligned with the throttle body to prevent a whistling noise during light throttle application. Please discard all copies of bulleitn 09199, issued October 2009.
This Safety Recall involves 2009 and certain 2010 model year Pontiac Vibe vehicles equipped with a 1.8L engine, and registered in areas with extreme cold temperatures (see areas listed above). 2009 and certain 2010 model year Pontiac Vibe vehicles equipped with a 1.8L engine that are registered outside of these extreme cold areas are covered under Customer Advisory 09222.
Condition
General Motors has decided that a defect, which relates to motor vehicle safety, exists in certain 2009-2010 model year Pontiac Vibe vehicles equipped with a 1.8L engine (RPO LAY), and registered in Canada, Alaska, Colorado, Idaho, Illinois, Iowa, Kansas, Maine, Michigan, Minnesota, Montana, Nebraska, Nevada, New Hampshire, New York, North Dakota, South Dakota, Vermont, Wisconsin, and Wyoming. On some of these vehicles, the extreme cold temperatures (-31ºC/-22ºF) may freeze condensation on the brake vacuum intake manifold suction port. This could result in a loss of power brake assist, and greater brake pedal force and a longer distance may be required to stop the vehicle. If stopping distance is limited, a crash could occur without prior warning.
Correction
Dealers are to modify the brake vacuum line.
Vehicles Involved

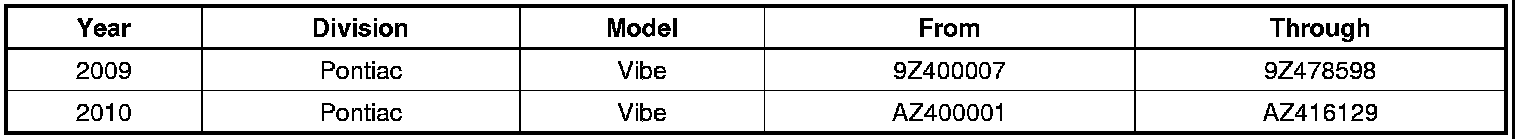

Involved are certain 2009-2010 model year Pontiac Vibe vehicles equipped with a 1.8L engine (RPO LAY), and registered in Canada, Alaska, Colorado, Idaho, Illinois, Iowa, Kansas, Maine, Michigan, Minnesota, Montana, Nebraska, Nevada, New Hampshire, New York, North Dakota, South Dakota, Vermont, Wisconsin, and Wyoming and built within these VIN breakpoints:
Important
Dealers are to confirm vehicle eligibility prior to beginning repairs by using Investigate Vehicle History. Not all vehicles within the above breakpoints may be involved.
For dealers with involved vehicles, a listing with involved vehicles containing the complete vehicle identification number, customer name, and address information has been prepared and will be provided through the GM GlobalConnect Recall Reports. Dealers will not have a report available if they have no involved vehicles currently assigned.
The listing may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this recall.
Parts Information
Parts required to complete this recall are to be obtained from General Motors Service and Parts Operations (GMSPO). Please refer to your "involved vehicles listing" before ordering parts. Normal orders should be placed on a DRO = Daily Replenishment Order. In an emergency situation, parts should be ordered on a CSO = Customer Special Order.
Courtesy Transportation - For US and Canada
The General Motors Courtesy Transportation program is intended to minimize customer inconvenience when a vehicle requires a repair that is covered by the New Vehicle Limited Warranties. The availability of courtesy transportation to customers whose vehicles are within the warranty coverage period and involved in a product program is very important in maintaining customer satisfaction. Dealers are to ensure that these customers understand that shuttle service or some other form of courtesy transportation is available and will be provided at no charge. Dealers should refer to the General Motors Service Policies and Procedures Manual for Courtesy Transportation guidelines.
Claim Information
1. Submit a claim using the table below.
2. Courtesy Transportation - Submit as Net Item under the repair labor code.
Customer Notification - For US and Canada
General Motors will notify customers of this recall on their vehicle (see copy of customer letter included with this bulletin).
Customer Notification - For Export
Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the attached sample letter.
Dealer Recall Responsibility - For US and Export (US States, Territories, and Possessions)
The US National Traffic and Motor Vehicle Safety Act provides that each vehicle that is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the US National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.
Dealer Recall Responsibility - All
All unsold new vehicles in dealers' possession and subject to this recall must be held and inspected/repaired per the service procedure of this recall bulletin before customers take possession of these vehicles.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this recall enters your vehicle inventory, or is in your dealership for service in the future, you must take the steps necessary to be sure the recall correction has been made before selling or releasing the vehicle.
