System Specifications

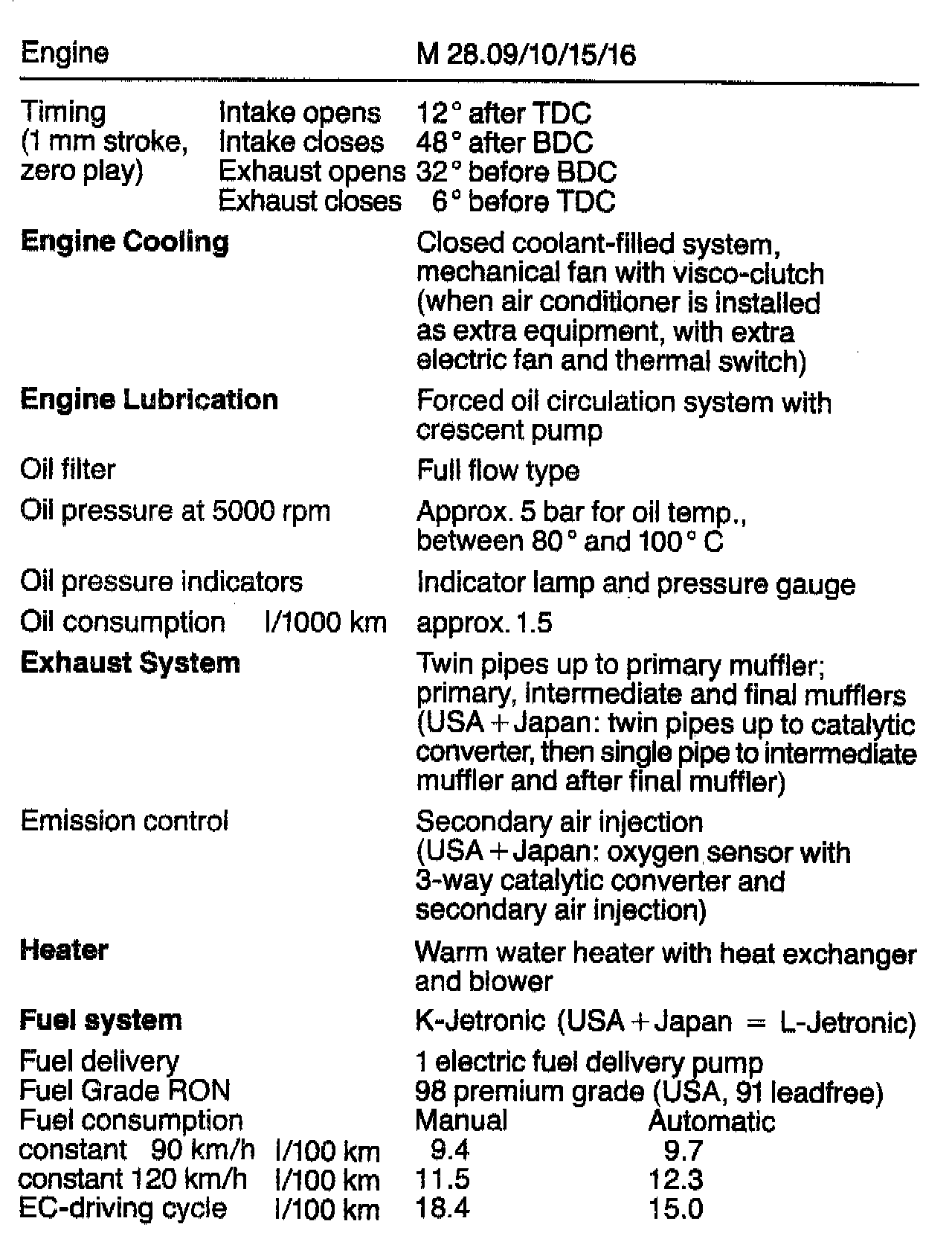

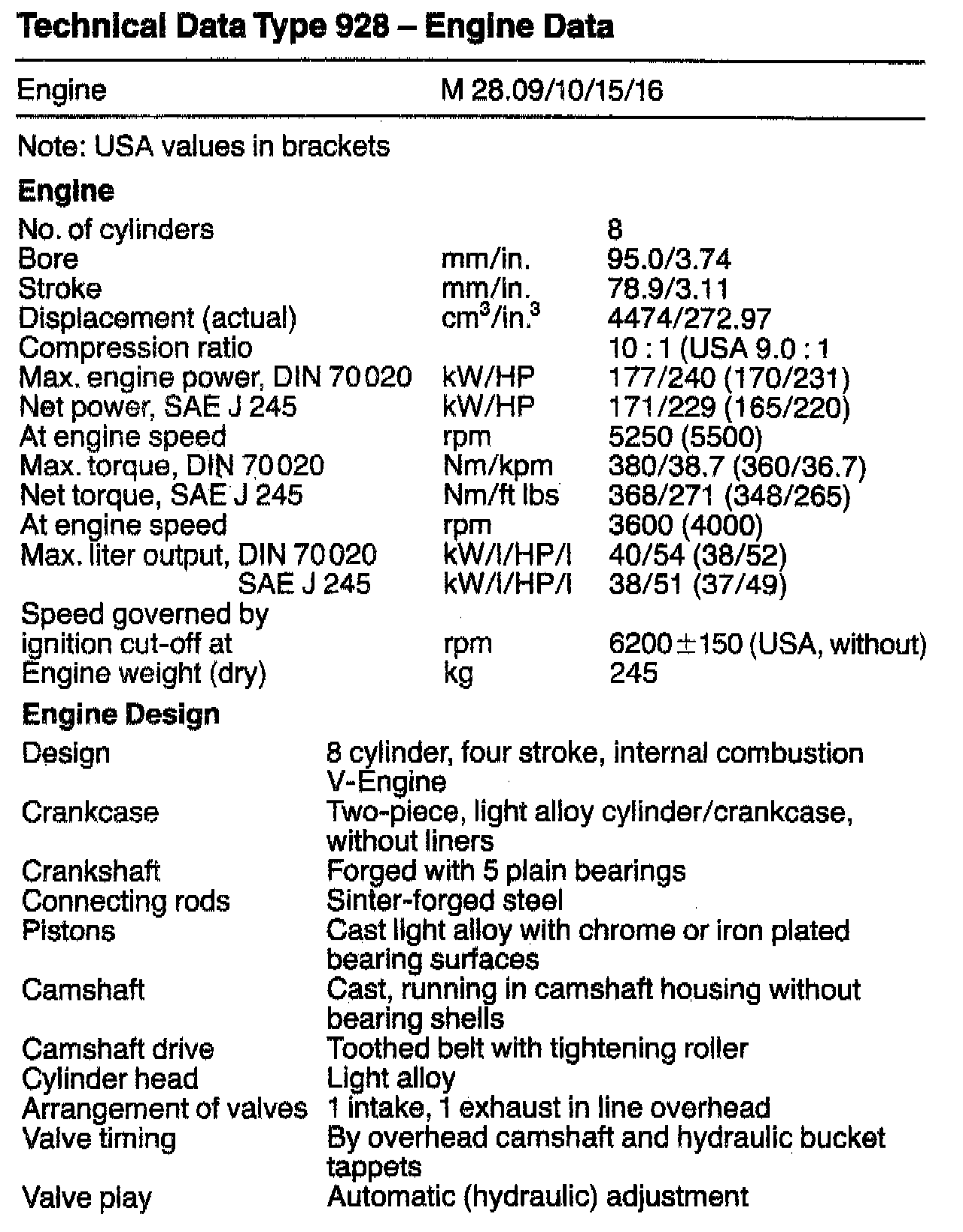

GENERAL SPECIFICATIONS













CRANKSHAFT SPECIFICATIONS

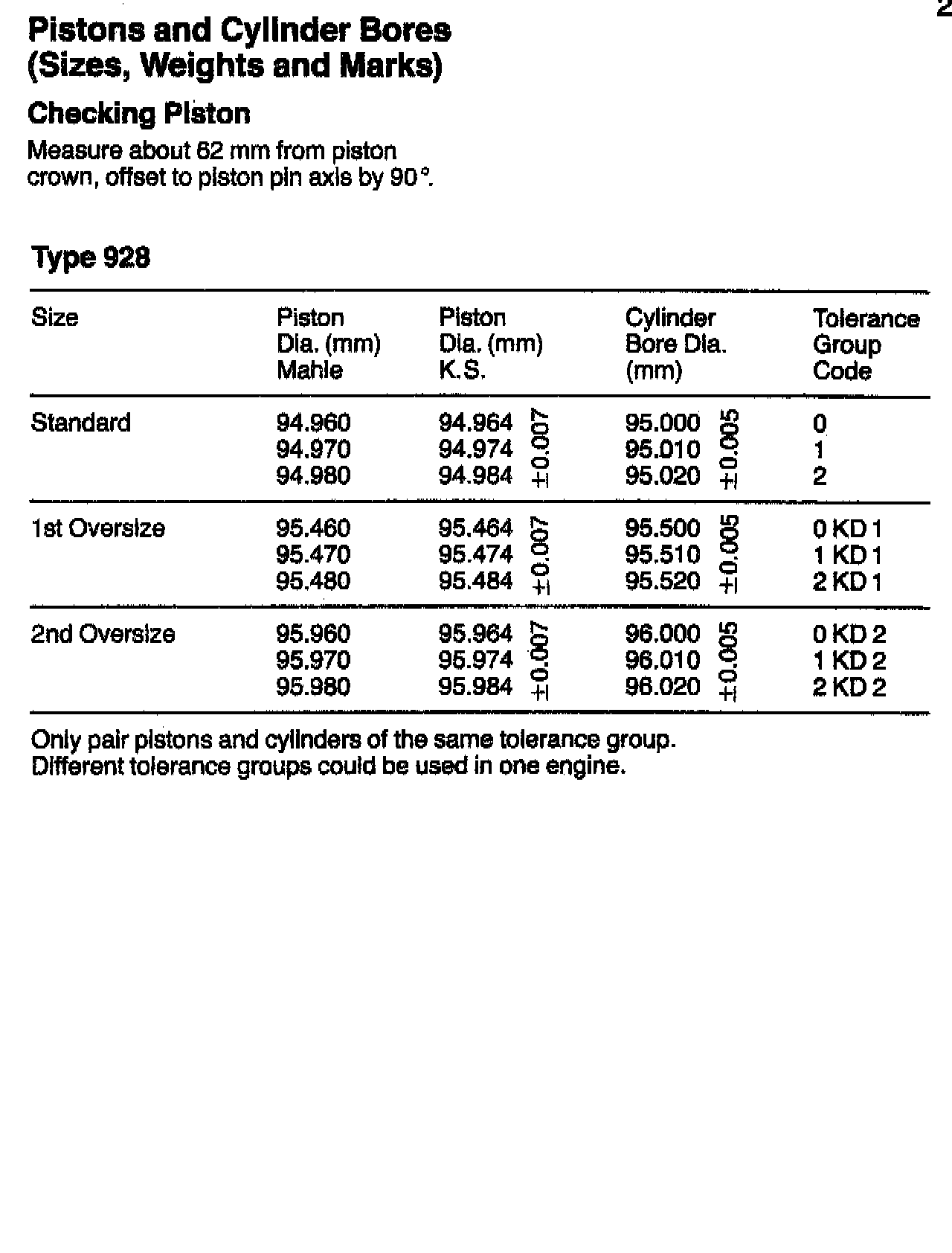

PISTON SPECIFICATIONS

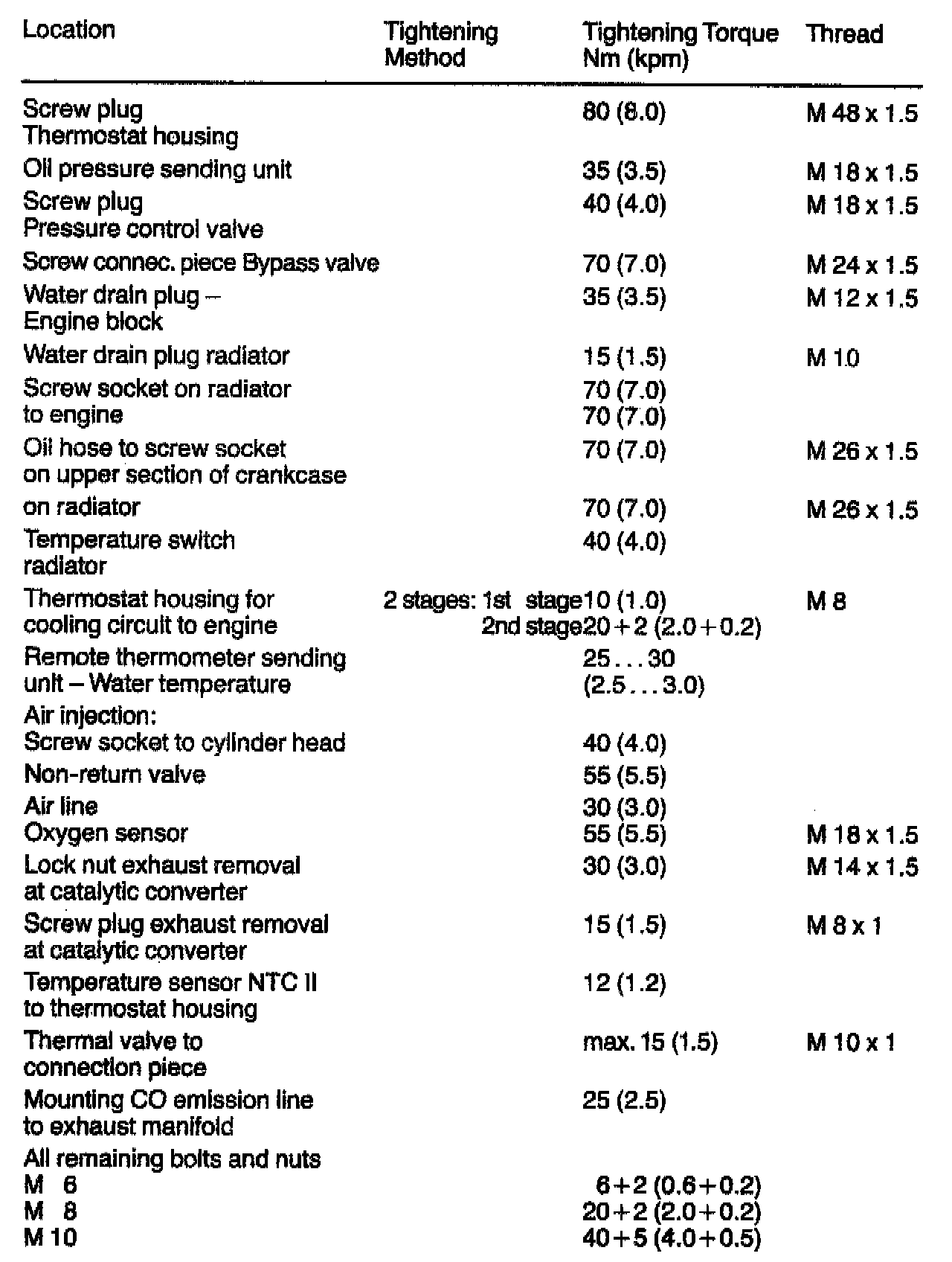

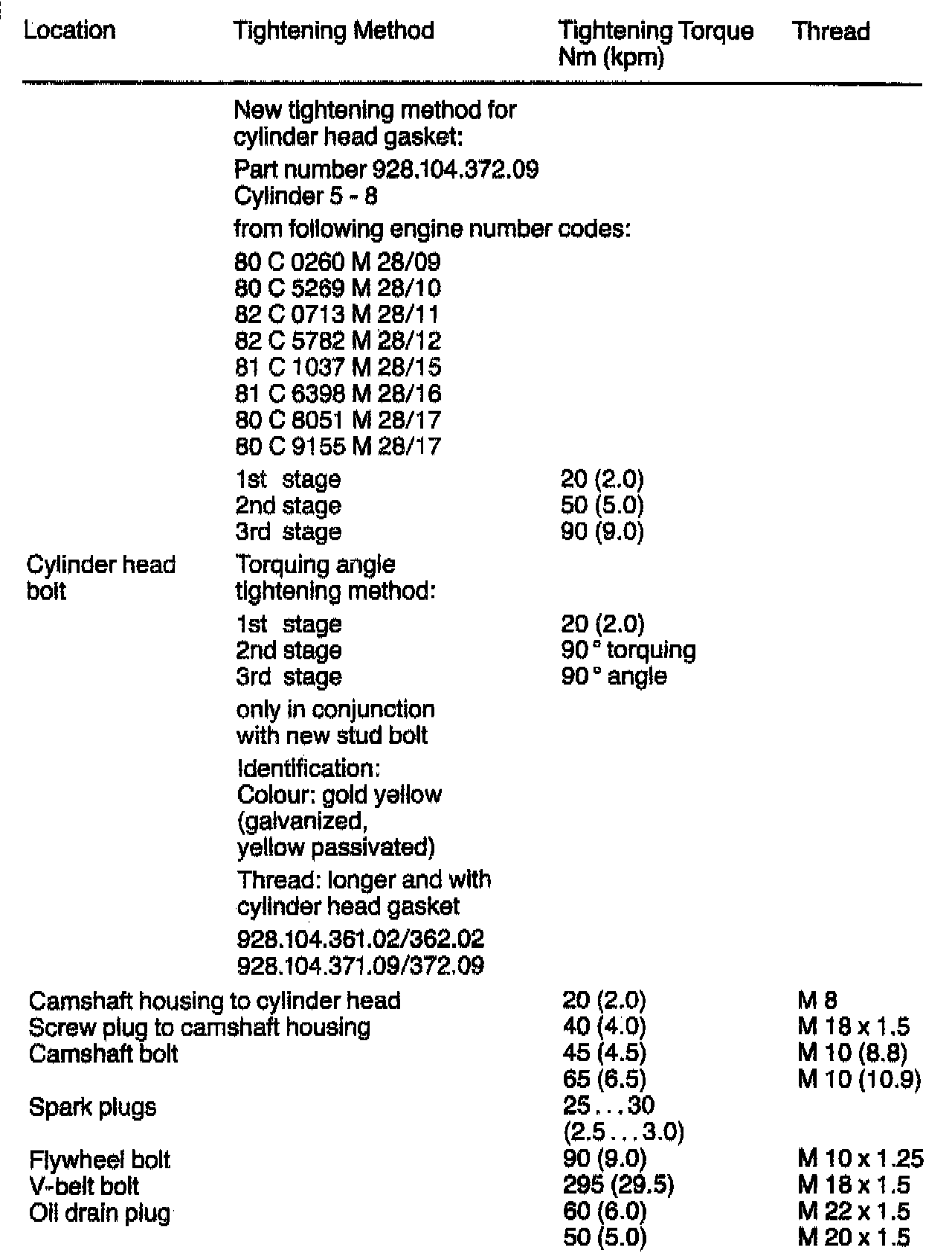

TIGHTENING SPECIFICATIONS

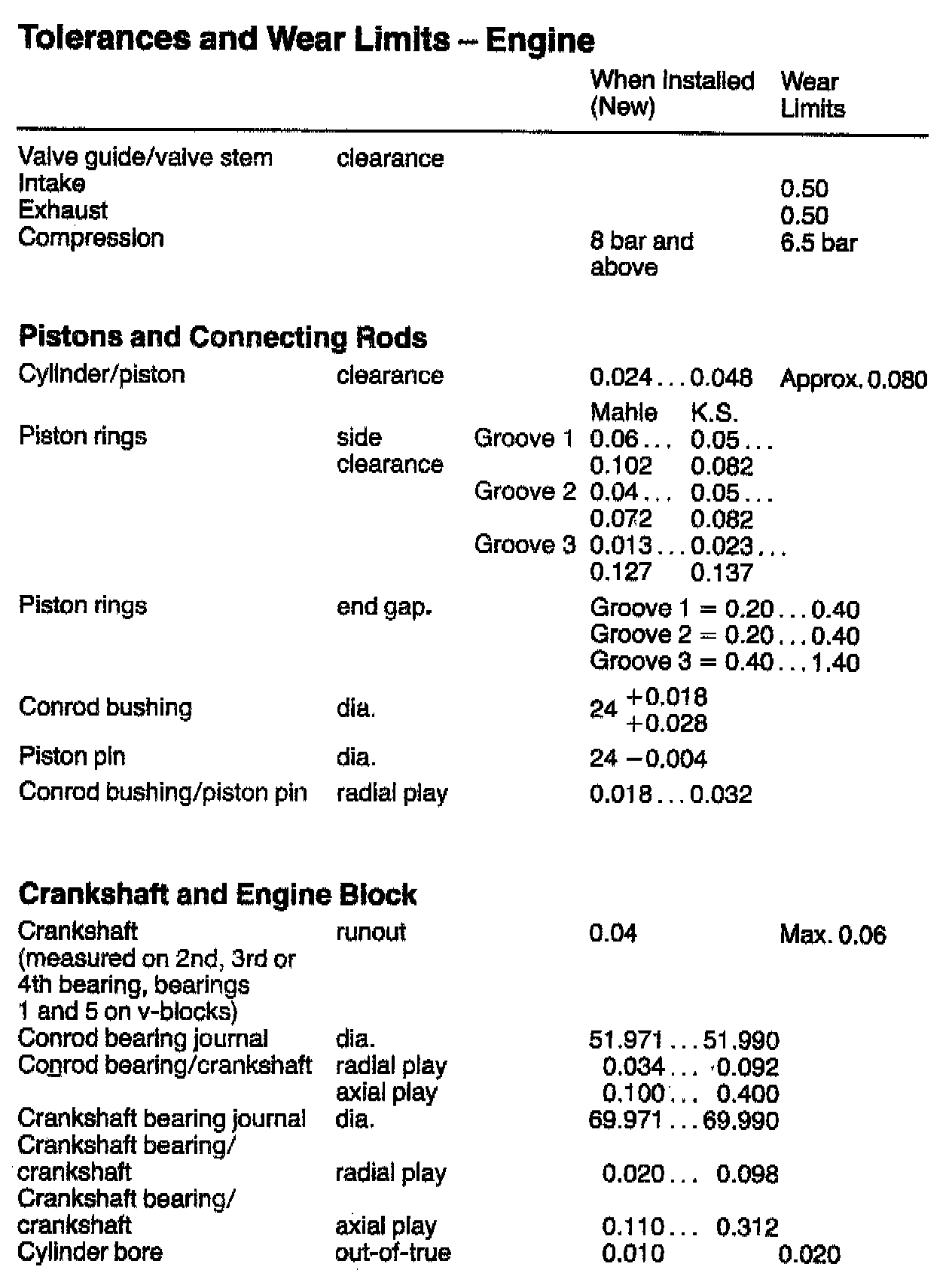

TOLERANCES AND WEAR LIMITS

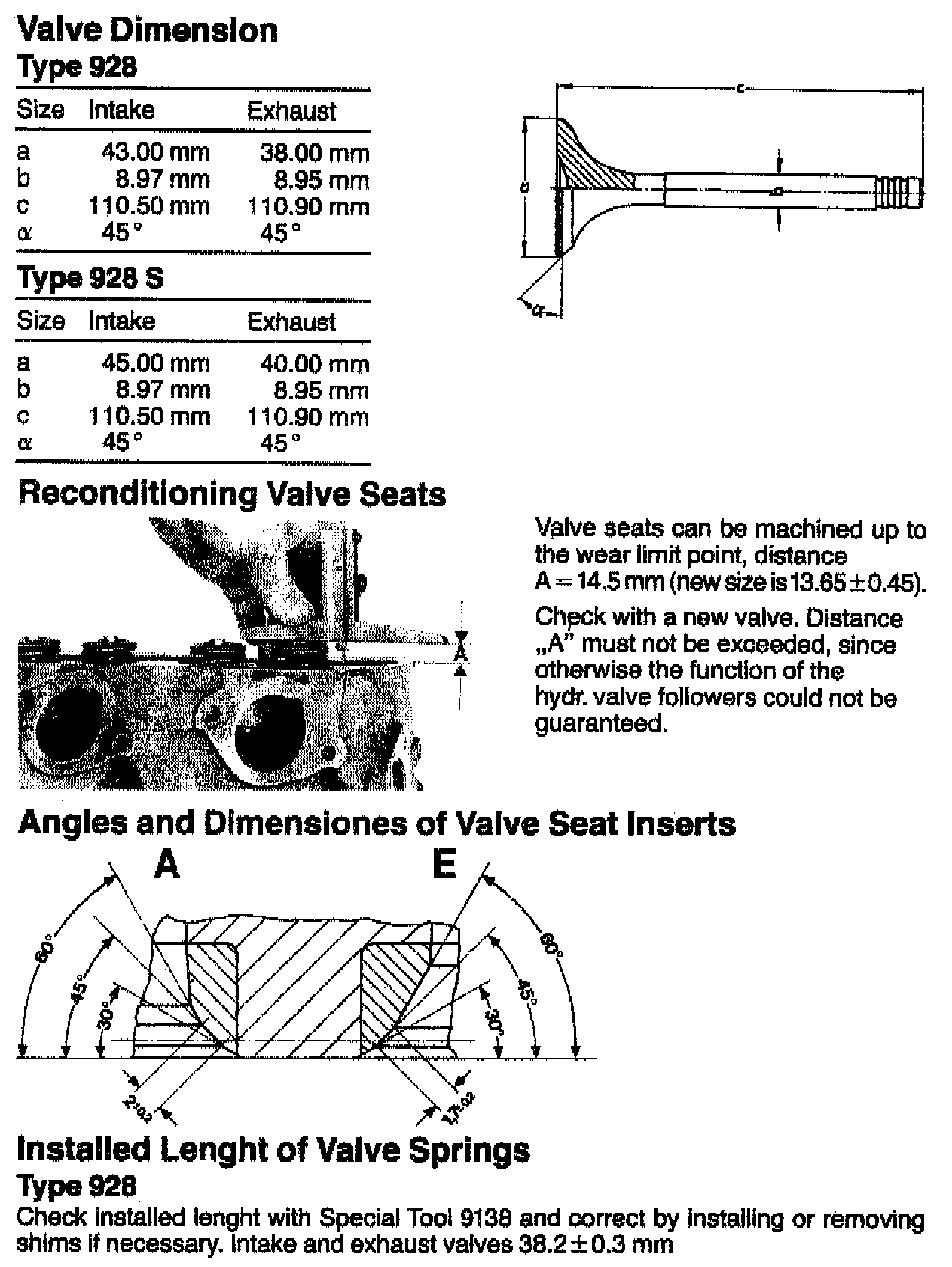

VALVE SPECIFICATIONS
