Part I

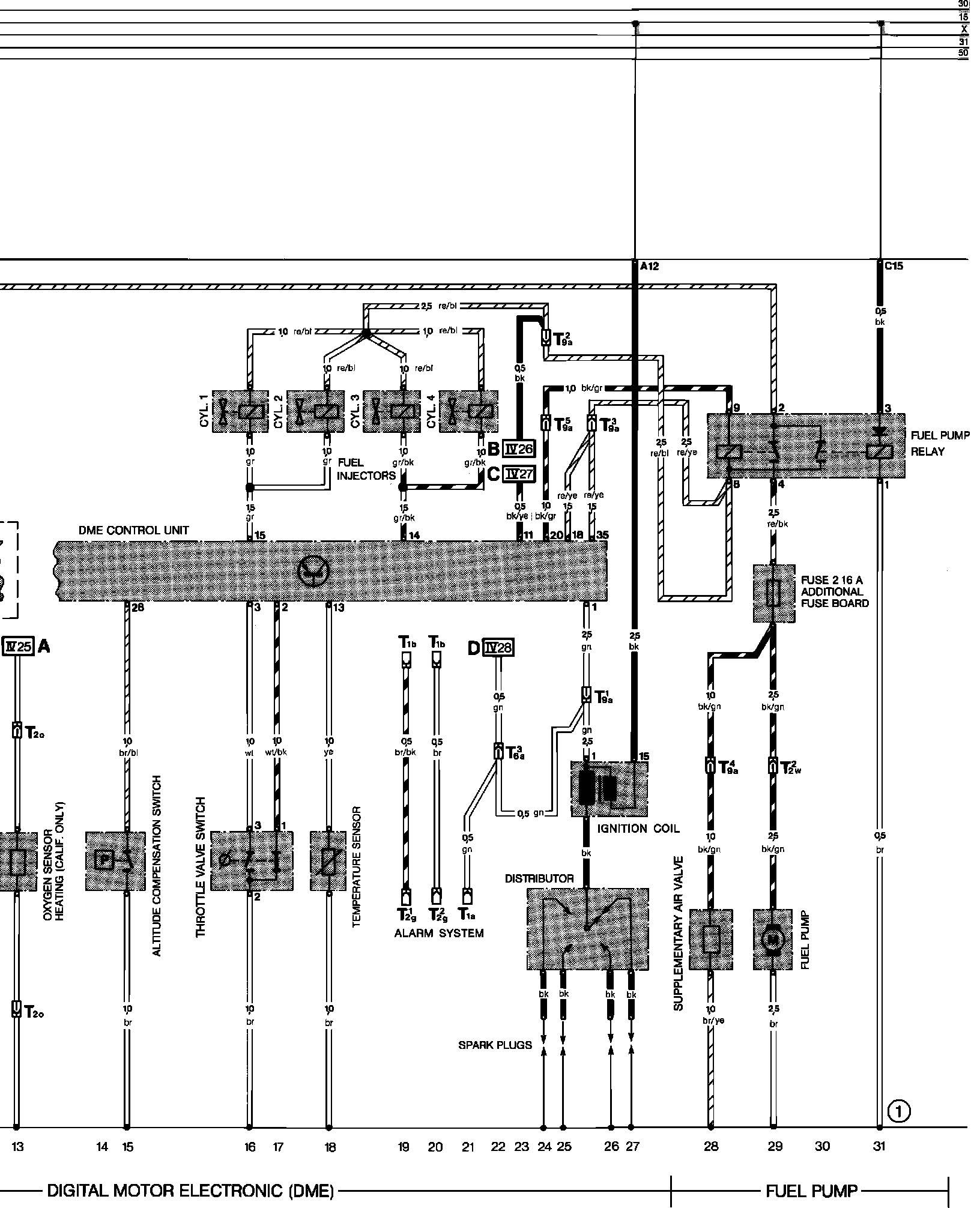

Power Supply, Starter, Digital Motor Electronic (DME) and Fuel Pump:



Power Supply, Starter, Digital Motor Electronic (DME) and Fuel Pump:
