Part V

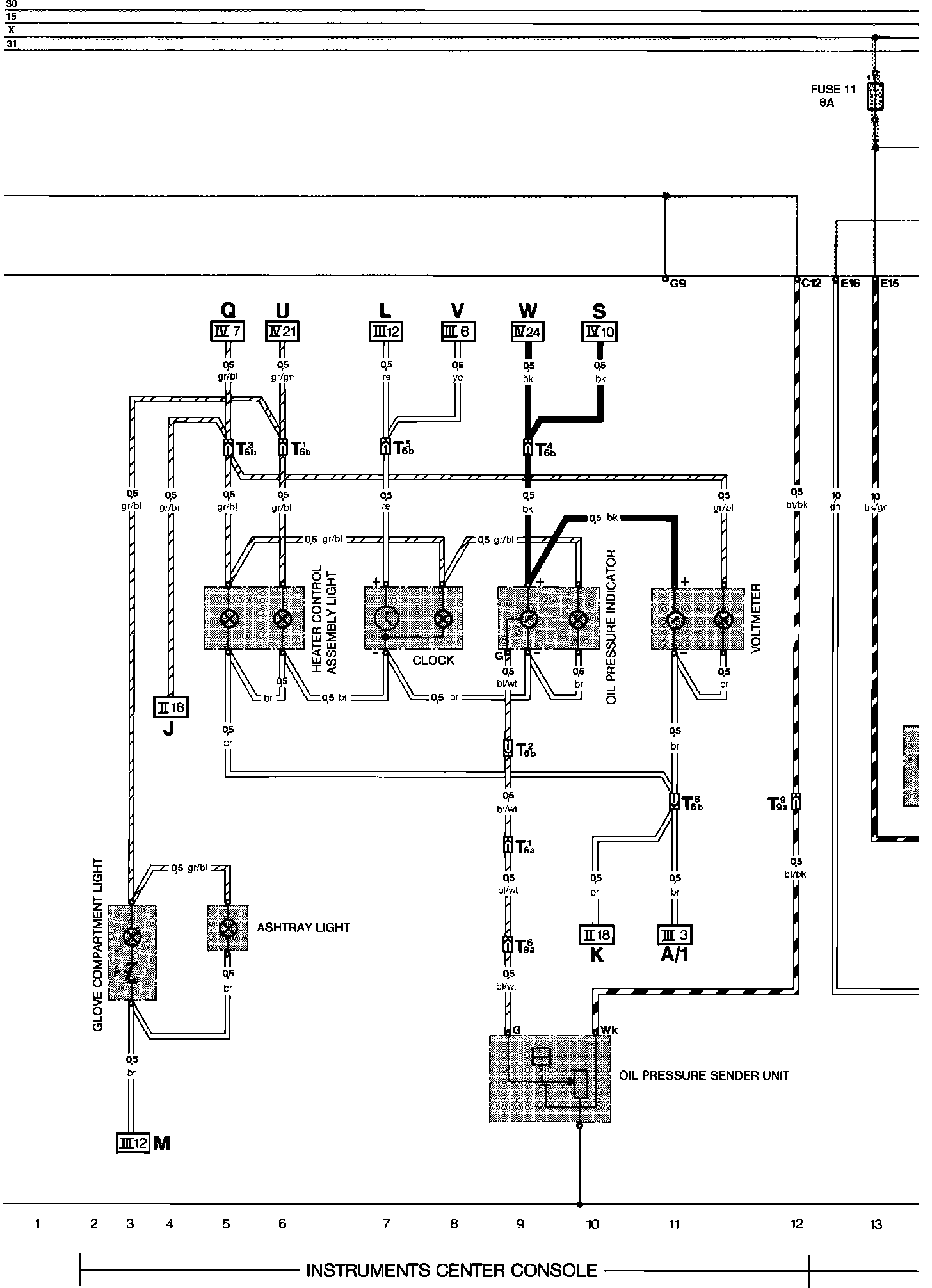

Center Console, Winsshield Wipers, Rear Lid Release:



Center Console, Winsshield Wipers, Rear Lid Release:
