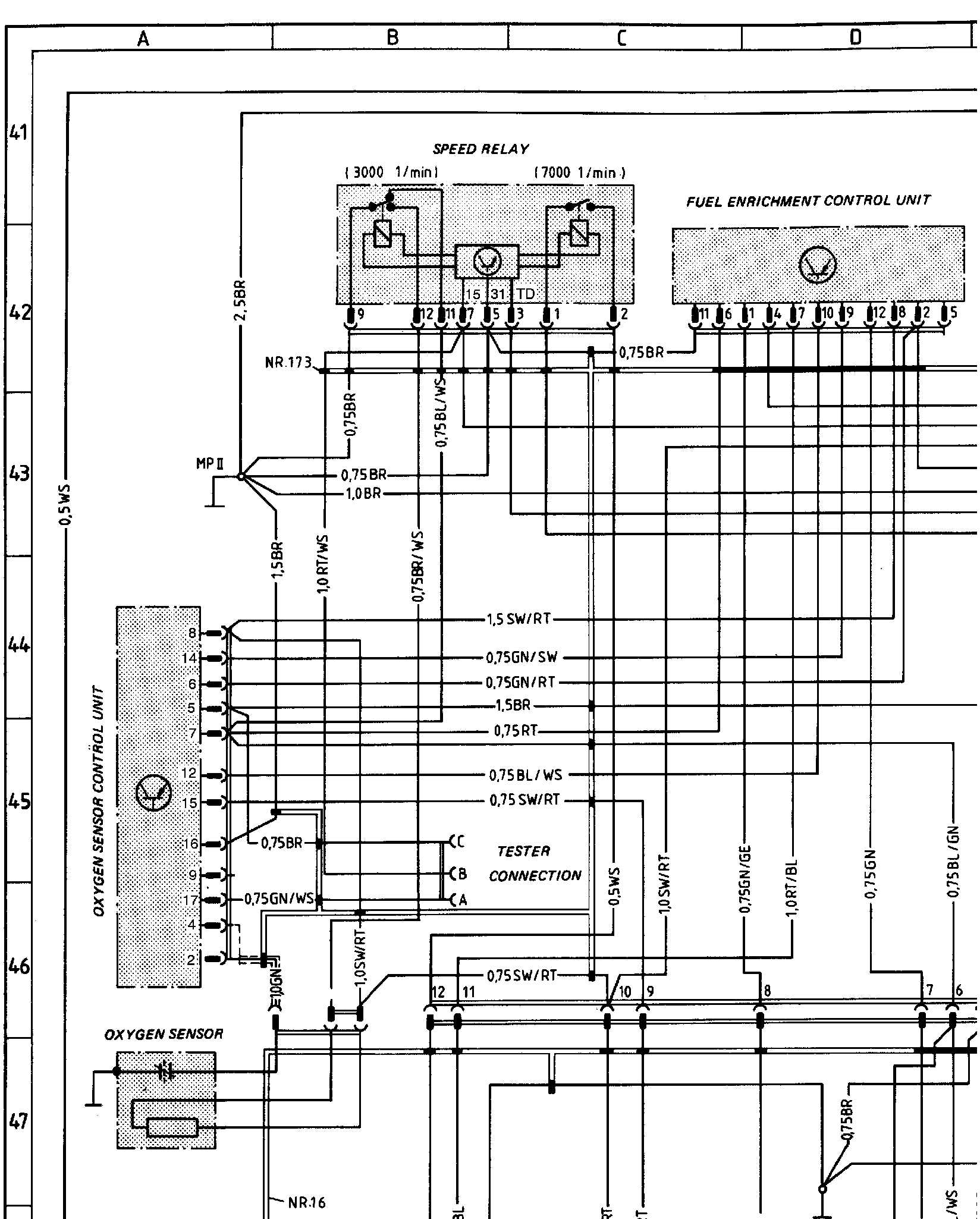

A41 to P50 ENGINE, (K-Jetronik) Oxygen Sensor System
A41 to P50 ENGINE, (K-Jetronik) Oxygen Sensor System
