Charging System - New Alternator Has Integrated Regulator
Group27
Number
82-02
Model
911
Part Identifier
2722
Date: February 12, 1982
Subject:
New Alternator has Integrated Regulator

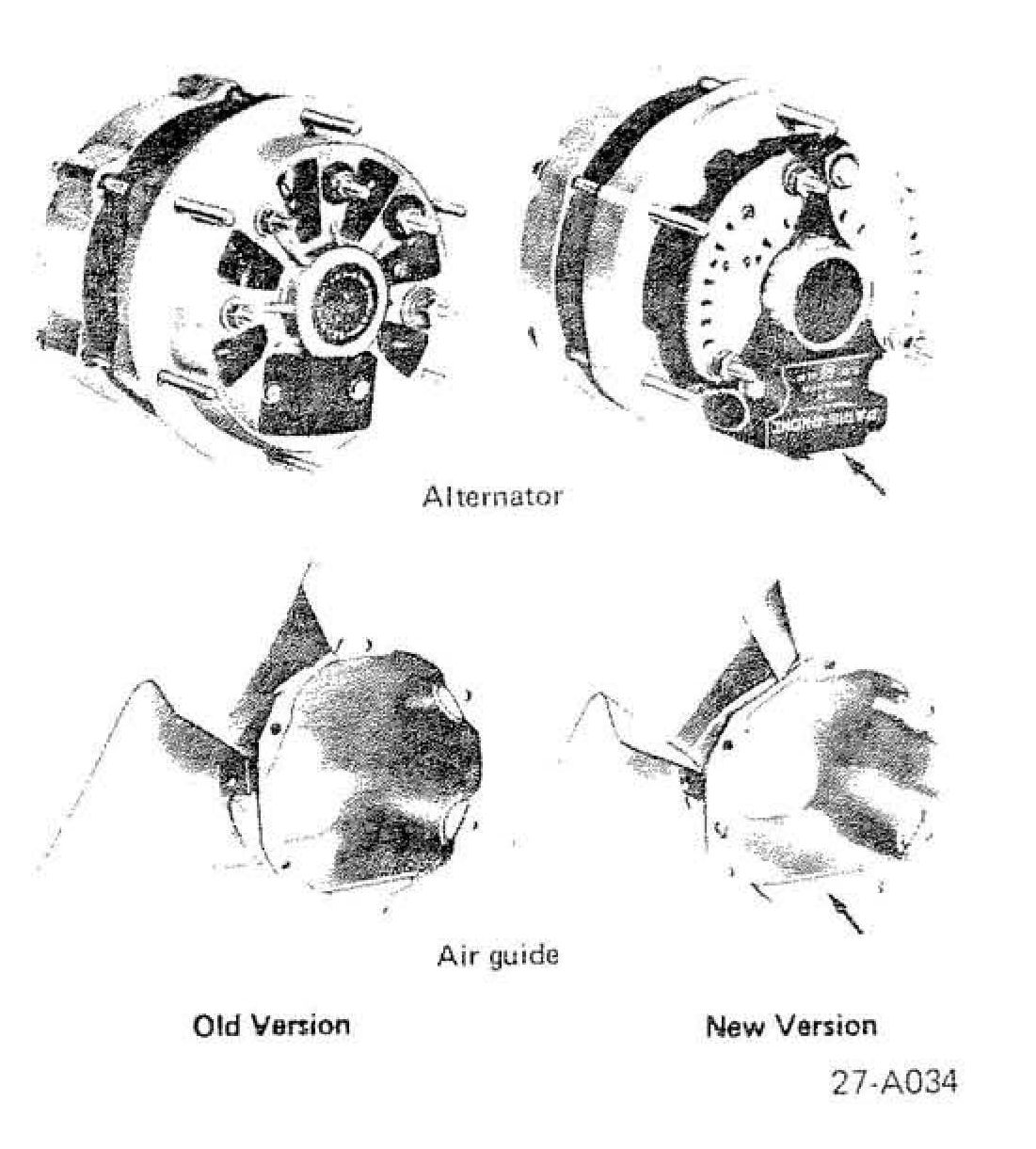

New type alternator, Part No. 911 603 120 04, with integrated regulator, is now installed instead of former version, Part No. 911 603 120 02, which used separate regulator. Regulator of new version, Part No. 911 603 913 01 is located on back of alternator and can be replaced separately. Threads on alternator shaft for installation of pulley have also been changed from M 16 x 1 to 17 x 1.5.
The hub extension (air guide) has been modified to provide an opening for the regulator. Battery charge indicator lamp is changed from 2 W to 4 W, and the DF wire was removed from engine wire harness.
Note
These changes were effective with 1982 model production.
Note
Only new-type alternator will be available for replacement after existing stocks of old version are used up.
New alternator, installing (cars prior to 1982 models)

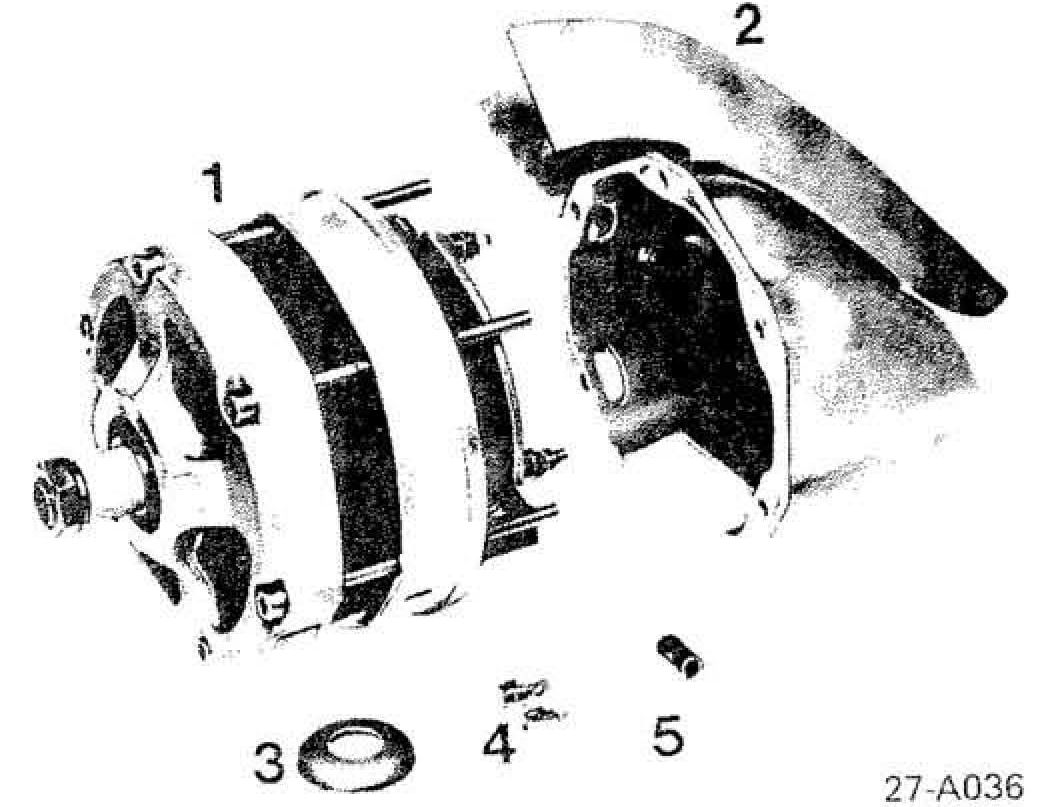

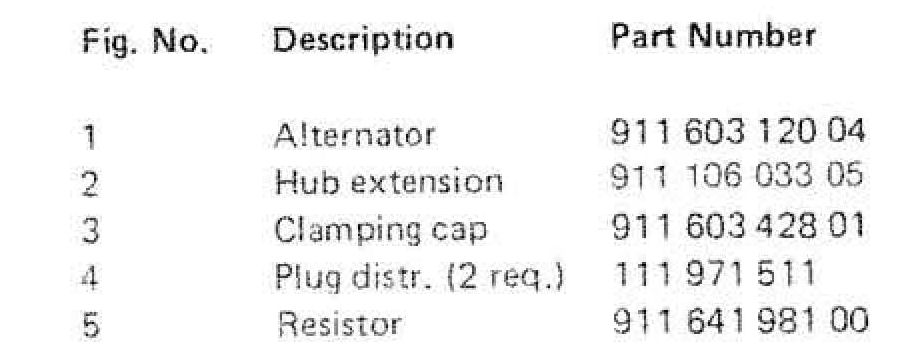

Parts Required
Work procedure:
^ disconnect battery
^ remove old alternator
^ remove old hub extension
^ cut off DF wire (black) at wire branch
^ remove alternator regulator
^ fasten multiple-pin plug of removed regulator on wire harness

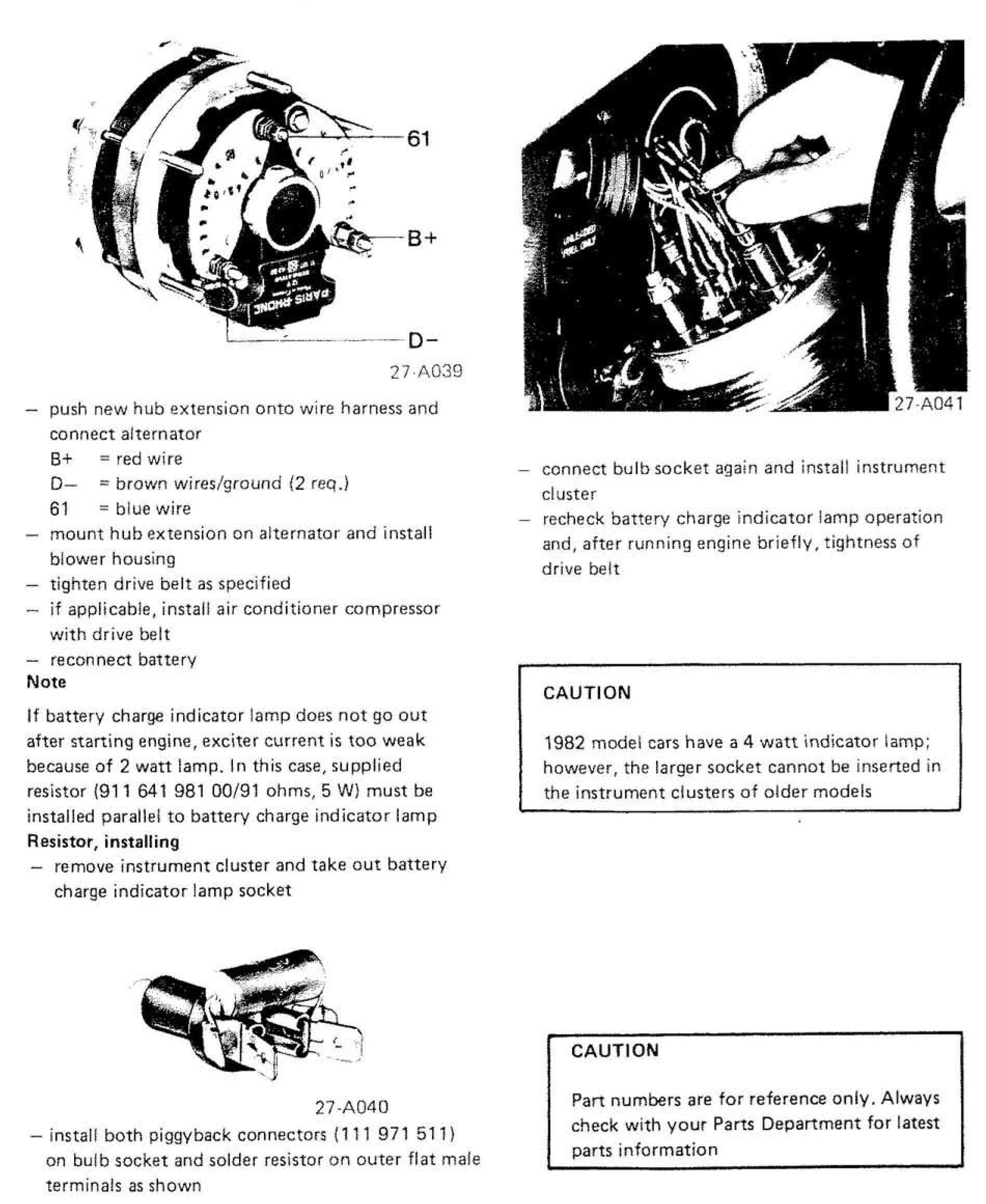

^ install new alternator in blower housing
