Backlighted Instrument Cluster - Read Elapsed Mileage

Group
9



Number
9302



Model
928 1989-on



Part Identifier
9025



Subject:
Reading Elapsed Mileage From Backlighted Instrument Cluster



ATTENTION:
Service Manager/Service Technician

Models Affected:
928 S4/GT/GTS/89-on

Concern:
There are certain instances where the mileage of a particular vehicle must be known, either for various State Department of Motor Vehicles or insurance company investigations.

If a particular vehicle has been involved in an accident which prevents the vehicle's electrical system from being activated, then the backlighted instrument cluster can be removed from the vehicle and mileage readings can be obtained through the following procedure.

Work Procedure:

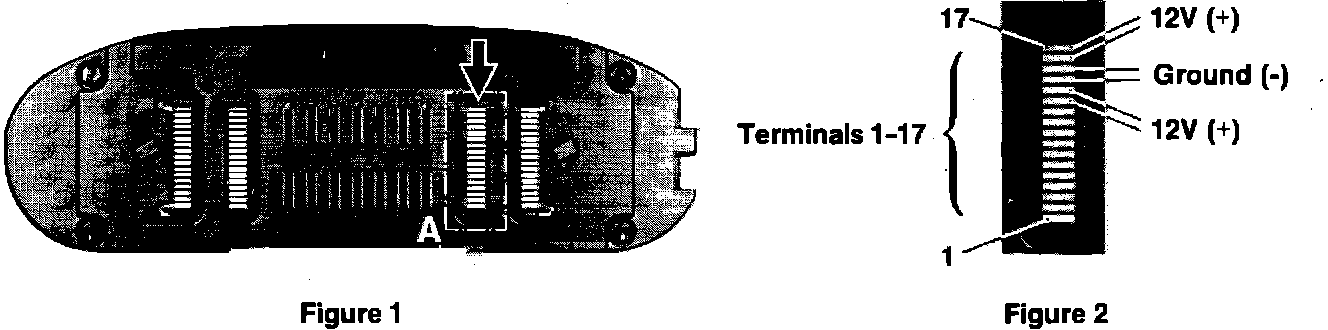

Make a suitable electrical jumper, or if the wiring harness which is in the vehicle is not going to be used, the section going to the # 2 connection (A in Figure 1) of the instrument cluster can be cut from the harness and used as a jumper (see Figure 1).

Apply 12 volts to terminals 17, 16, 13 and 12. Apply ground to terminals 15 and 14 (see Figure 2).

The total vehicle mileage and trip mileage can now be read in the display.
