Tools - Adapter Cables for Diagnosis Tester 9268

88porsche11

Subject: Special Tools Bulletin - Adapter Cables for

Diagnosis Tester 9268
Model


Part Identifier
Group


Number

8803

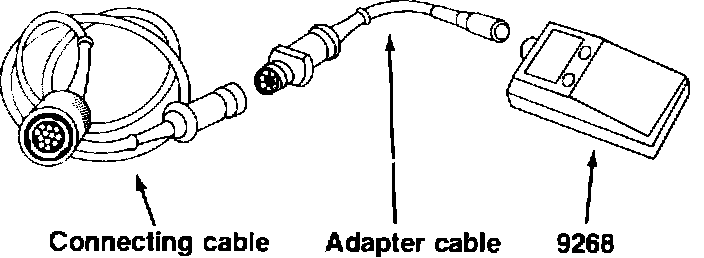

Listed below are two adapter cables needed to connect Diagnosis Tester 9268 to the new 19 pin diagnosis plug on the 1989 928 S4.

Refer to Technical Bulletin Group 0, Number 8805, for cable and tester application.






Order No. Description Dealer Price

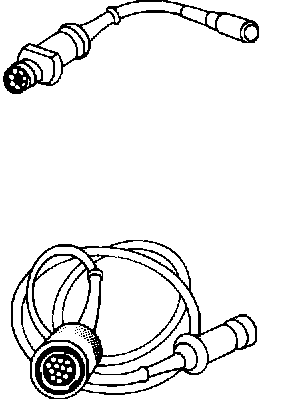

000 721 926 82 Adapter cable $54.99
connects between 9268 and connecting cable


000 721 928 81 Connecting cable $88.78
connects between adapter cable and 19 pin diagnosis plug


These tools are available from your Porsche Parts Distribution Center.
