Home >> Porsche >> 1992 >> 911 Turbo F6-3299cc 3.3L SOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

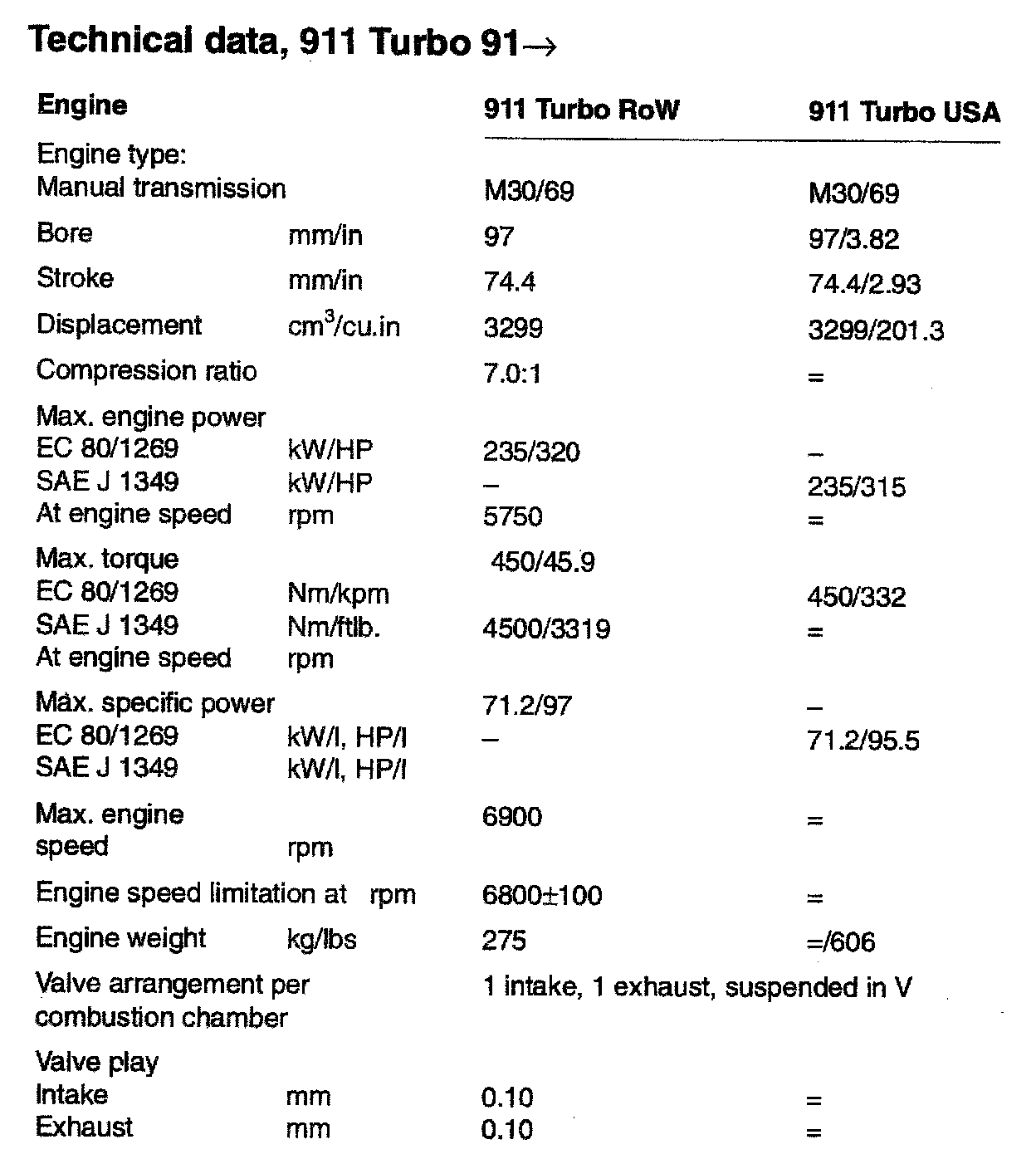

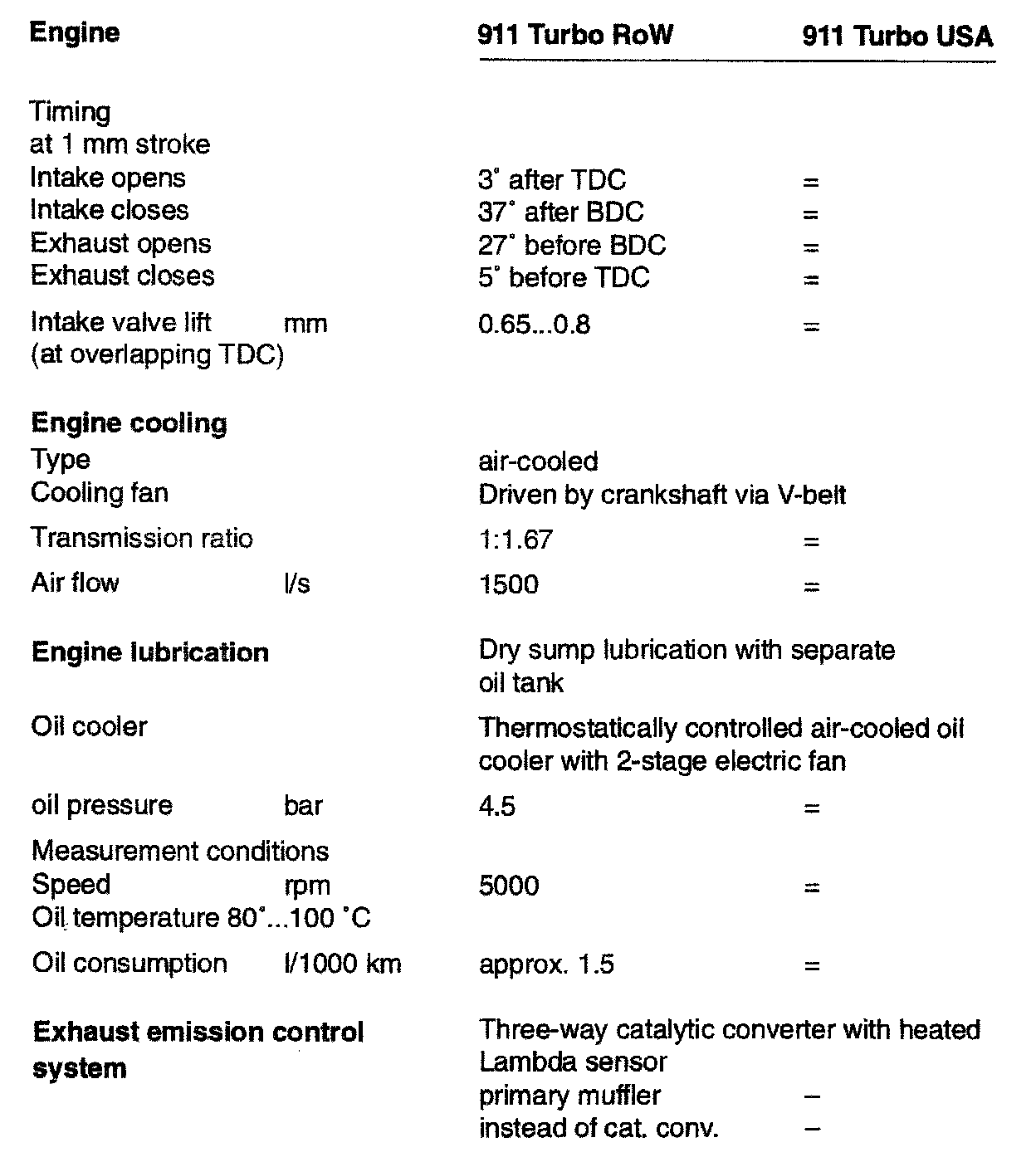

GENERAL SPECIFICATIONS









CAMSHAFT SPECIFICATIONS

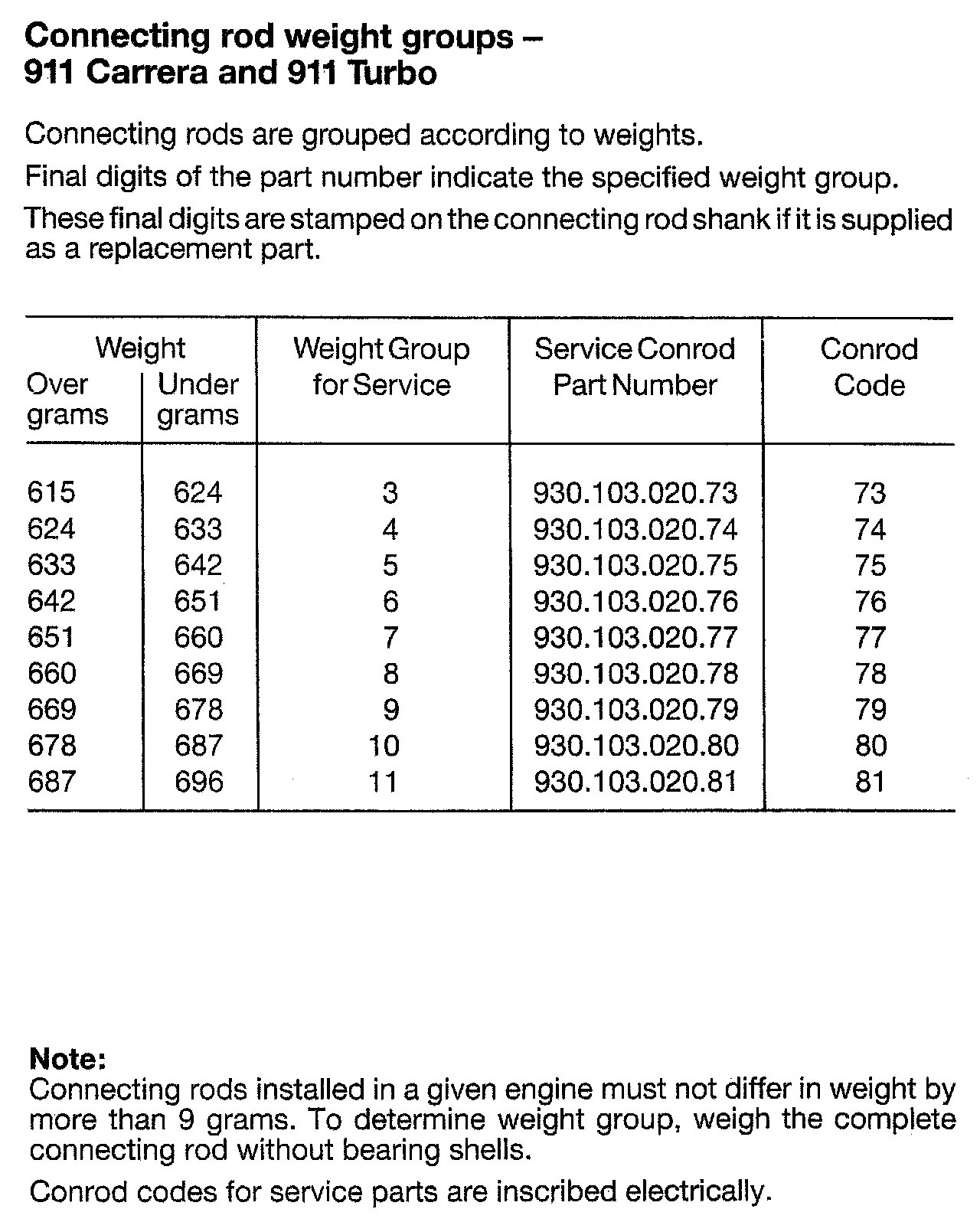

CRANKSHAFT SPECIFICATION

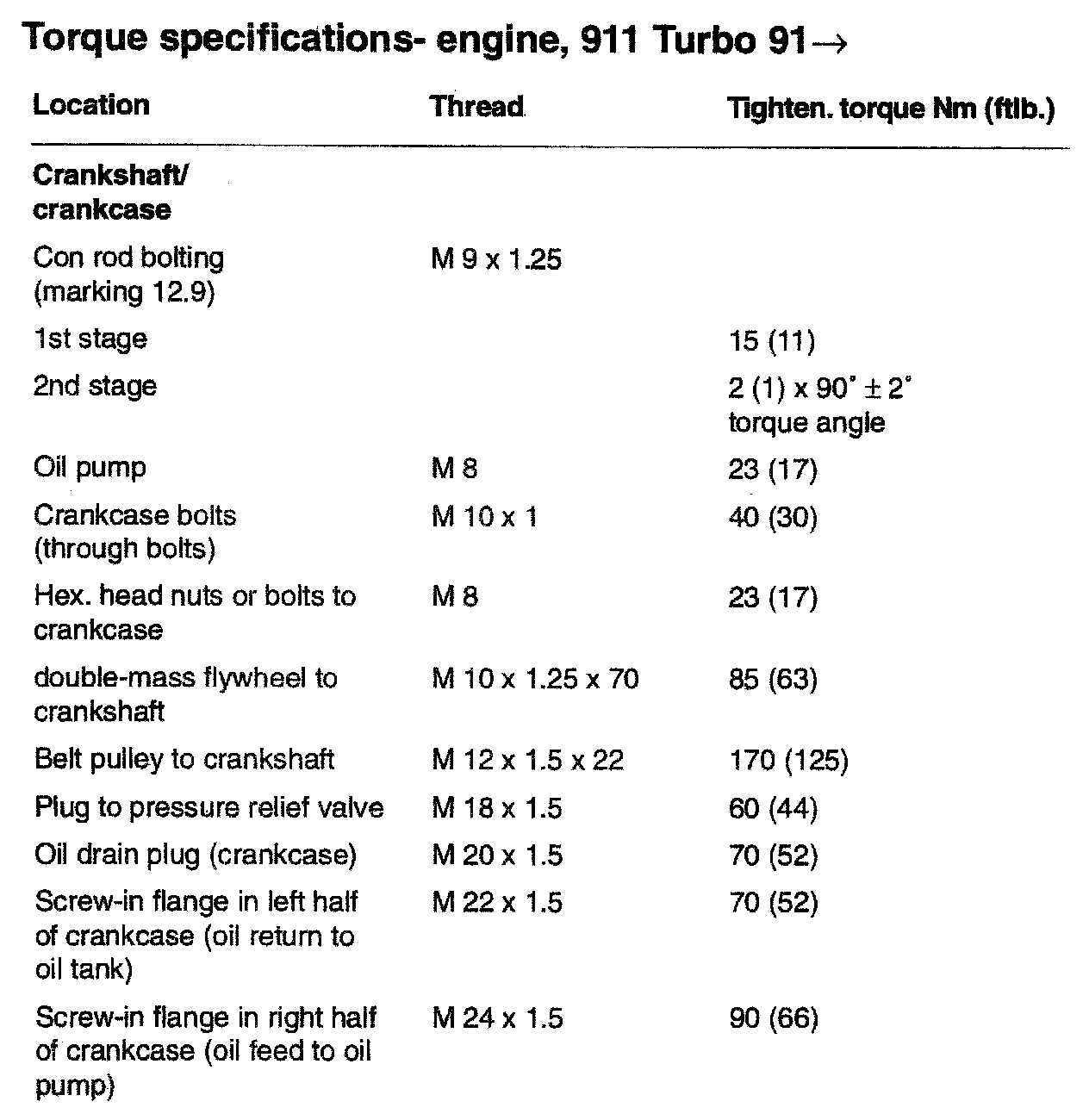

TIGHTENING SPECIFICATIONS













TOLERANCES AND WEAR SPECIFICATIONS

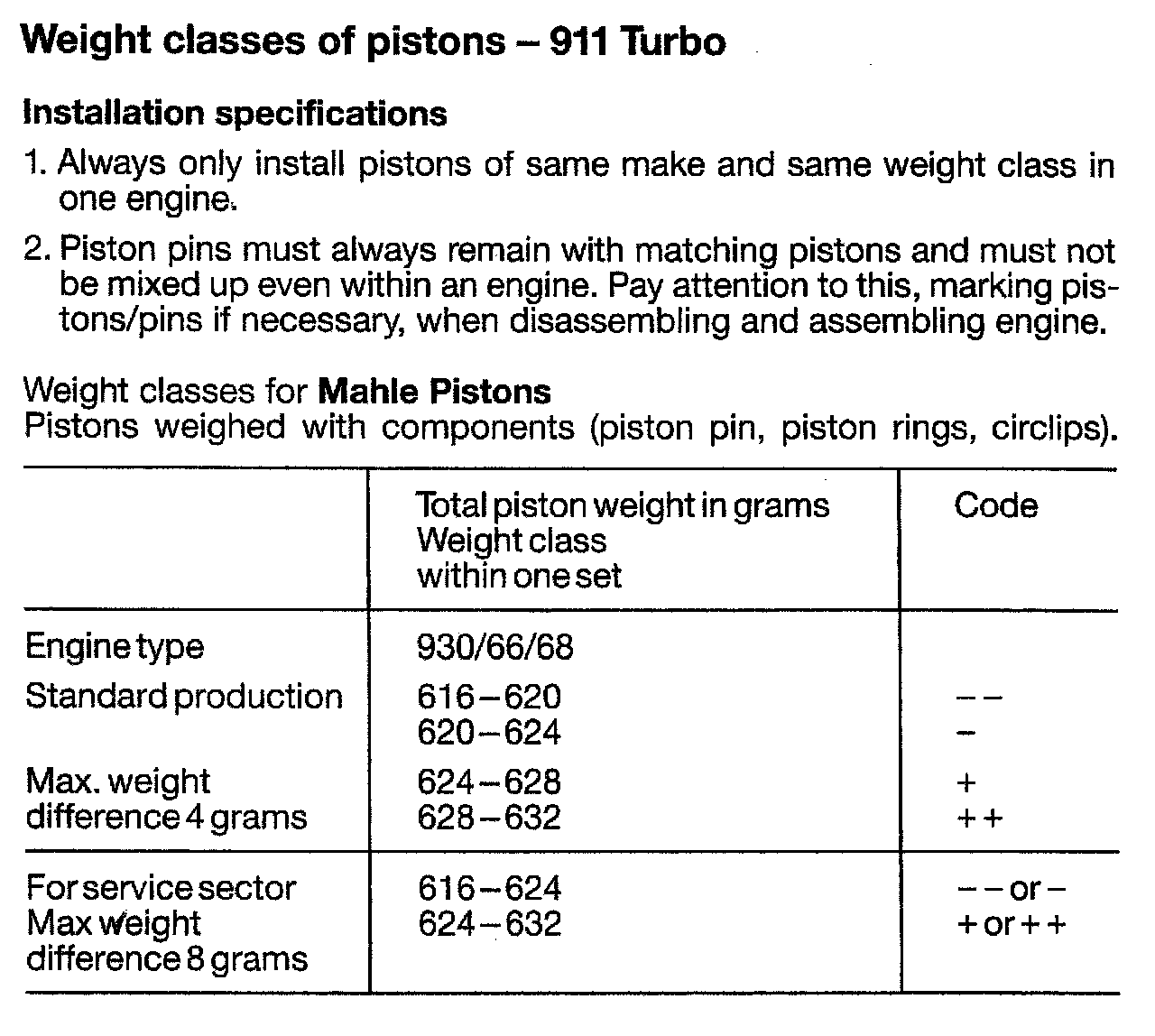

PISTON SPECIFICATION









VALVE SPECIFICATION
