System Specifications

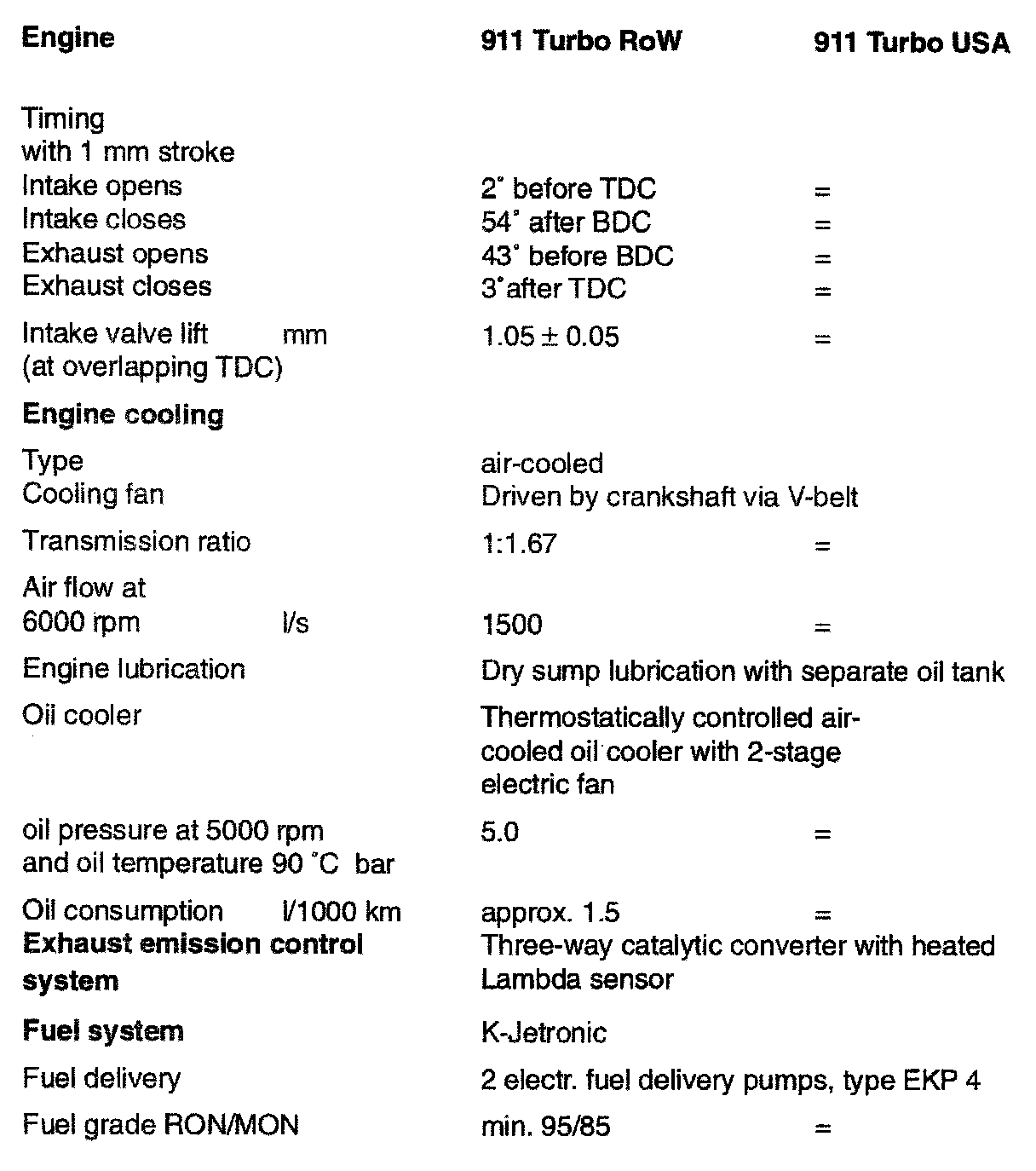

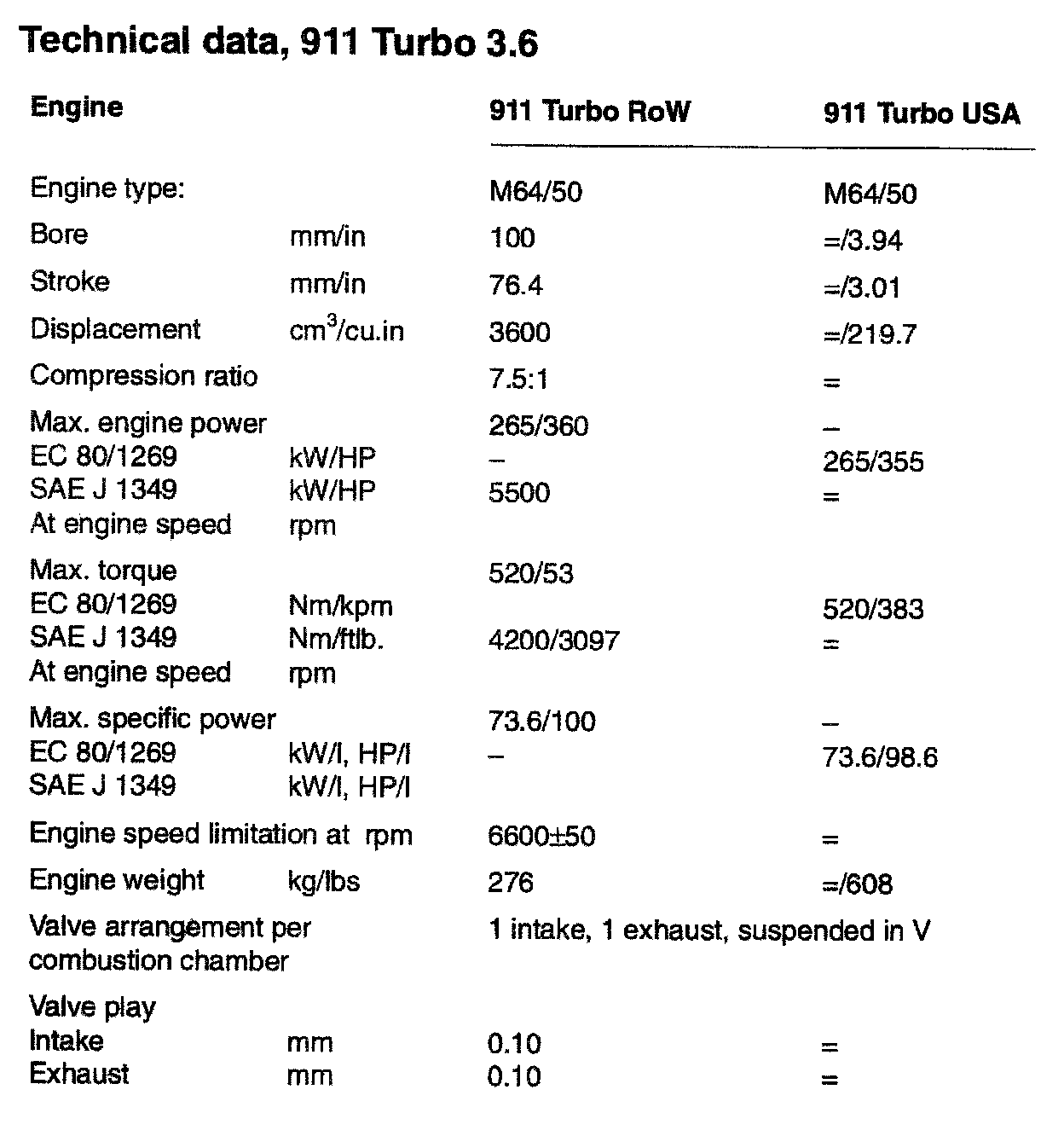

GENERAL SPECIFICATION









CAMSHAFT SPECIFICATION





CRANKSHAFT SPECIFICATIONS

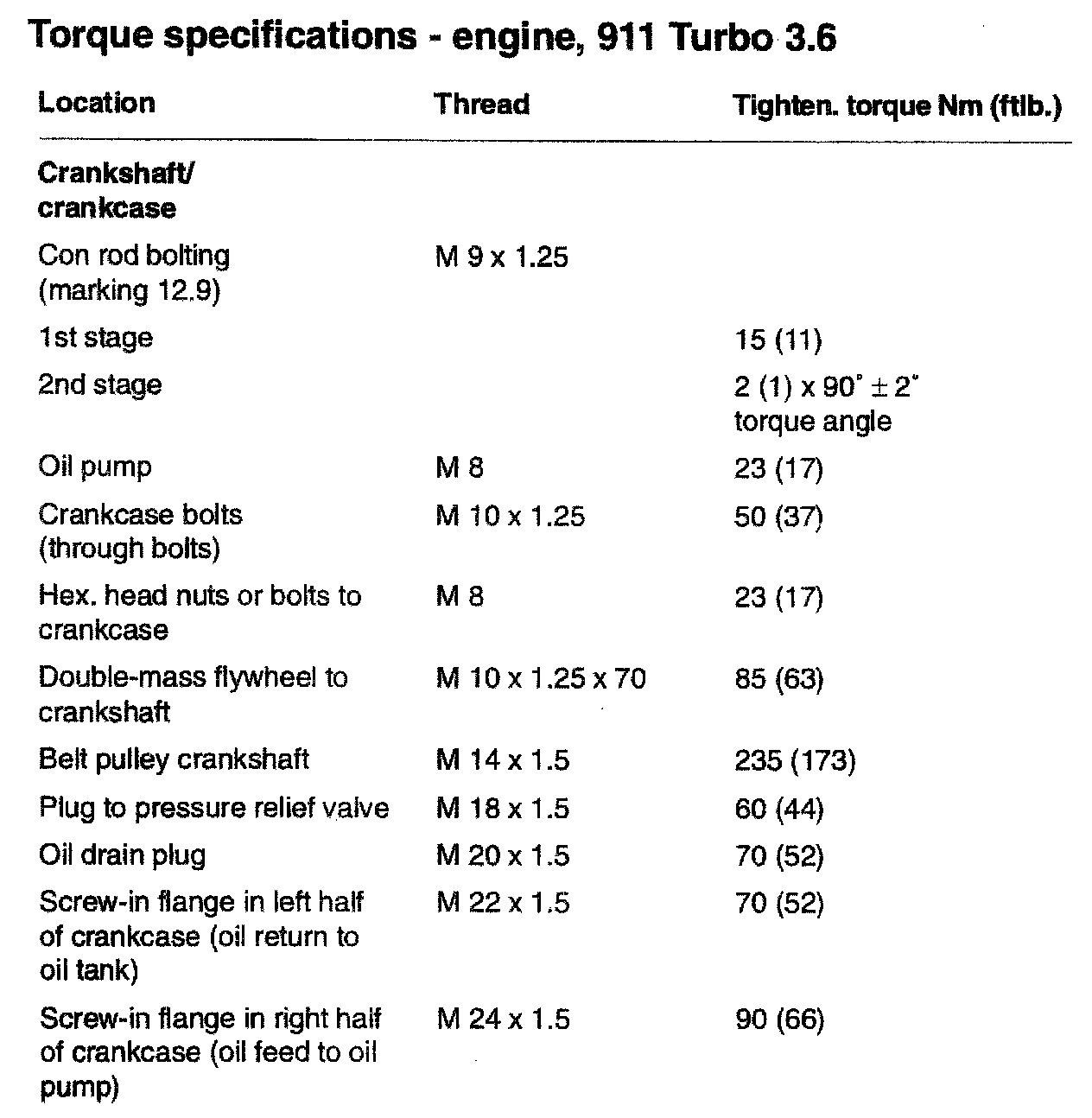

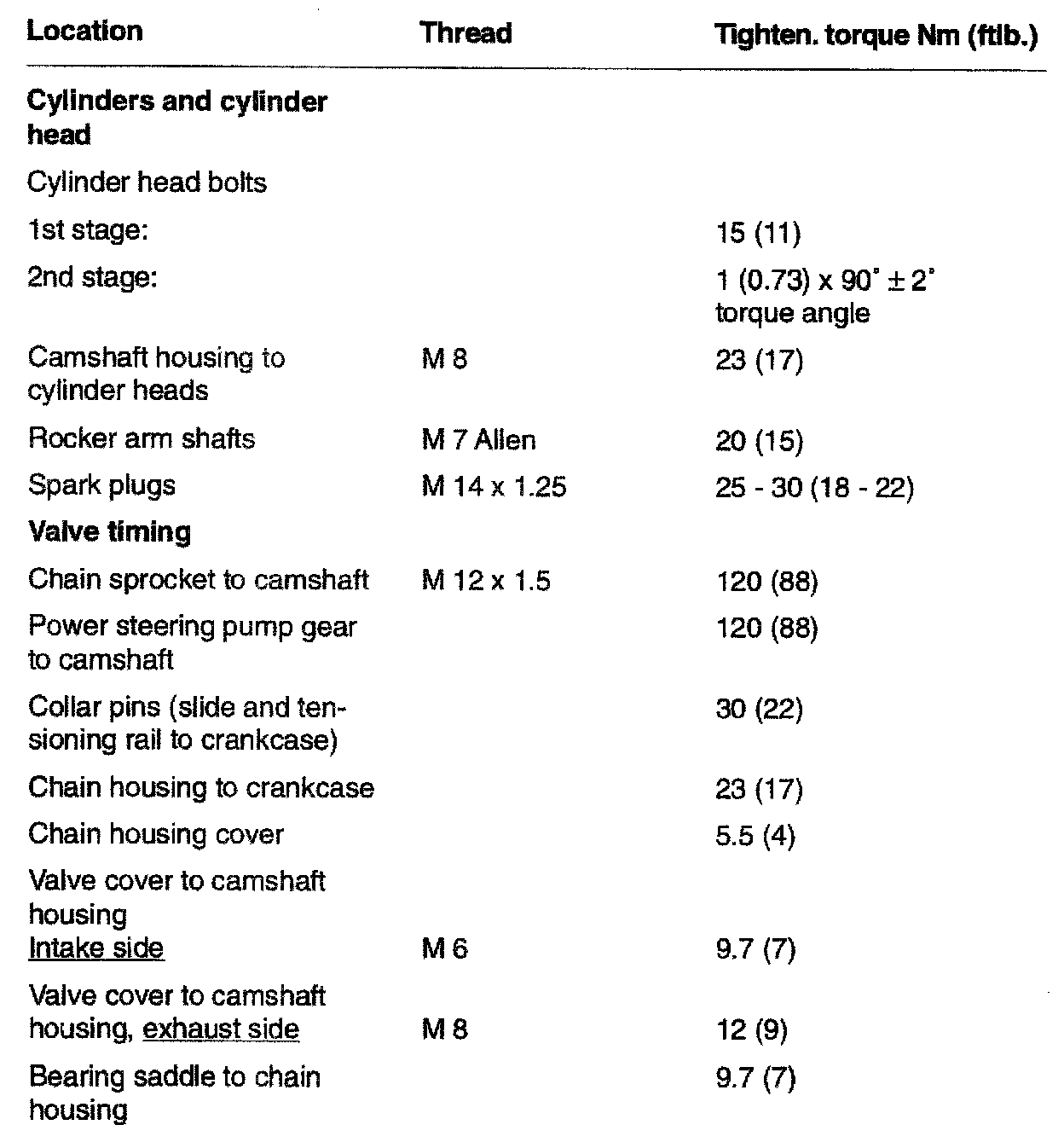

TIGHTENING SPECIFICATIONS













TOLERANCES AND WEAR SPECIFICATIONS

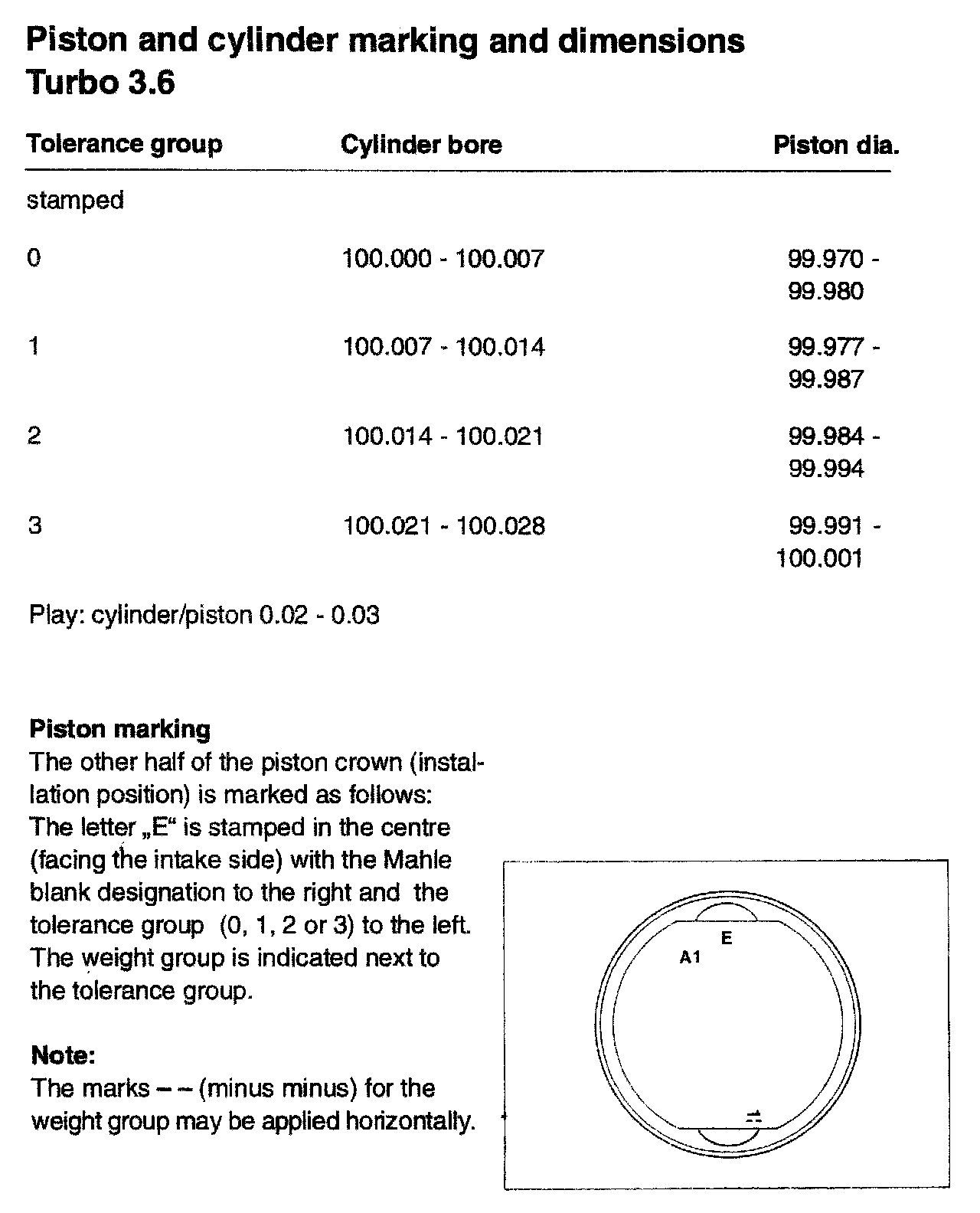

PISTON SPECIFICATIONS





VALVE SPECIFICATIONS
