Wheel Locks - Correct Installation Position

Group
4

Number
9307

Model
911 Turbo 3.6
1994

Part Identifier
4412

April 6, 1993

Subject:
Wheel Lock Position
911 Turbo 3.6 liter

ATTENTION:
Service Manager/Service Technician

Models Affected:
911 Turbo 1994 3.6 liter

Concern:
Correct installation position of wheel locks.

General Information:
The 1994 911 Turbo 3.6 is factory equipped with 18" cup design wheels. The 18" cup design wheel comes in two (2) versions. Both versions are identical except for the location of the valve stem.

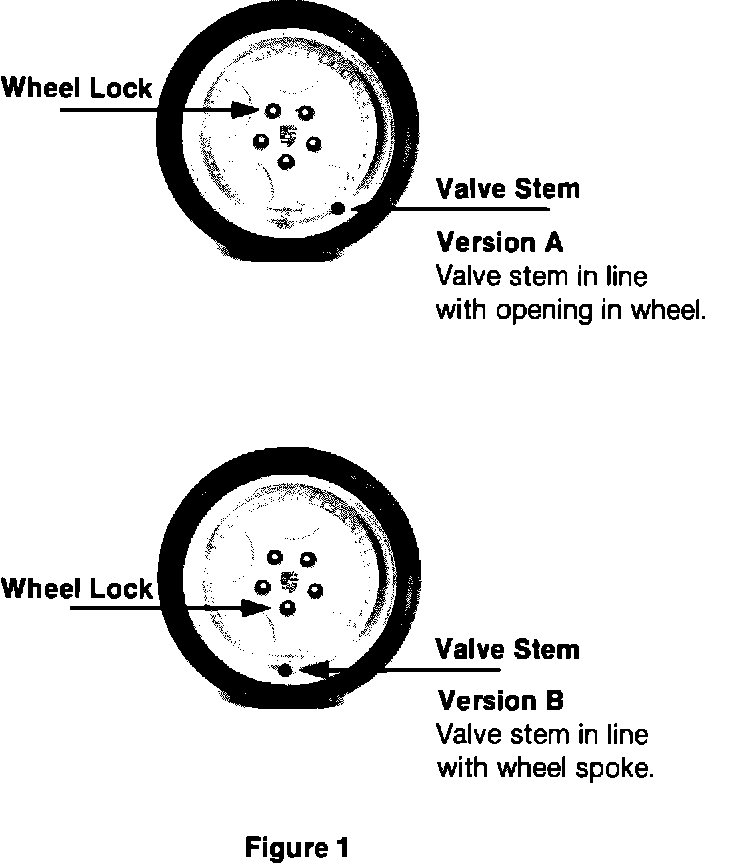

To ensure the finish balance of the wheels after wheel removal, the wheel lock must be installed as shown in Figure 1.
