Intermediate Plate Dismantling and Assembling

Dismantling and assembling intermediate plate

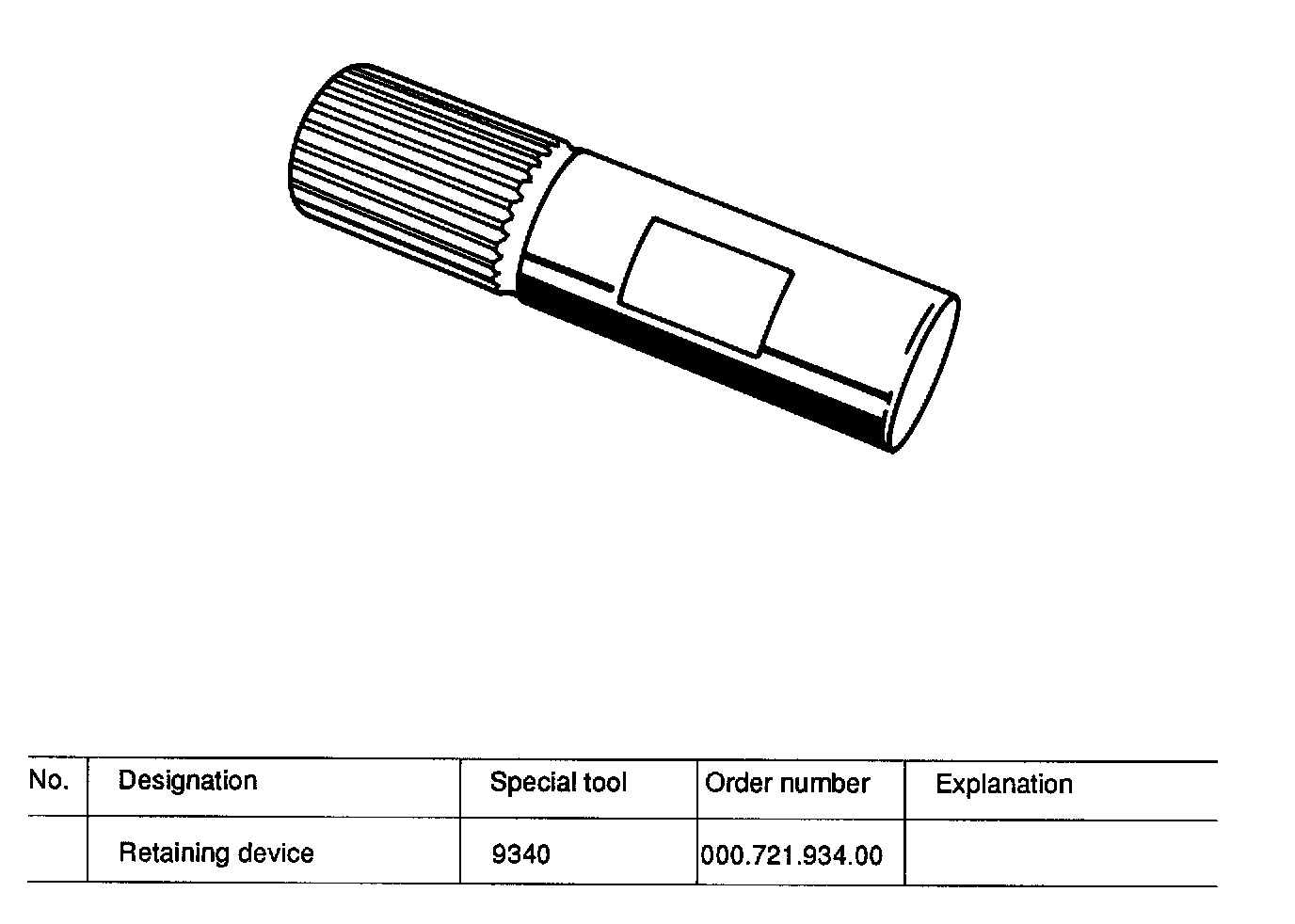

Tools

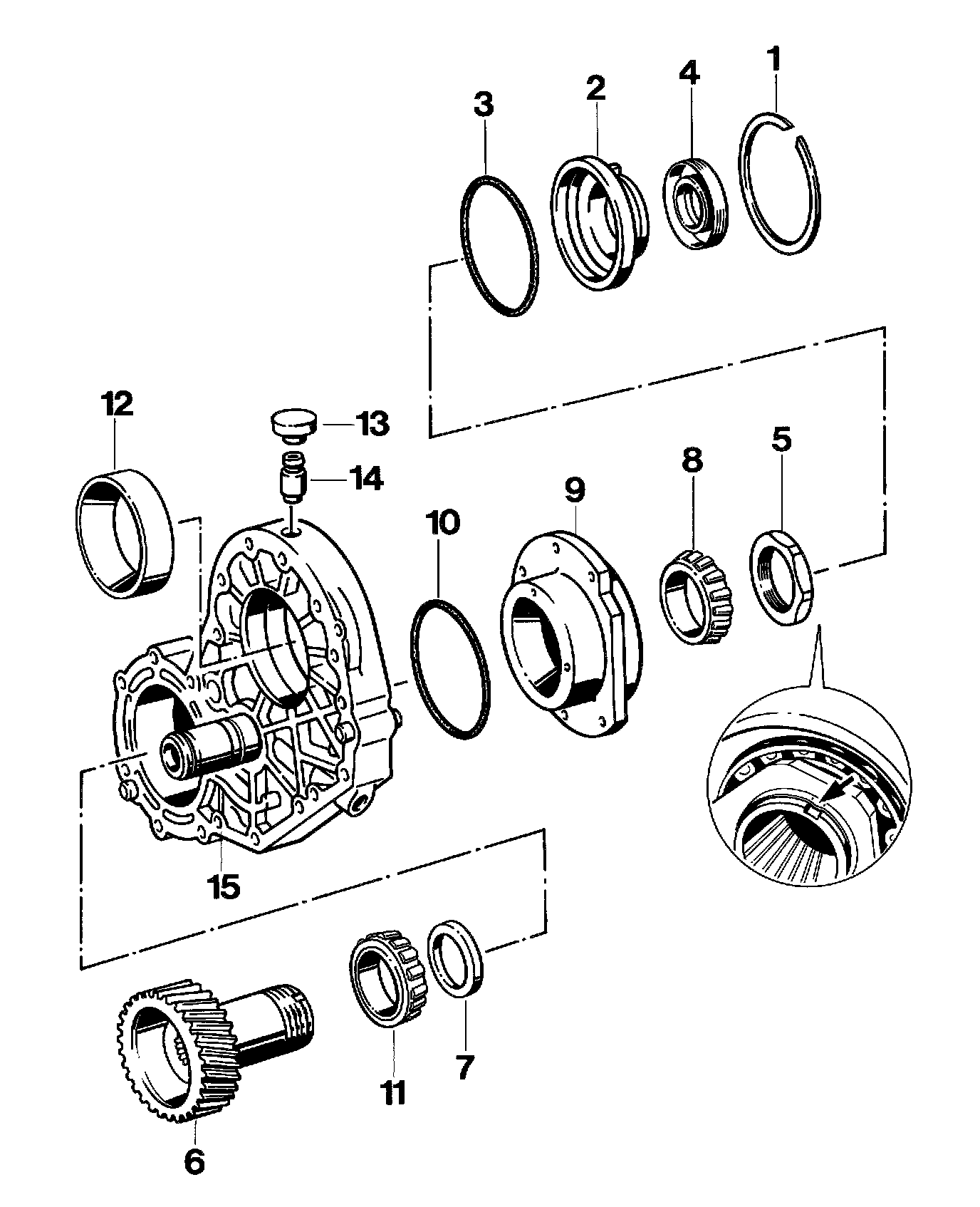

Component view

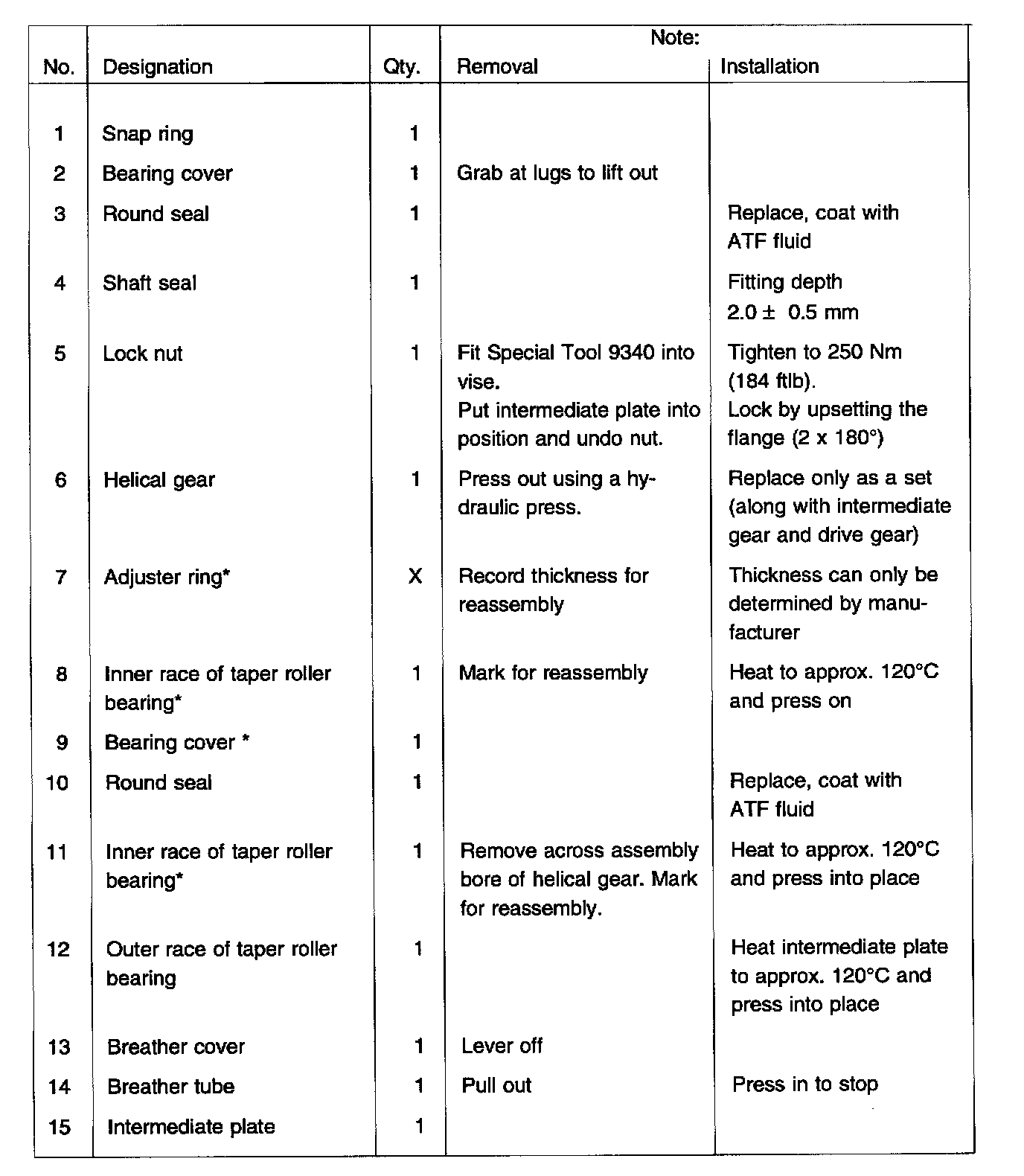

Designations and notes


NOTE: The parts identified by an * have been preadjusted by the manufacturer.
