Parking Lock Disassembling and Assembling

Disassembling and assembling the parking lock

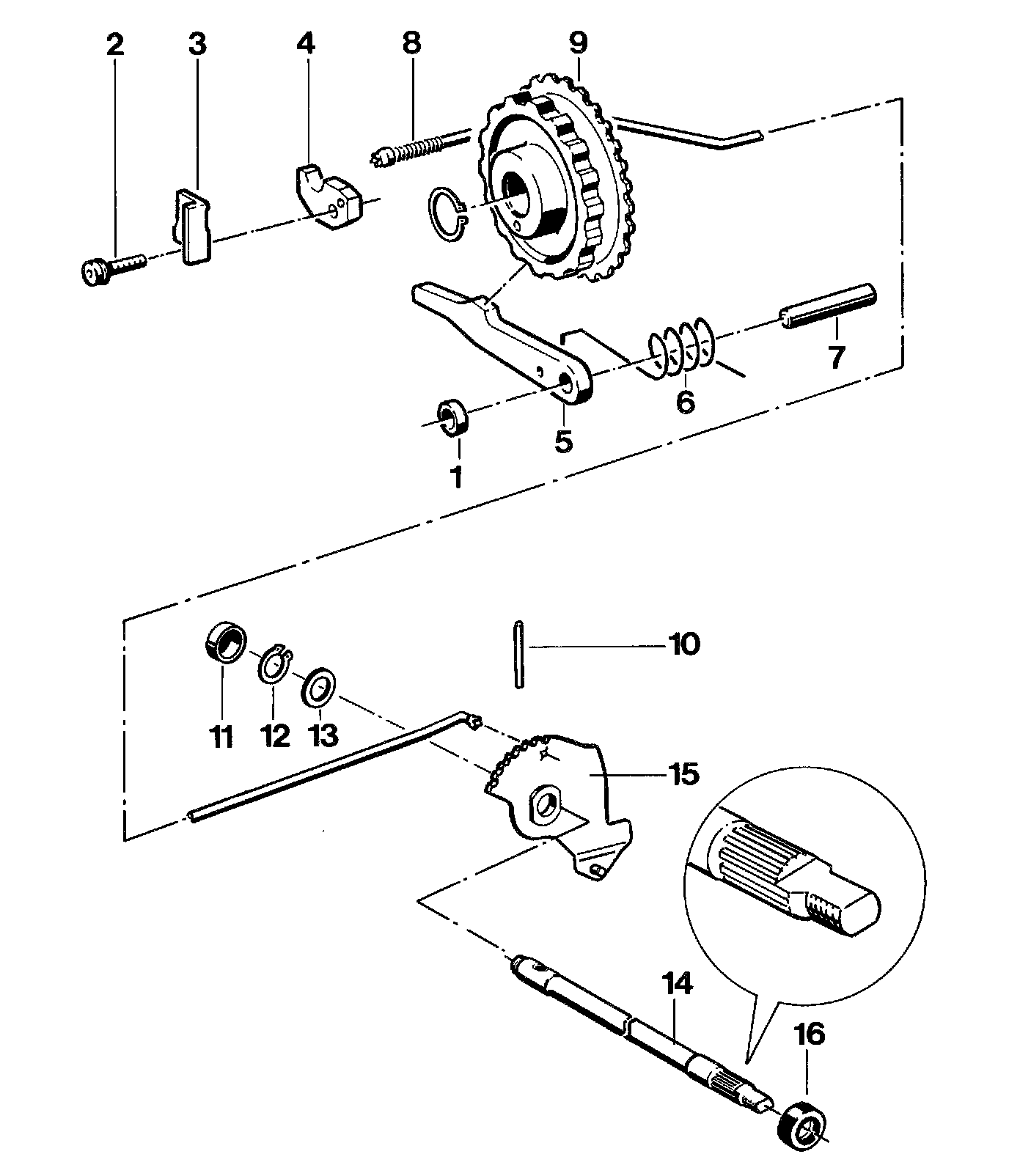

Component view

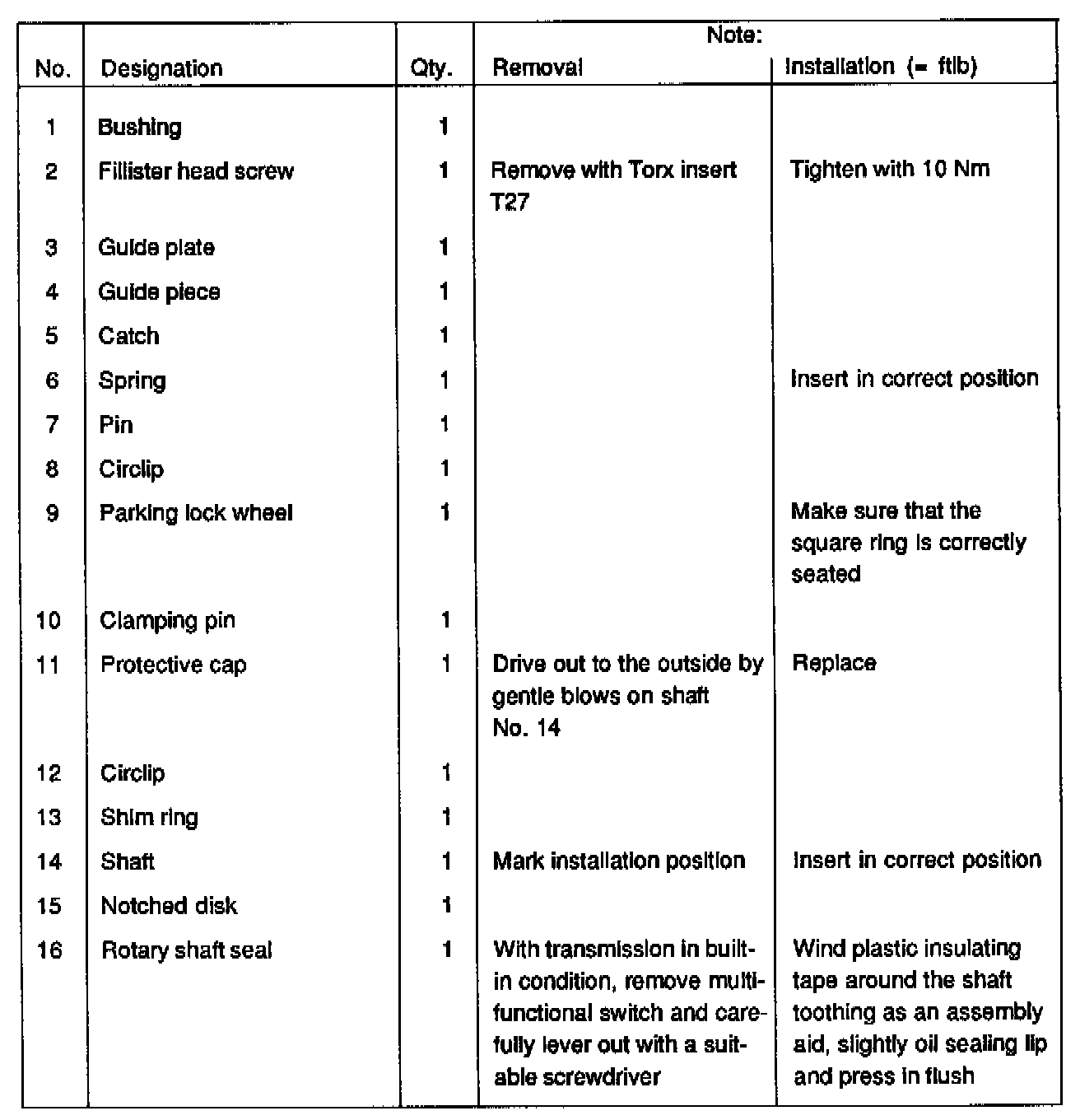

Designations and notes

Work instructions for disassembling and reassembling

Disassembling

1. Remove transmission.

2. Remove intermediate plate.

NOTE: Part Nos. 11 to 15 can be removed only when the final drive and the ATF pan have been dismantled.

Assembling

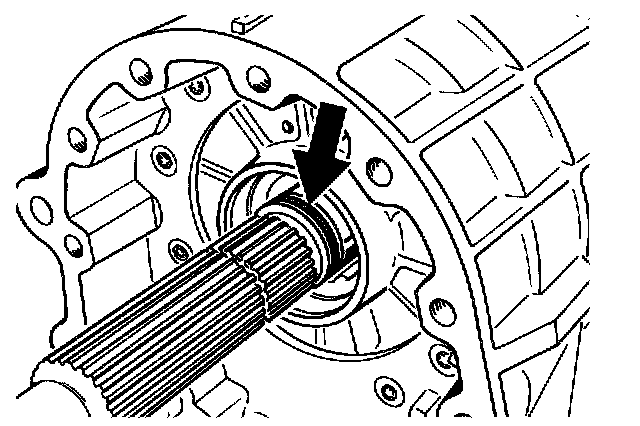

1. Replace O-ring on output shaft.

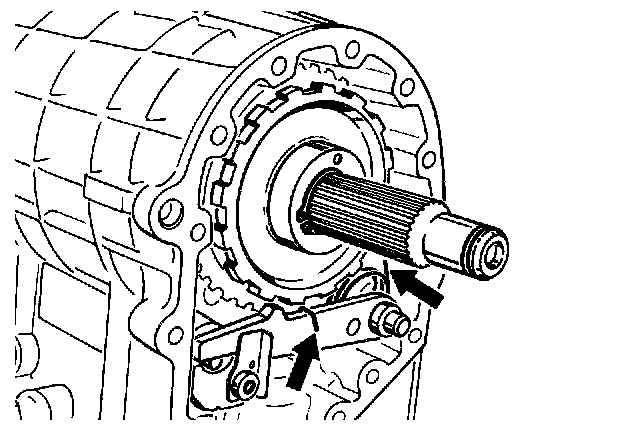

2. Insert spring for catch in correct position.
