DME Component Arrangement in the Vehicle





DME COMPONENT ARRANGEMENT IN THE VEHICLE:

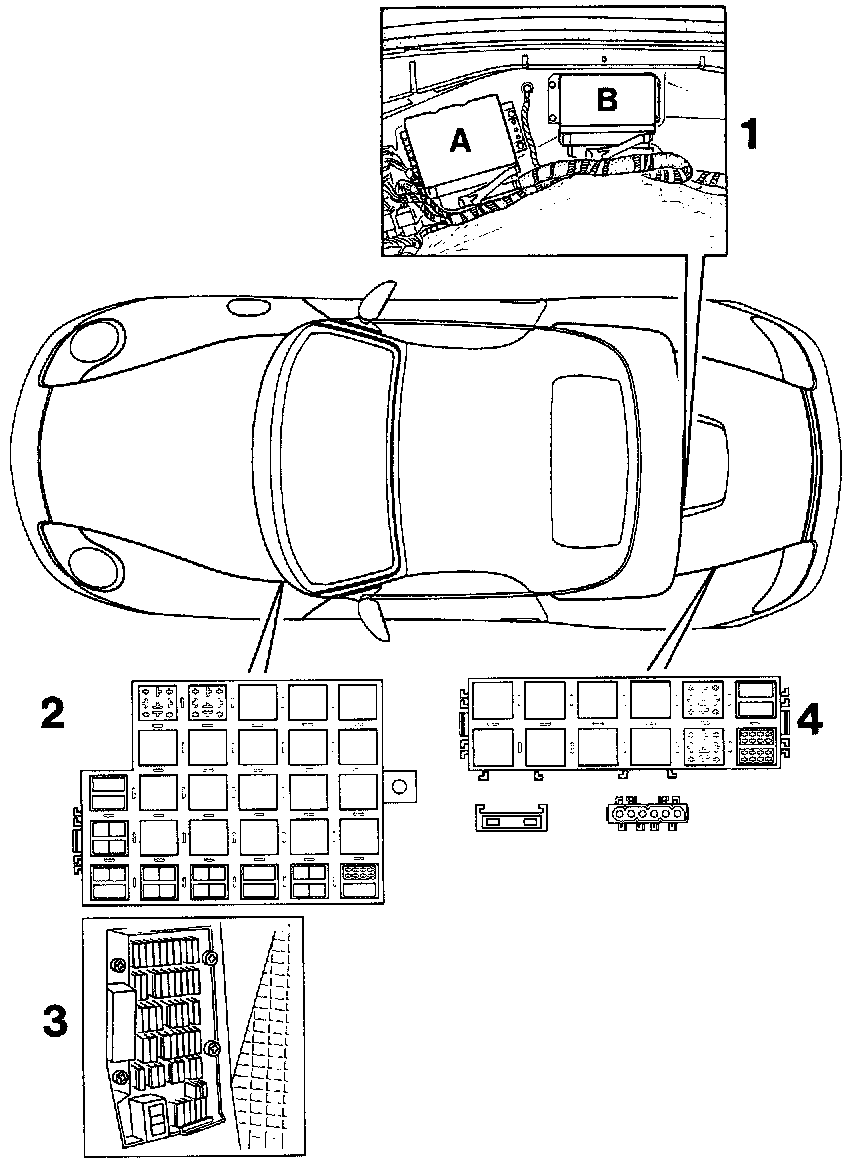

DME Components In The Vehicle:




Components:
1. Control modules
A. DME control module
B. Tiptronic control module
2. Relay carrier 1 (on left in driver's footwell)
3. Fuse carrier (on left in driver's footwell)
4. Relay carrier 2 (on left rear in luggage compartment)

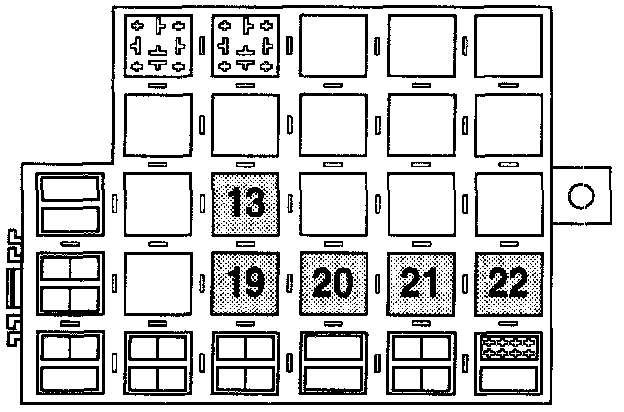

Relay Carrier 1:




Assignment on Relay Carrier and on Fuse Carrier:
Relay Carrier 1 (in the footwell):
Fuel pump
Relay at connection point 13

Radiator fan 1 - Stage 1
Relay at connection point 19

Radiator fan 1 - Stage 2
Relay at connection point 20

Radiator fan 2 - Stage 1
Relay at connection point 21

Radiator fan 2 - Stage 2
Relay at connection point 22

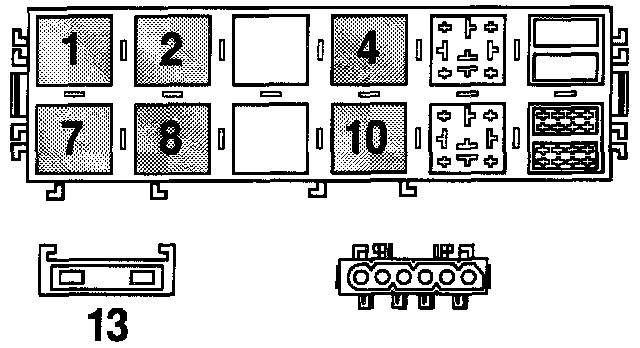

Relay Carrier 2:




Relay Carrier 2 (in the rear):

DME relay at connection point 1

Ignition, injection and oxygen sensor heating relay at connection point 2

A/C compressor relay at connection point 4

Start-inhibit relay at connection point 7

Engine compartment fan relay at connection point 8

Secondary air pump relay at connection point 10

Secondary air pump fuse on fuse carrier 13

Fuse Carrier:




Assignment on Fuse Carrier (in the footwell):

Fuse holder C
(Third row from the top)

Fuse C 1 - DME relay

Fuse C 2 - Ignition, injection and oxygen sensor heating relay

Fuse C 4 - Fuel pump relay

Fuse C 8 - Radiator fan 2

Fuse C 10 - Radiator fan 1
