P1217

P1217
Fuel Injector, cylinder 5 - Short to B+
P1229
Fuel Injector, cylinder 5 - Short to Ground
P1241
Fuel Injector, cylinder 5 - Interruption

Function:
The coil of the fuel injector is supplied on one side with B+ (battery voltage) and on the other with ground via an end stage of the ECM.
For these faults the connection to ground is monitored.

Diagnostic Conditions:
A fault is recognized and stored in memory when the engine speed is above 80 rpm and the battery voltage is between 7.5 Volt and 17 Volt.

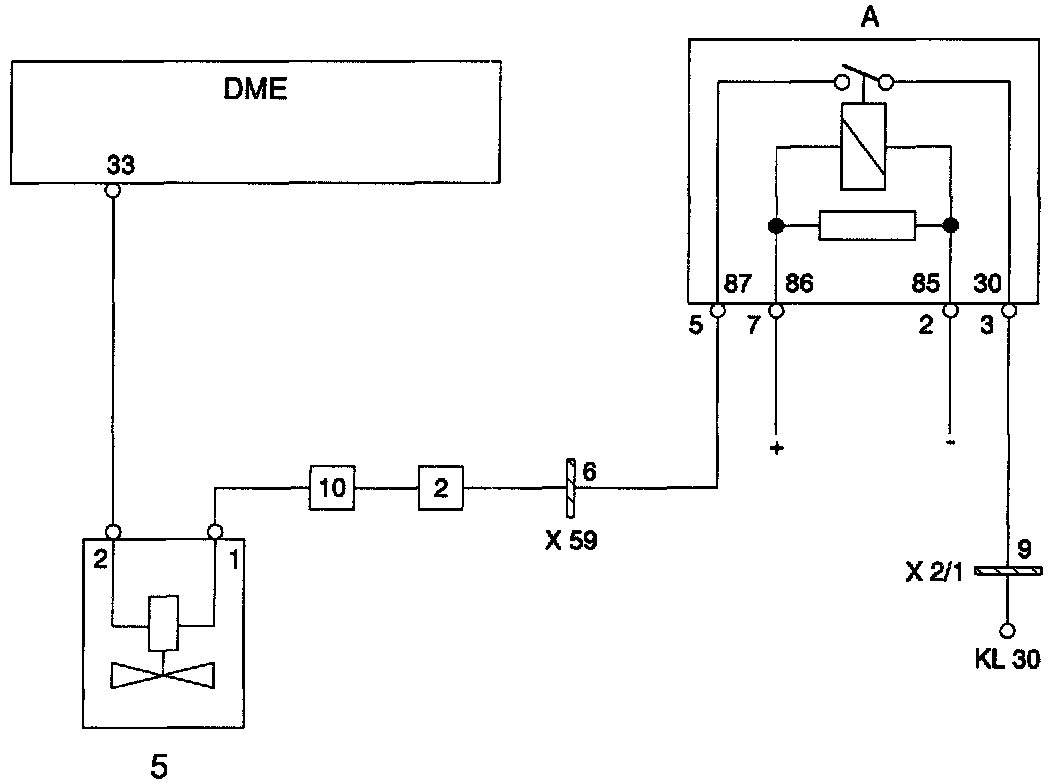

Wiring Diagram:



Image Legend:
A. Injection, ignition and oxygen sensor heating relay




Diagnostic Procedure:
1. Check fuel injector.
1. Remove connector of injector 5.
2. Connect ohmmeter to pin 1 and pin 2 of injector.

Specified Value: 11 - 13 Ohms at 2O°C.

2. Check wiring.
1. Connect special tool 9616 to wiring harness.
2. Remove connector on fuel injector.
3. Connect ohmmeter to special tool 9616 pin 33 and fuel injector connector pin 2.

Specified Value: 0 - 5 Ohms.

4. Connect ohmmeter to special tool 9616 pin 33 and ground.

Specified Value: Infinite Ohms.

5. Connect voltmeter to special tool 9616 pin 33 and ground.
Ignition on.

Specified Value: 0 Volt.

If the measured values are not achieved, check wiring harness for chafing and pinching damage.
