P1141

P1141

Throttle Position Sensor 2 - Below Limit

Diagnosis conditions
- Engine running

Possible fault cause
- Short circuit in wiring
- Throttle position sensor faulty
- DME control module faulty

Affected terminals
Terminal I/7, I/9, III/8, III/10 and III/25

Diagnosis/Troubleshooting






Figure 1:






Figure 2:

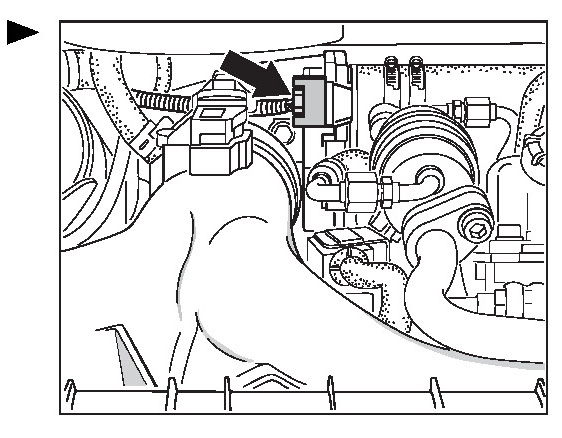

Disconnection point throttle part:






NOTE: The wires to the throttle part are routed via connector X 59/2.
