Fuel Injector, Cylinder 3 Above Limit

P1217 - FUEL INJECTOR, CYLINDER 3 ABOVE LIMIT

Diagnosis conditions
- Engine running
- Battery voltage greater than 7 V

Possible fault cause
- Fuel injector (coil) short circuit
- Short circuit to B+ in wiring
- DME control module

Affected terminals
- Terminal III/15

NOTE: Short to B+ causes the fuel injector to be continually closed.

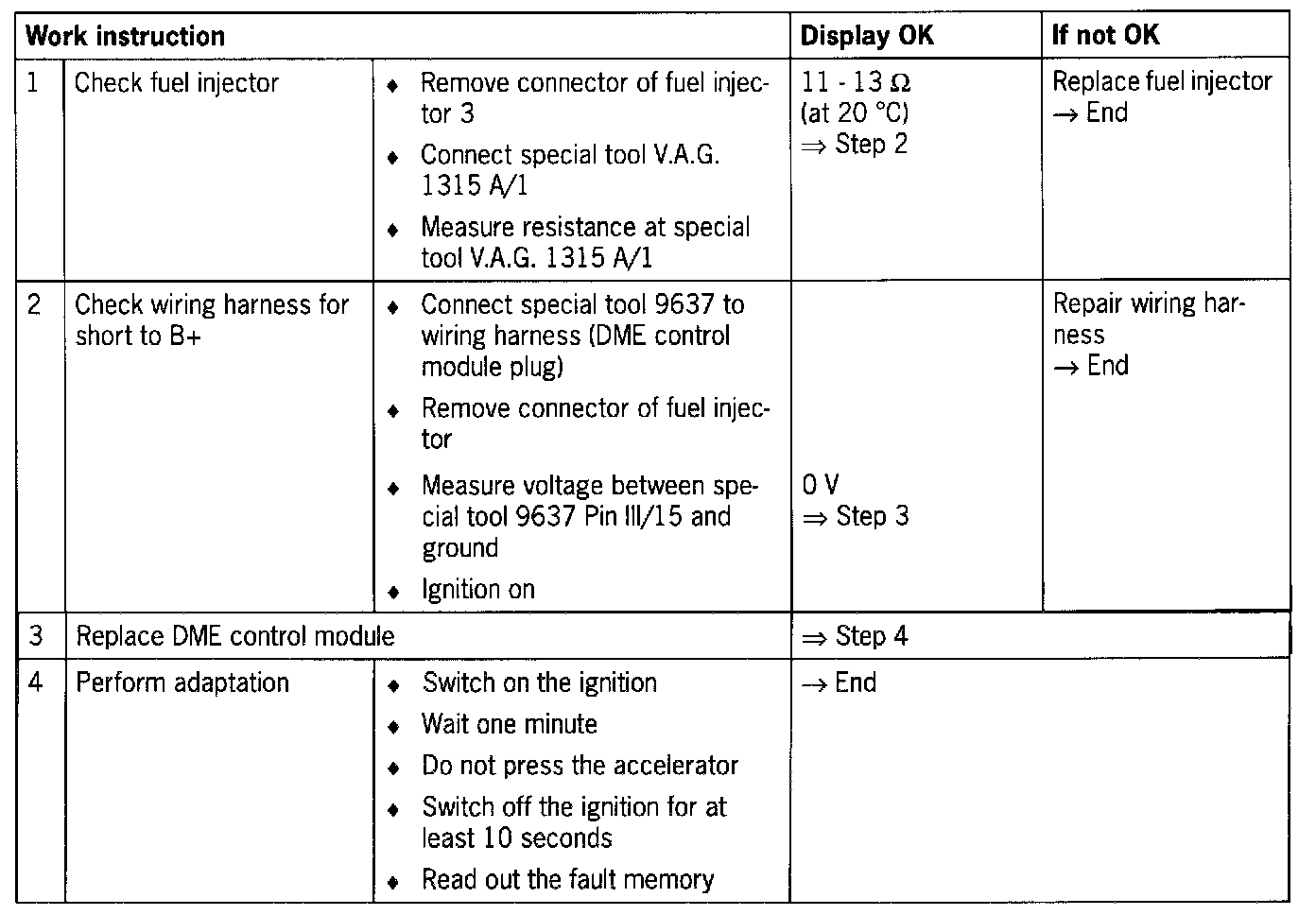

Diagnosis/Troubleshooting

Steps 1 - 4:
