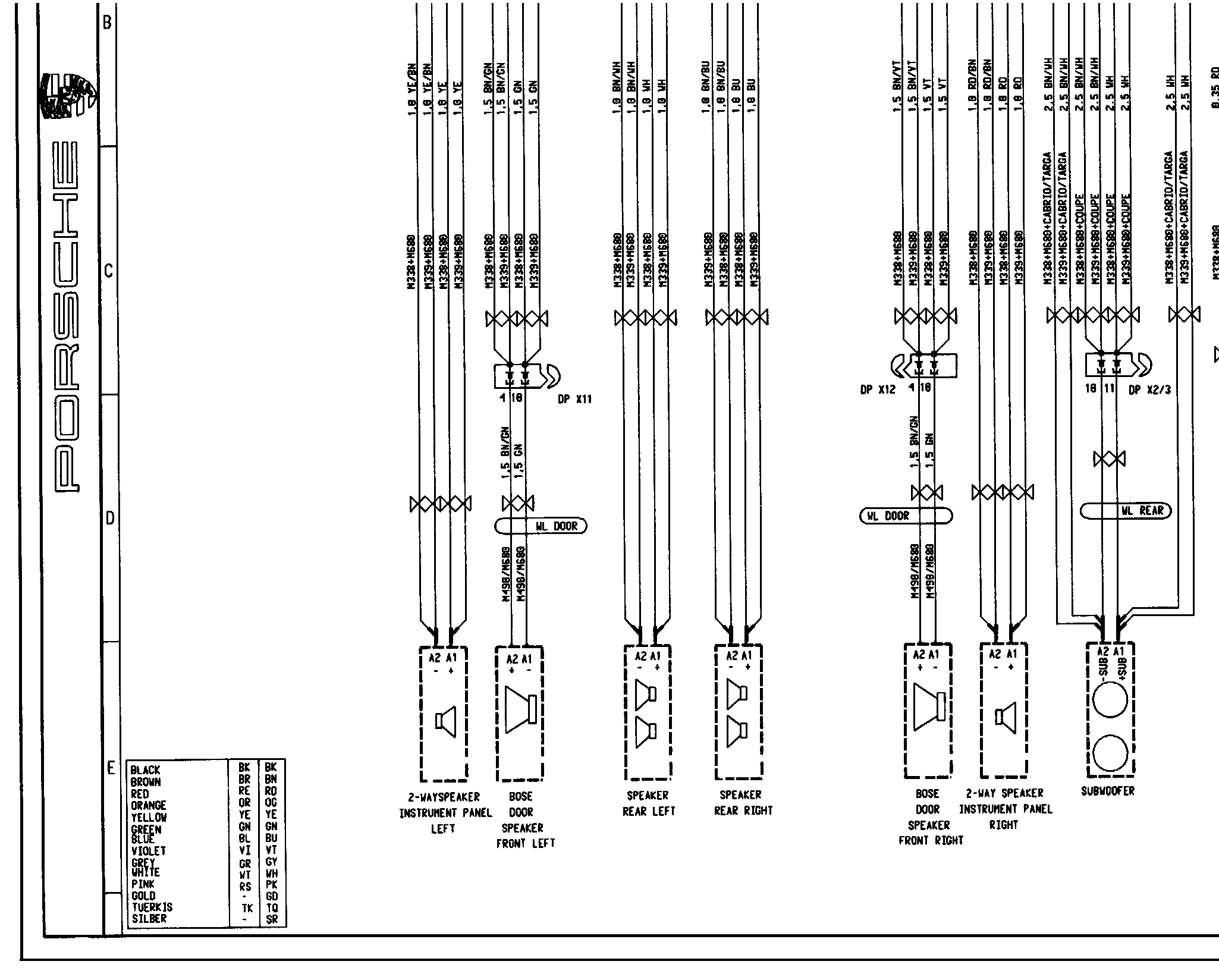

Bose Sound Package - Digital - Sheet 13B

�>E�H>E�a>E:

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
