Operation CHARM: Car repair manuals for everyone.
Home >> Porsche >> 2003 >> 911 GT2 (996) F6-3.6L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> CLS Alarm System (LHD)

CLS Alarm System (LHD)

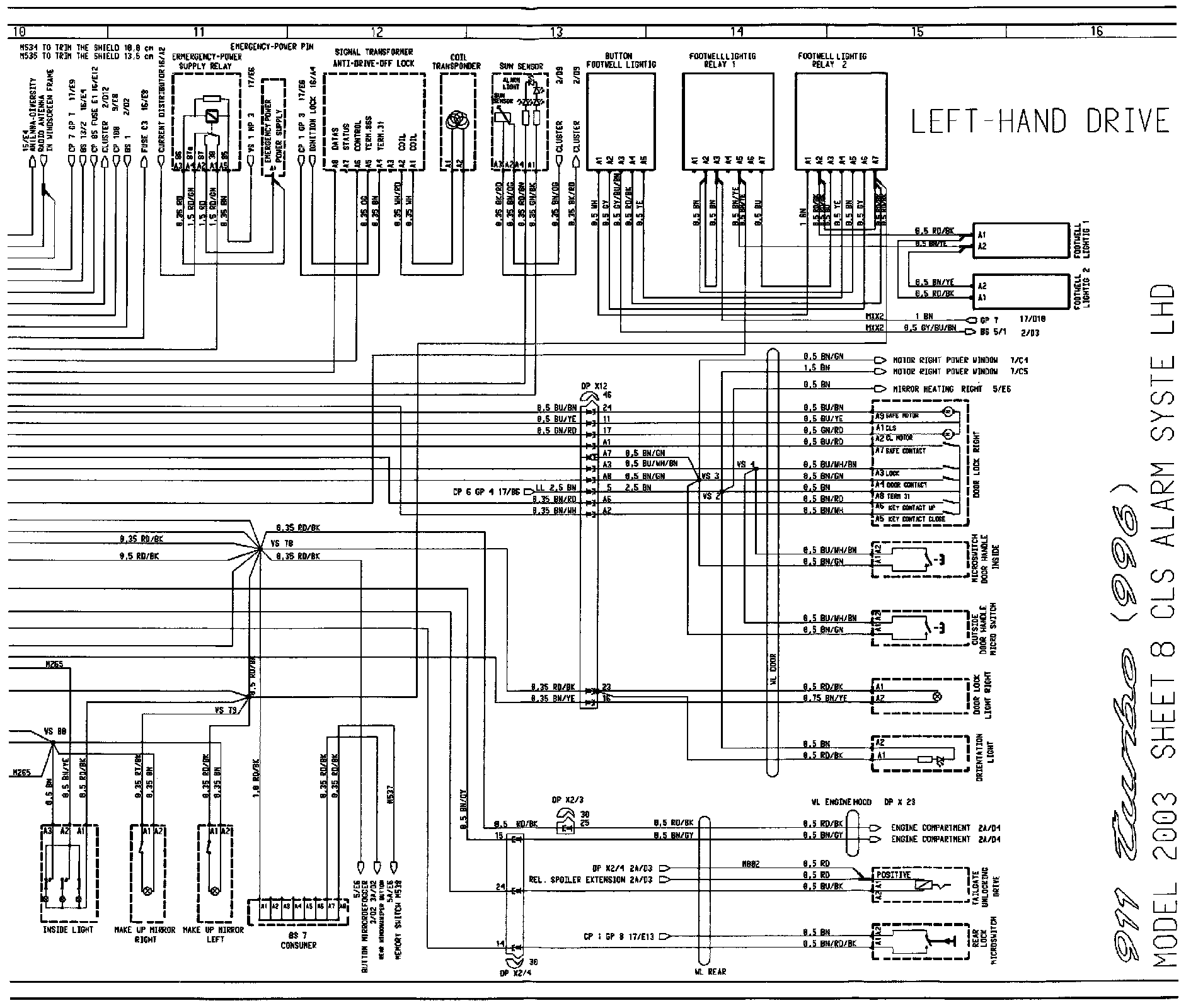

Part 1:

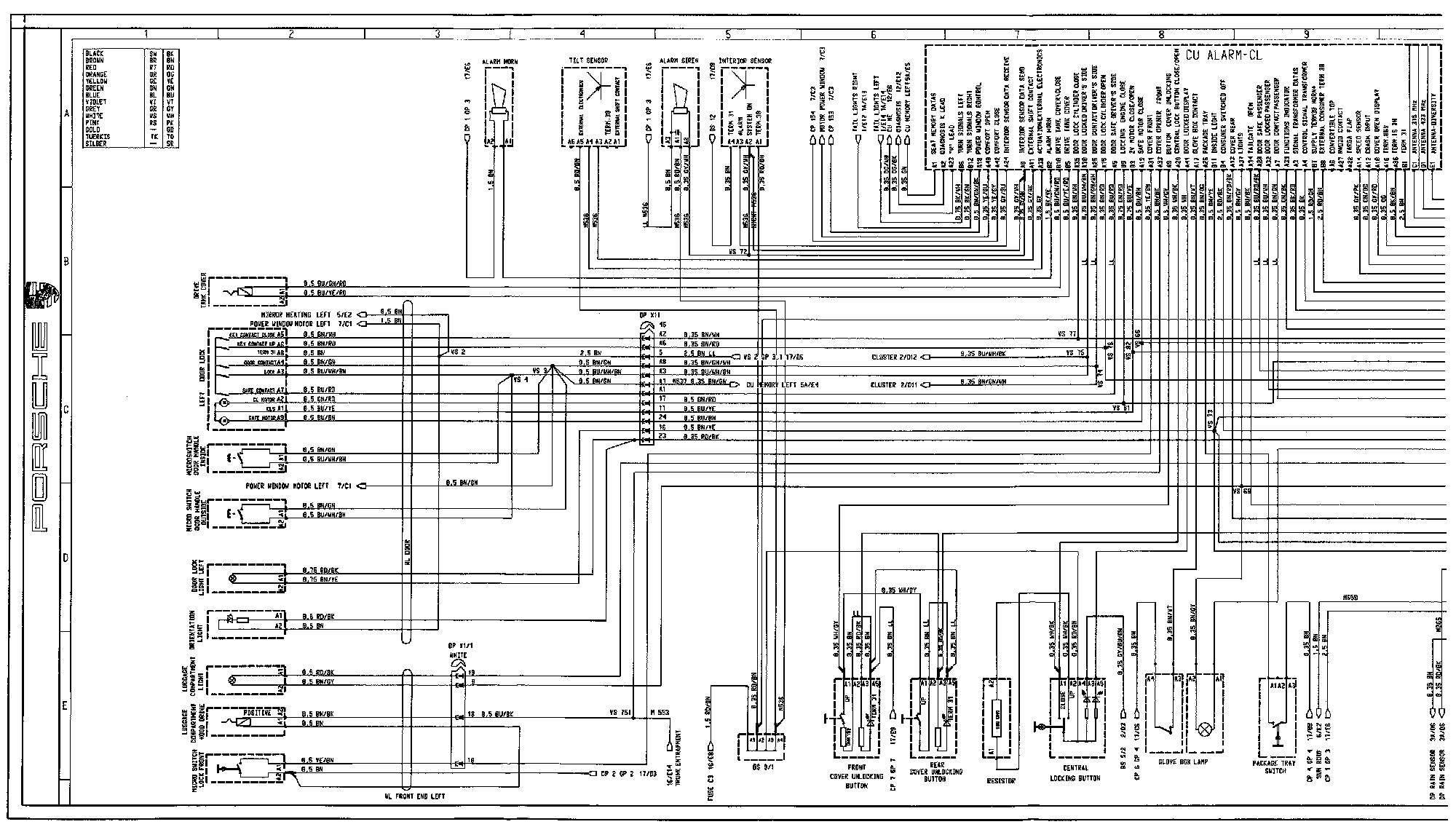

Part 2:
