Operation CHARM: Car repair manuals for everyone.
Home >> Porsche >> 2003 >> 911 GT2 (996) F6-3.6L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Supply >> Power Supply, GT2 and 996T

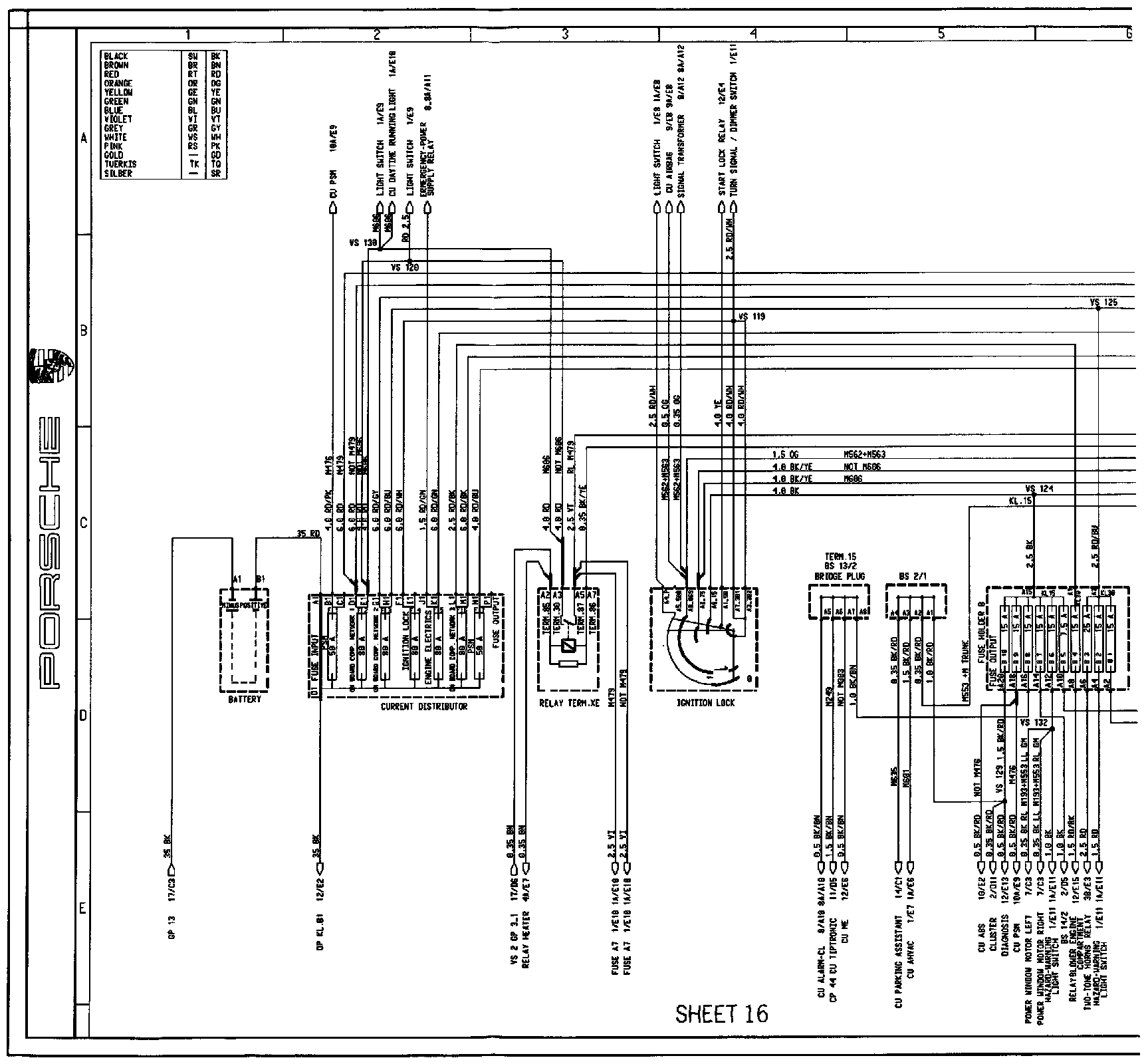

Power Supply, GT2 and 996T



Part 1:




Part 2:
