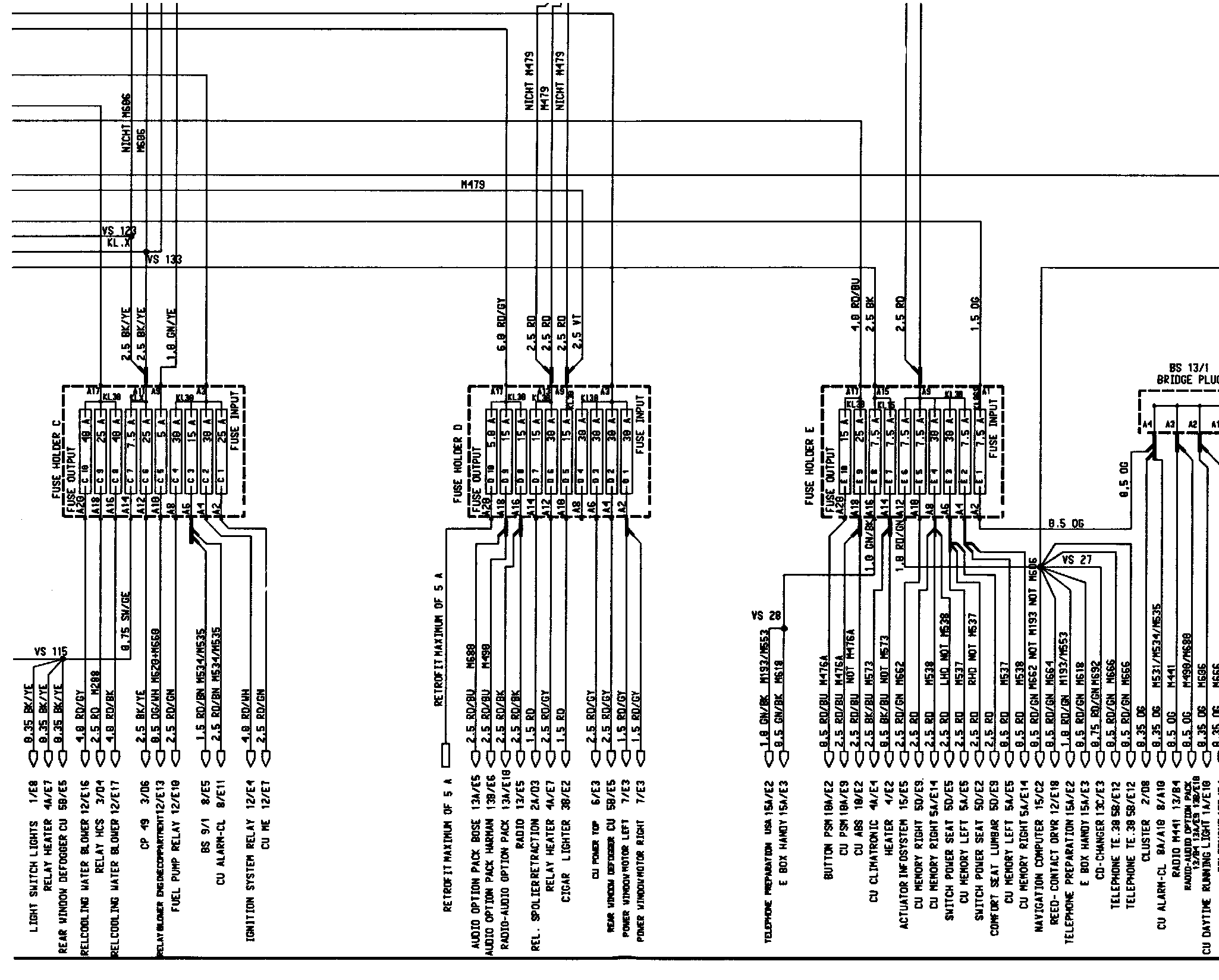

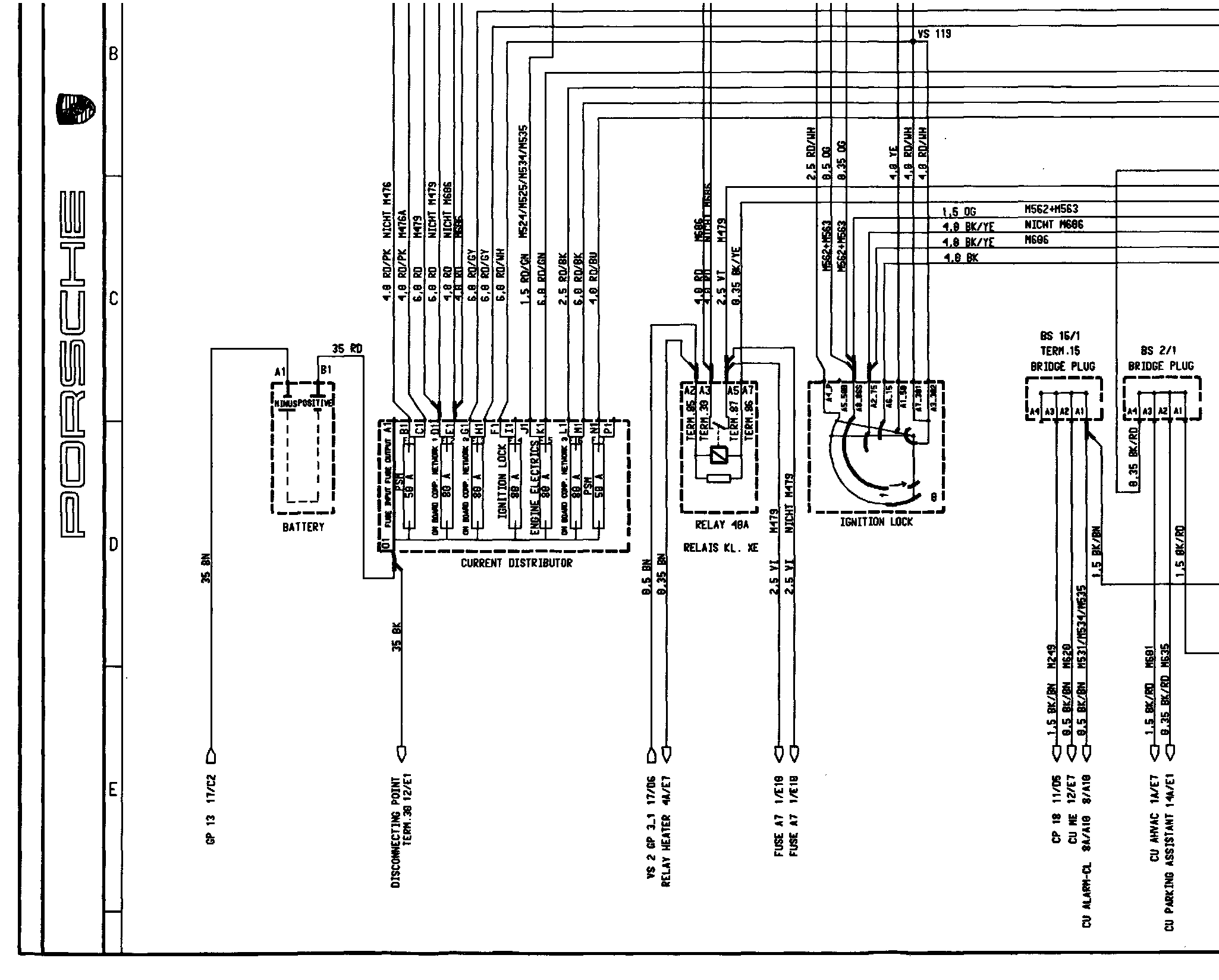

Power Supply - Sheet 16

A�9�H�9b�9Part 1:

"��9��9��9Part 2:

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
