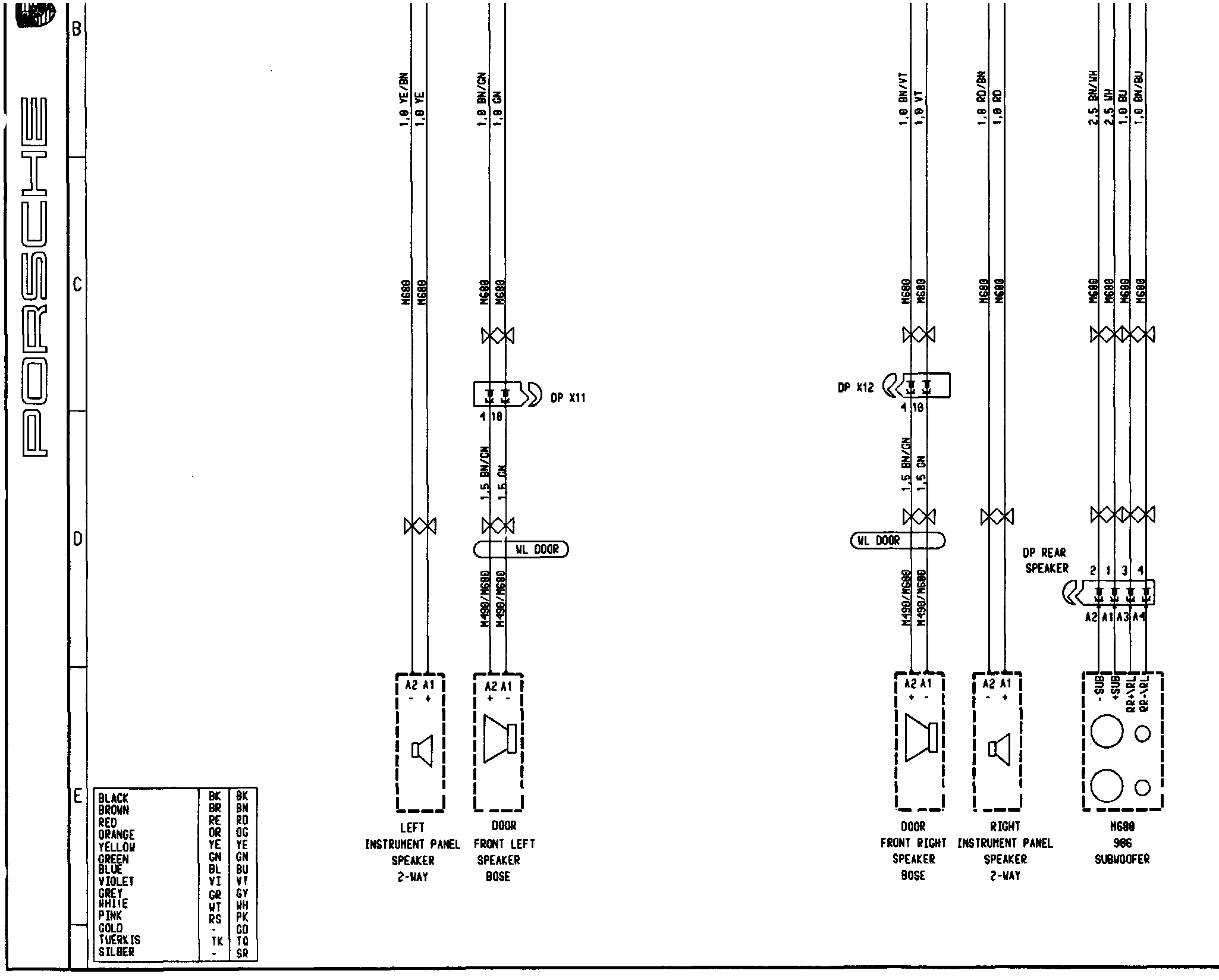

Audio Option Pack Bose - Sheet 13B
D7*EX*Ek*E:
Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
