Cabin Ventilation Grille: Service and Repair

Removing and Installing Ventilation Cover







Removing Ventilation Cover
- Remove rear apron.
- Remove warning triangle (right side only).
- Remove rear luggage compartment side-panel lining.

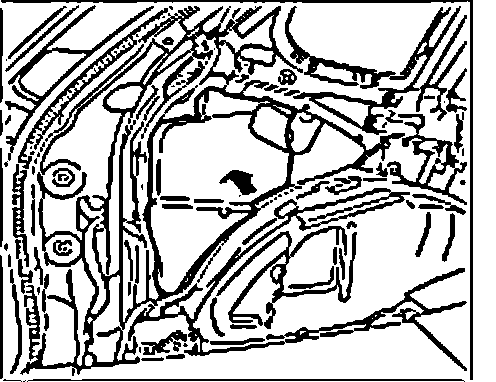

1. Remove styrofoam element (left side only) -arrow-.

NOTE: Simply push the styrofoam element aside when removing the right ventilation cover.

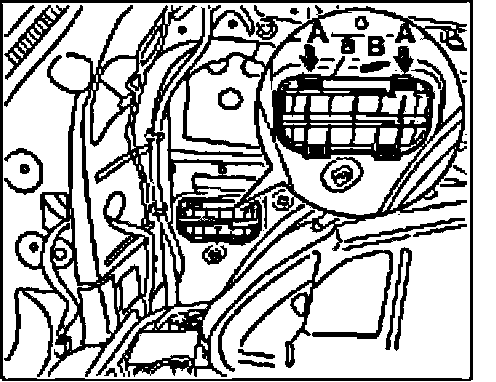

2. Press upper locking tabs down -arrow A-, press the upper edge -a- of the ventilation cover outwards -arrow B- and remove it.

Installing Ventilation Cover

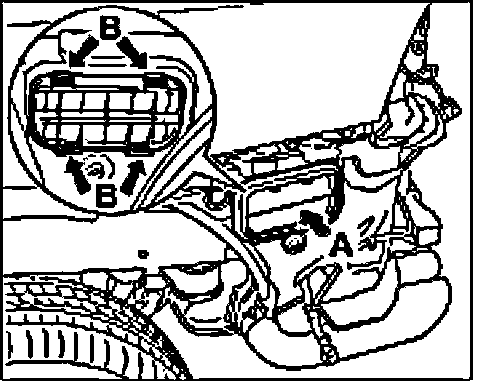

1. Push in the ventilation cover -arrow A- until you feel the locking tabs -B- engage.







2. Insert styrofoam element -arrow-.
- Install rear luggage compartment side-panel lining.
- Insert warning triangle (right side only).
- Install rear apron.
