Body - Front Skid Plate Installation
Cayenne10/03 6361
Binder 6, Body Equipment
Date: 8-22-03
Stainless Steel Front Cover Installation Instructions
Vehicle Type:
Cayenne S / Cayenne Turbo
Model Year:
As of '03 (3)
Concern:
Stainless steel front cover installation instructions.
Information:

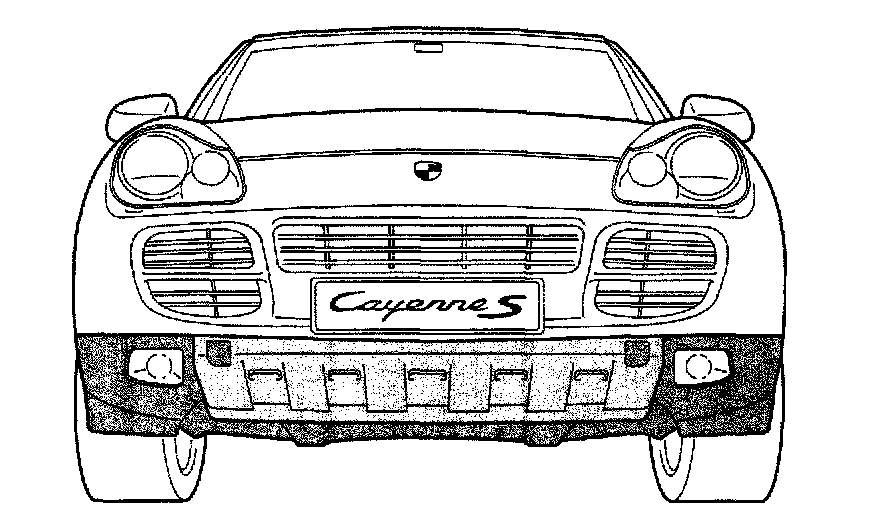

The stainless steel front cover emphasizes the off-road character and matches other the bright metal accents of the Cayenne. The standard front overhang angle is not reduced by the stainless steel cover.
For the vehicles delivered as model year 03 (3), there is the possibility that there are no markings on the inside of the front cover bottom section (referred to as spoiler throughout these instructions). If this is the case, a new spoiler must be ordered. In addition, the new spoiler for the Cayenne Turbo is delivered primed and must be painted.
Parts Information:

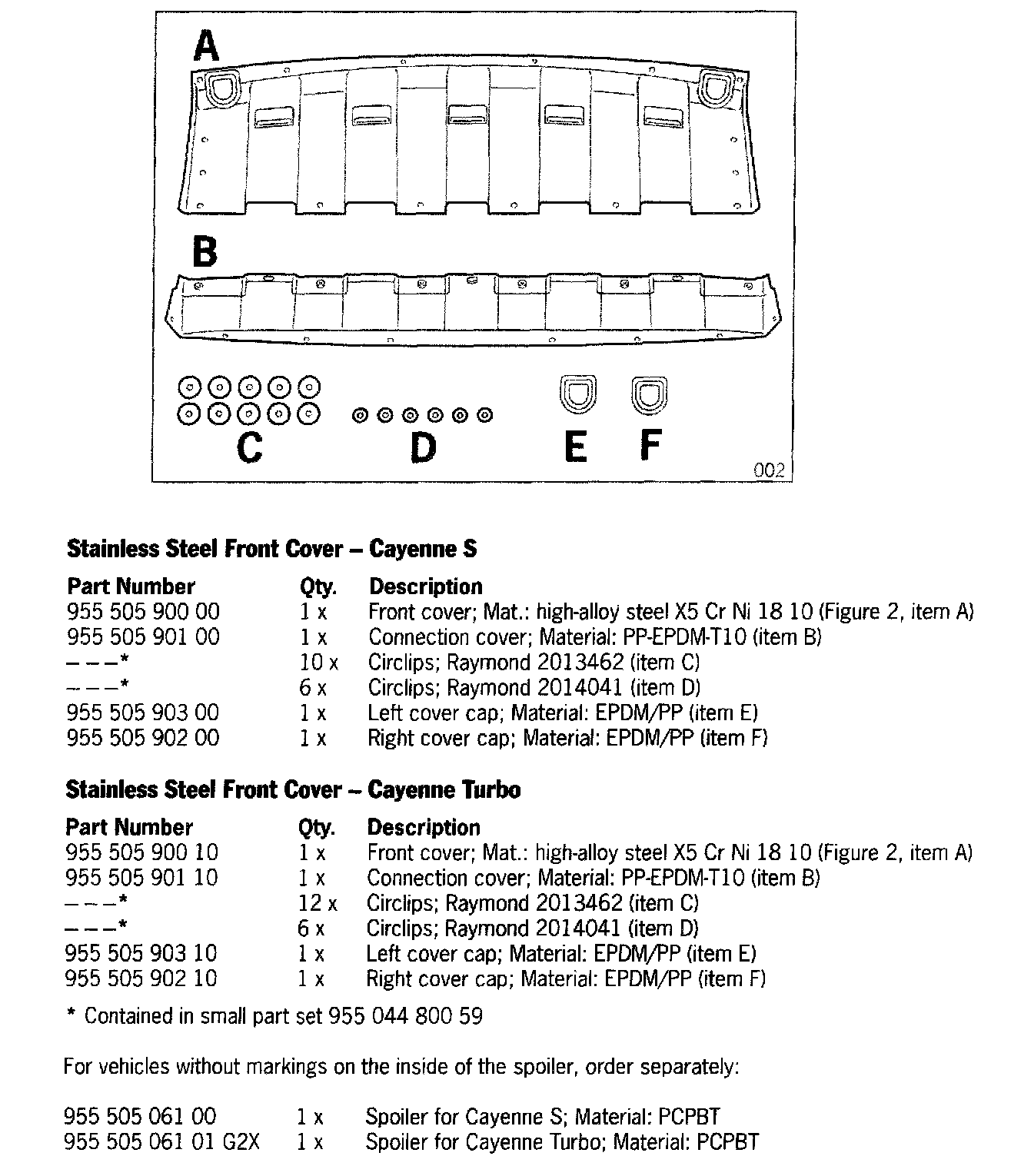

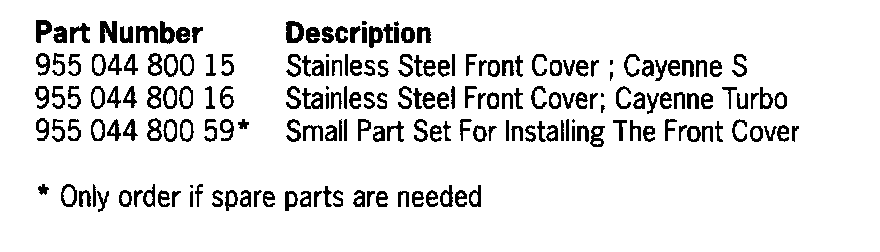

Parts List:
Warnings:
Warning!
Risk of short circuit and fire - due to work on vehicle electrical system.
> When working on the electrical system, the battery must be disconnected and covered.
> Always route the electrical leads without tensile stress and so that no chafing occurs and secure with tie-wraps/insulating tape to existing lines/components.
Caution!
Damage or warping can occur on components - in the event of improper painting and drying processes.
> Observe the specifications and instructions for the painting of plastics as contained in the Paint Manual.
> During the painting and drying process, place the parts free of tension on the painting fixtures provided for this purpose.
Materials:
Paint, corresponding to color code of vehicle - refer to Paint Manual Tie-wraps

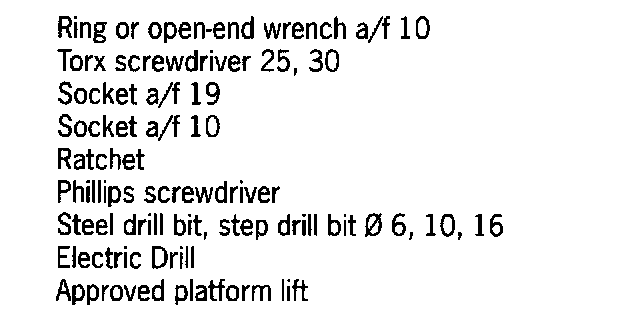

Tools:
Work Procedure:
1. Preparatory work.
1.1 Remove spoiler from the front spoiler.
1.2 Only for Cayenne Turbo:
Remove license plate bracket - see Technical Manual.
1.3 Remove fog lights, spoiler lips with brace, and mounting elements from the spoiler.
2. Preparing the spoiler.

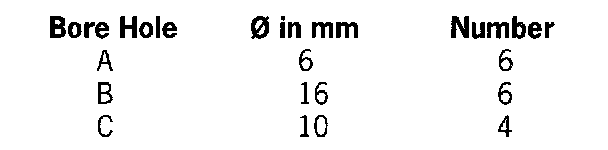

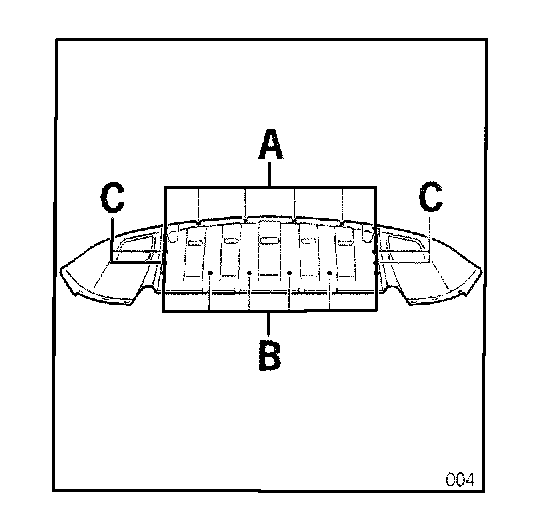

2.1 Drill fastening holes in the spoiler.
Note:
The fastening holes are to be drilled in the center of the recess.
Important:
The reinforcements (arrows) on the cutout of the towing hook must be retained for stability in the spoiler.

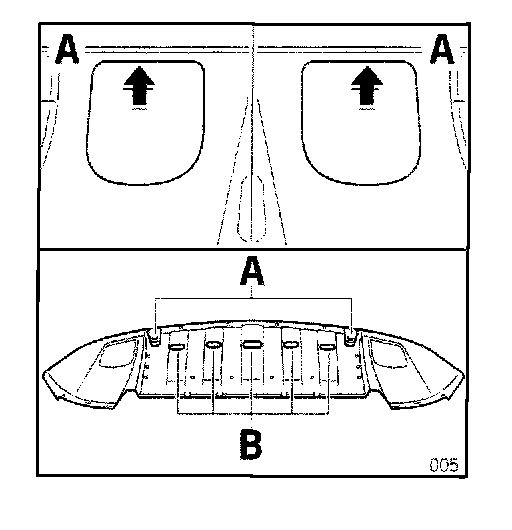

2.2 Prepare cutouts for the towing lugs (A) and the stainless steel front cover (B) in the spoiler.
Note:
Make the cutouts approx. 5 mm larger than the recesses.
3. Only for Cayenne Turbo:
Paint the new spoiler (with markings on the inside) according to the Paint Manual.
4. Completing the front spoiler.

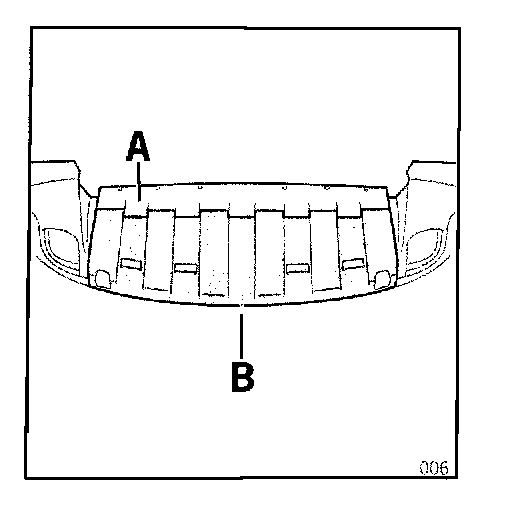

4.1 Place connection cover (A) and the stainless steel front cover (B) on the spoiler.

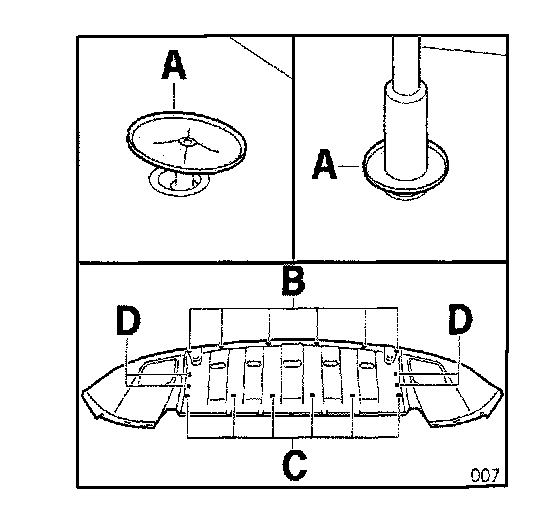

4.2 Fasten the connection cover and stainless steel front cover with circlips (A).
Note:
Fit the small circlips in area (B).
Fit the large circlips in area (C and D).
5. Completing the vehicle.
5.1 Mount the mounting elements, fog lights, and spoiler lips with a brace on the spoiler.
5.2 Only for Cayenne Turbo: Install the license plate bracket.
5.3 Fit spoiler on the front spoiler.
5.4 Fit the front spoiler - see Technical Manual.
Working Time:
Literature:
Paint Manual, 4/6/8 cylinder; Chapter "Plastic painting"
Cayenne Technical Manual,
Group 6
> Repair 63 15 19 - Removing and installing front spoiler
