Removal and Replacement

Removing And Installing Convertible Top

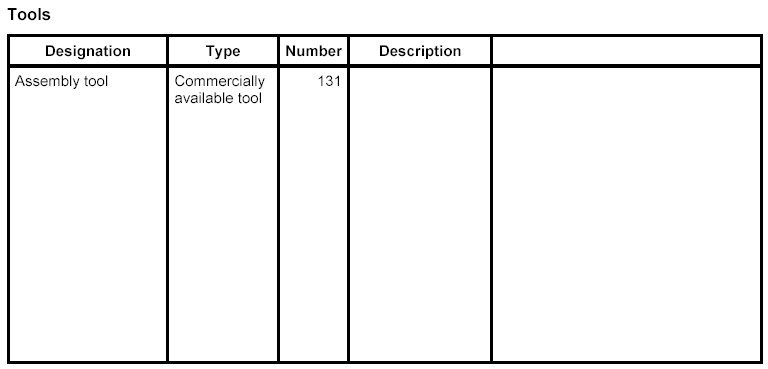

Tools

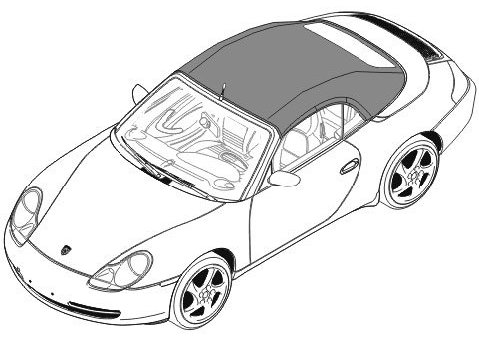

Illustrated on the 911 Carrera Cabriolet (996)







Diagram of convertible top

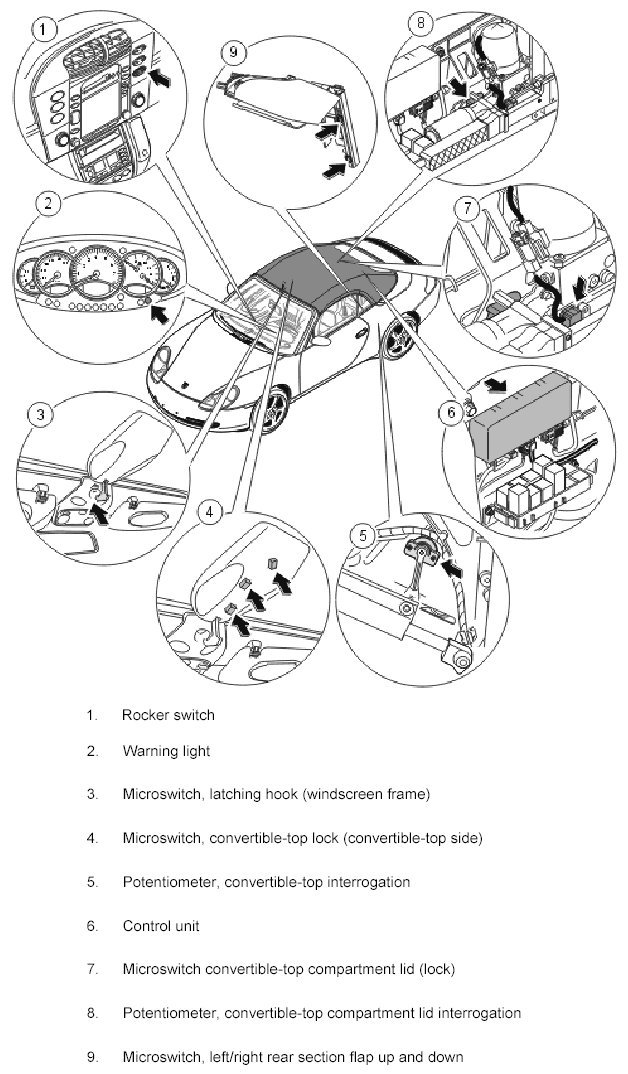

Overview of convertible-top components







The convertible top is actuated up to model year 2002 if:

Terminal 15 is connected via ignition.
The parking brake input is connected to ground (parking brake engaged).
No speedometer signals greater than 5 km/h (3 mph) are present.
Engine compartment lid is closed (input not at ground potential).

The convertible top is actuated as of model year 2003. if:

Terminal 15 is connected via ignition.
The parking brake input is connected to ground (parking brake engaged).
No speedometer signals greater than 50 km/h (30 mph) are present.
Engine compartment lid is closed (input not at ground potential).

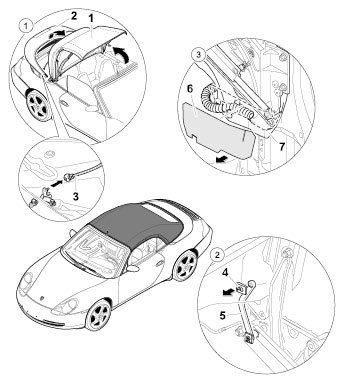

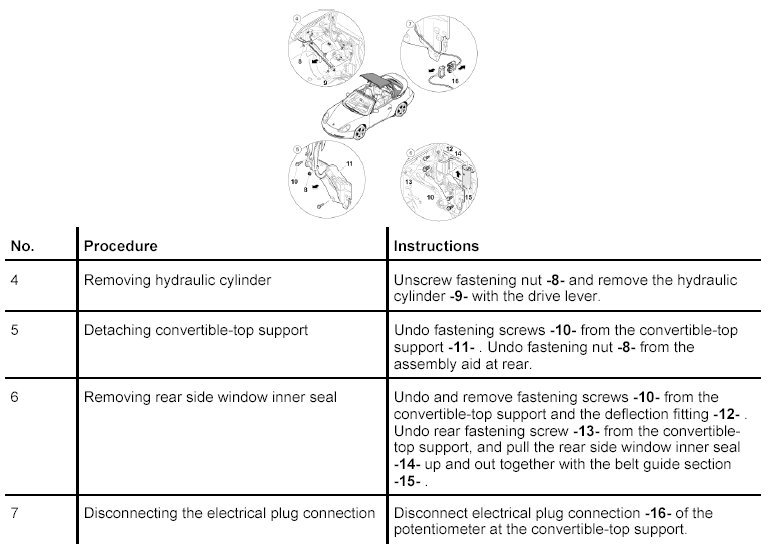

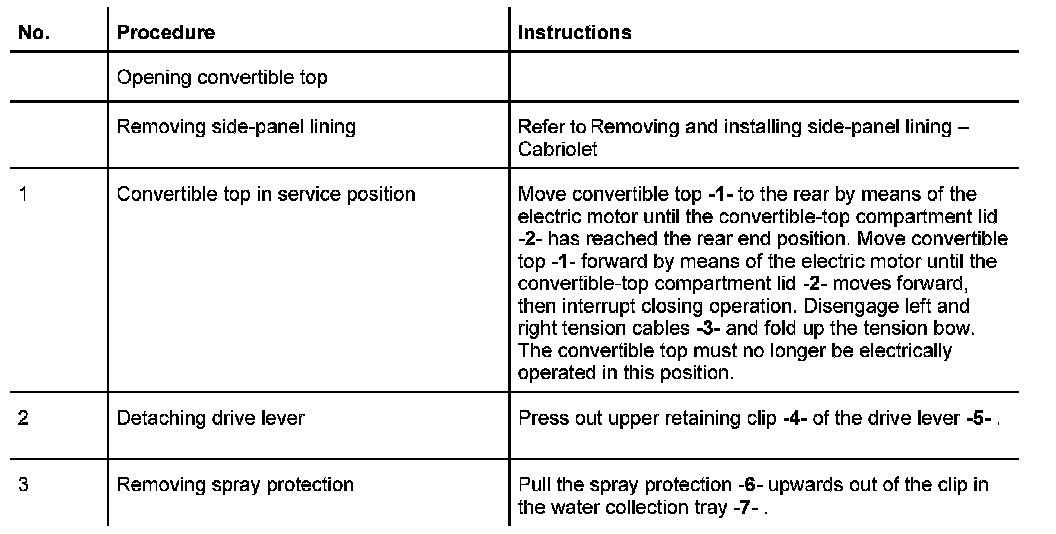

Removing convertible top







CAUTION: Damage to or destruction of the tension bow seal. During the procedure 'convertible top in service position'
- Proceed according to procedure No. 1 in order to avoid damage to or destruction of the tension bow seal.

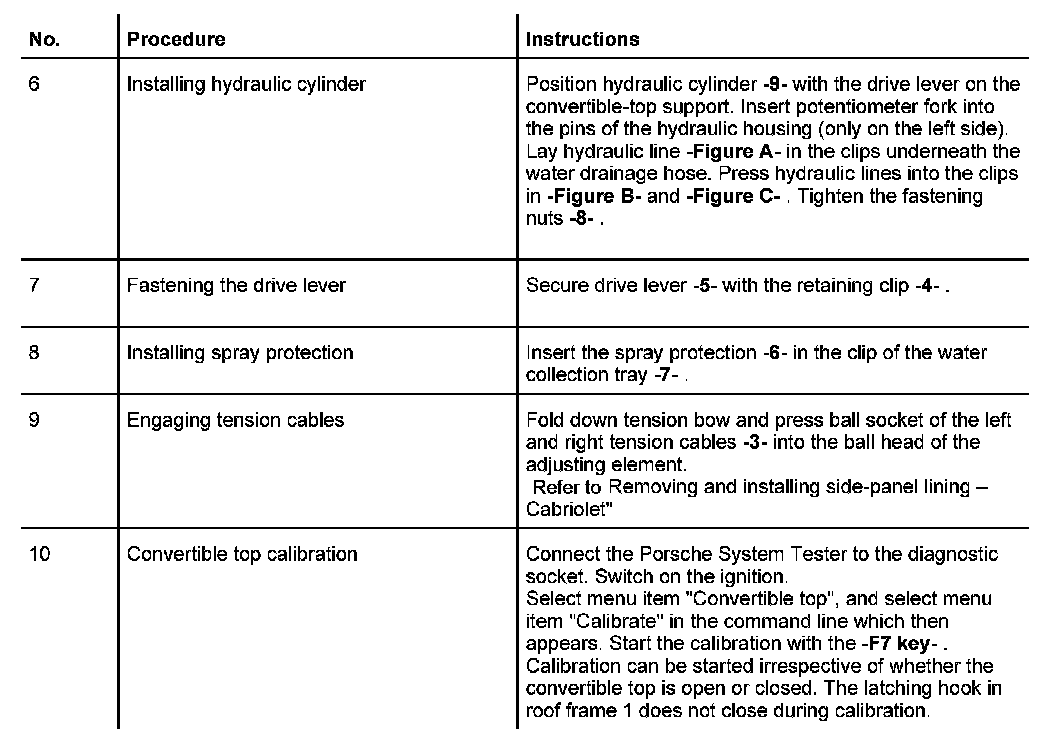

Installing convertible top










CAUTION: Damage to hydraulic system if hydraulic lines are trapped or crushed during installation
- Pay special attention when routing the hydraulic lines in the clips.







Tightening torques

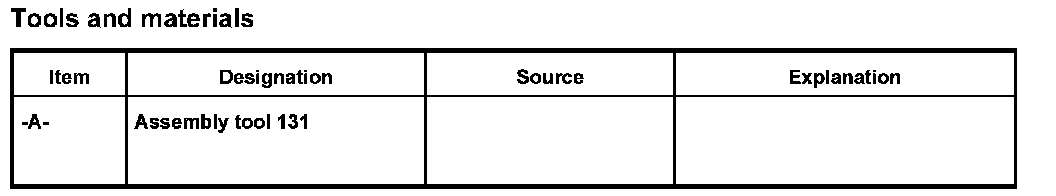

Tools and materials
