505519 Removing and installing Wing
Overview:

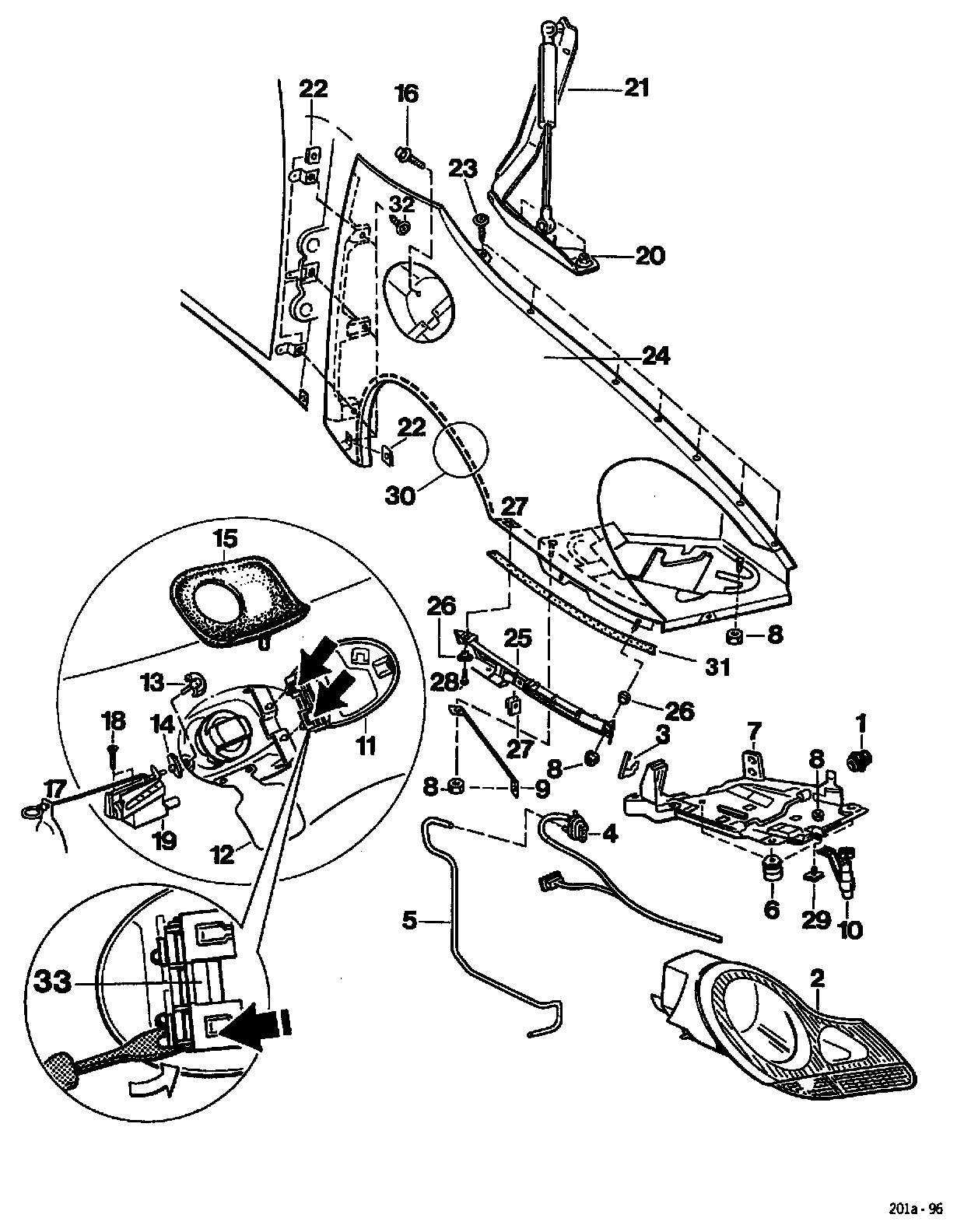

Exploded View:
Before removing the wing, it is necessary to remove the wheel, the wheel housing liner and the carbon canister.
Steps No. 1 - 10:
Steps No. 11 - 24:

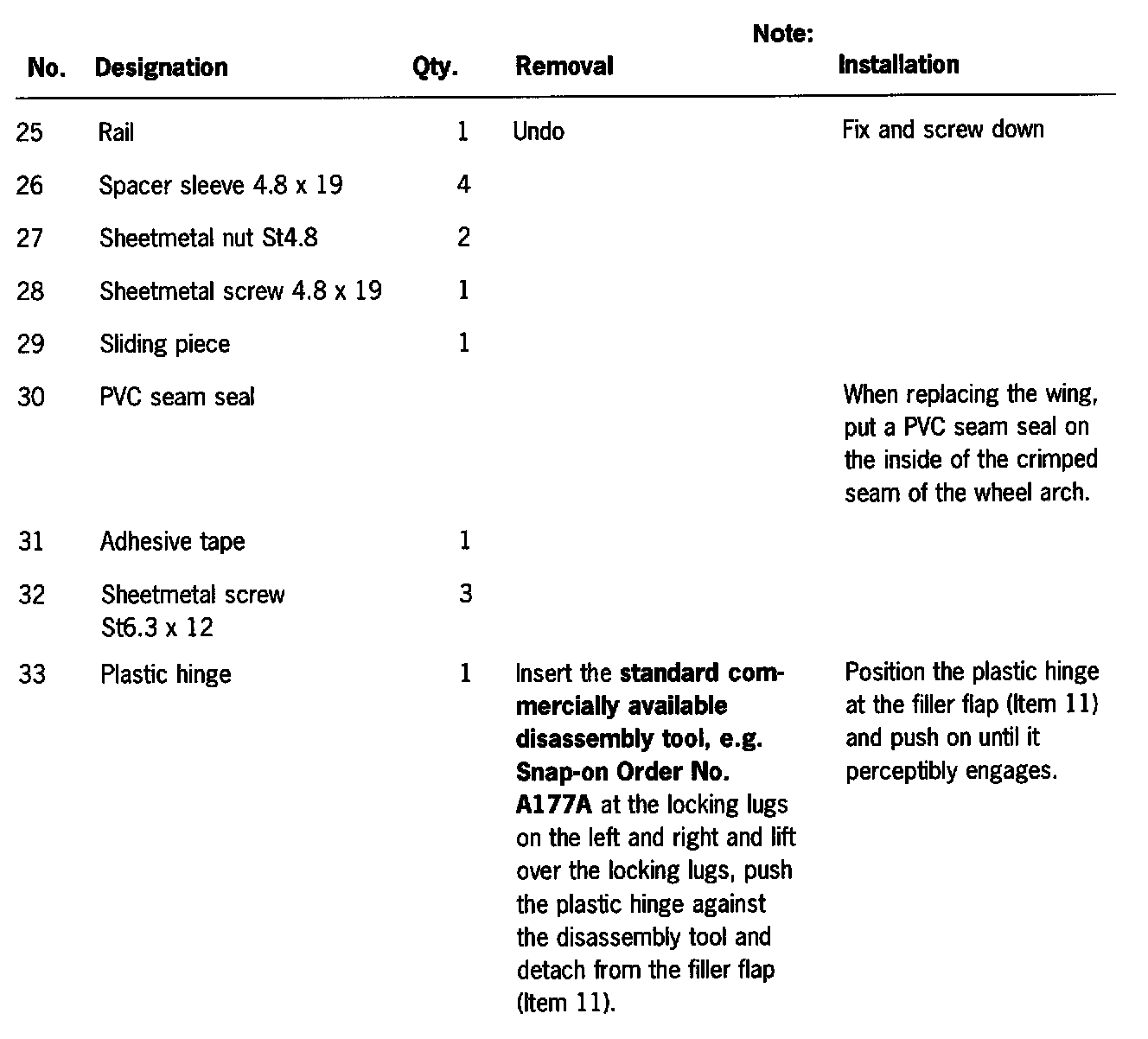

Steps No. 25 - 33:
Before removing the wing, it is necessary to remove the wheel, the wheel housing liner and the carbon canister.
