CD Changer Component Arrangement

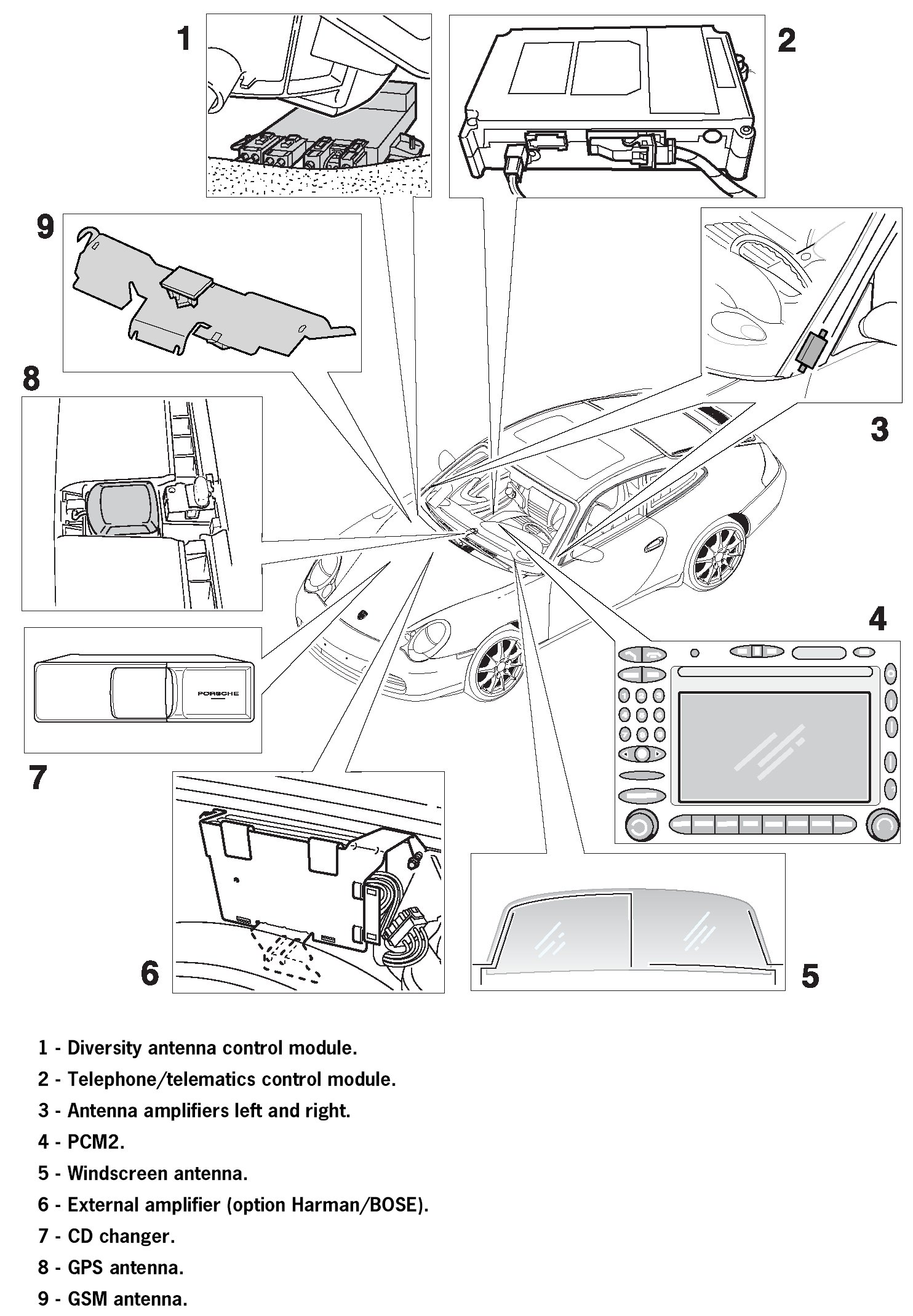

CD Changer Component Arrangement:



Component Arrangement - Loudspeaker Base:



Component Arrangement - Loudspeaker Sound Package:



Component Arrangement - High-End Loudspeaker:
