Fault Code 11
Fault Code 11
Solenoid 2
Diagnostic conditions
- Ignition on
Possible cause of fault
- Short circuit to positive between roll-over protection control unit and solenoid 2
- Control unit roll-over protection faulty
Affected pins
Pin 17 and pin 21

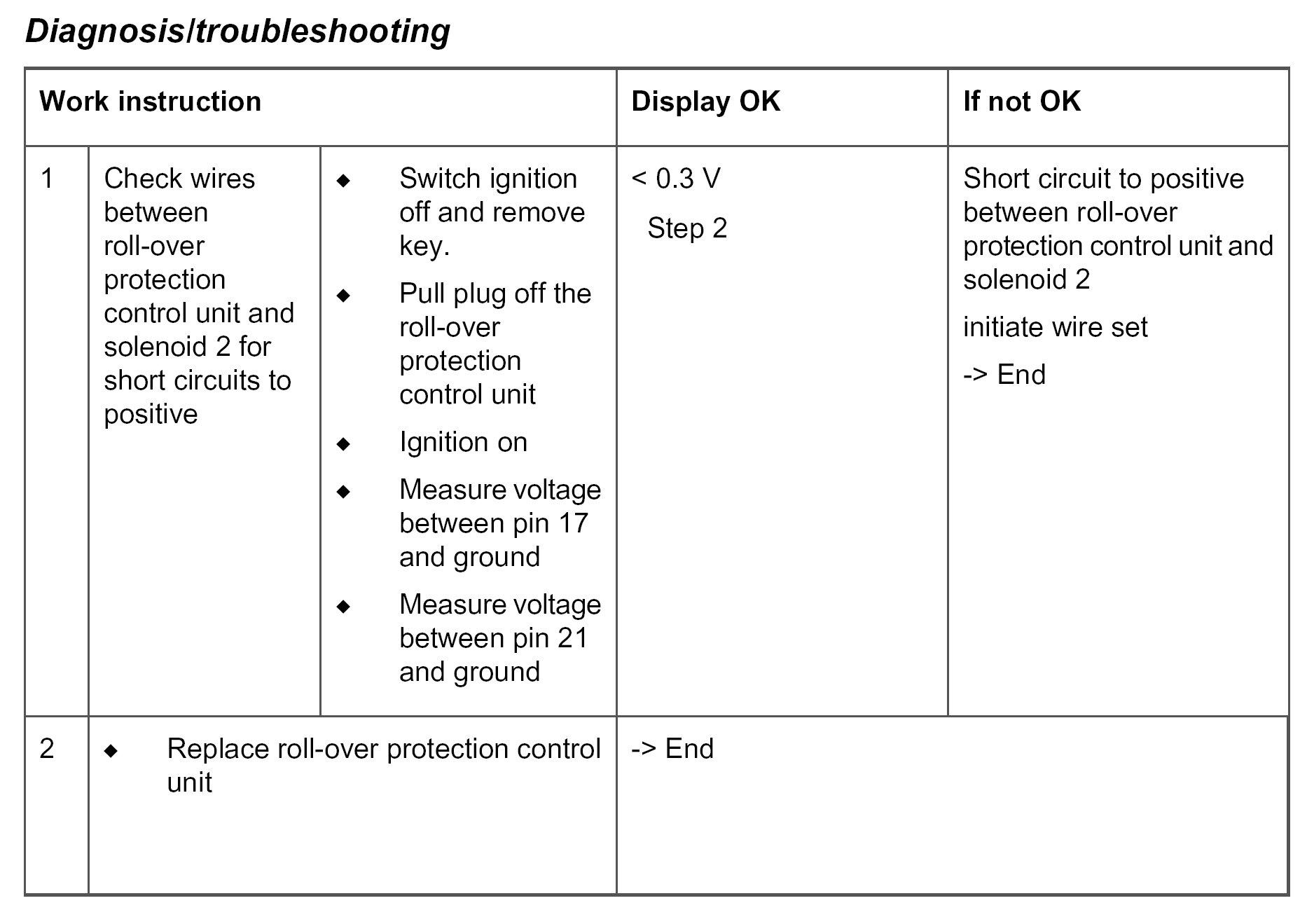

Diagnosis/troubleshooting
Dianosis/troubleshooting:
