Branching Point: Service and Repair

Removing And Installing Current Distributor

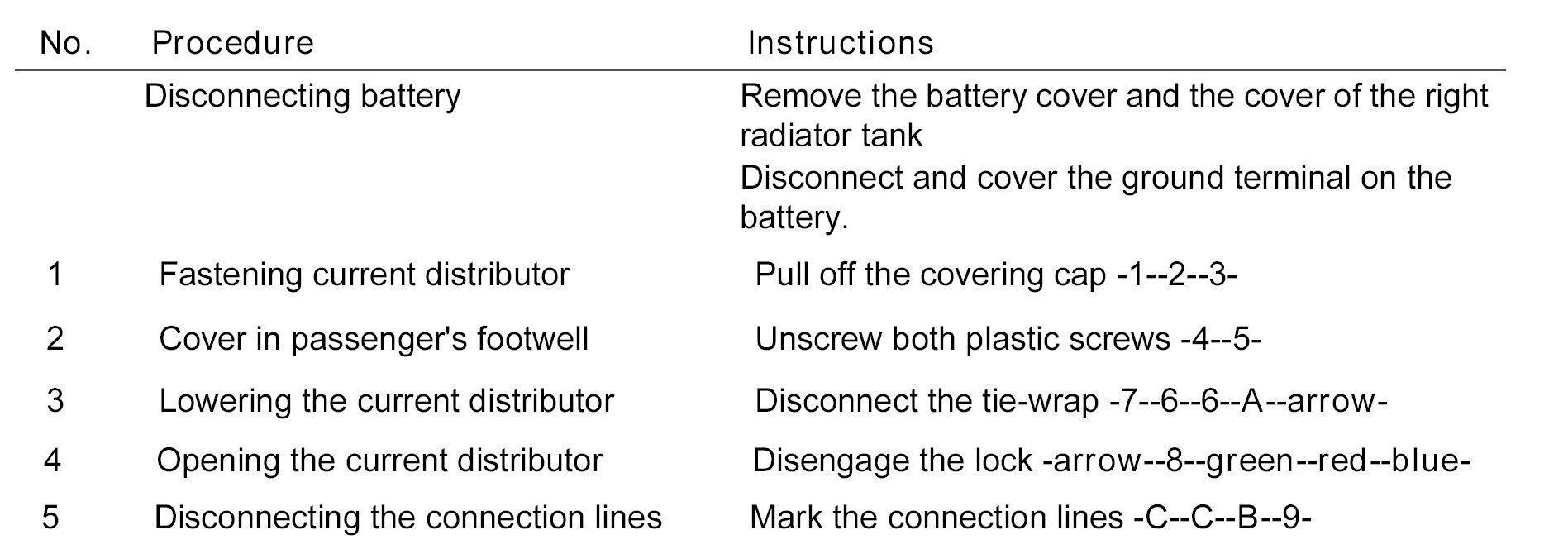

Removing current distributor










Installing the current distributor

NOTE: The following spare parts must be installed again:

Hexagon nut M 6, 7 pieces
Hexagon nut M 8, 2 pieces
Service label, red
Depending on condition, flange seal current distributor/firewall
Tie-wraps
