Removing and Installing the Instrument Panel and Instrument Panel Bracket



Removing And Installing The Instrument Panel And Instrument Panel Bracket

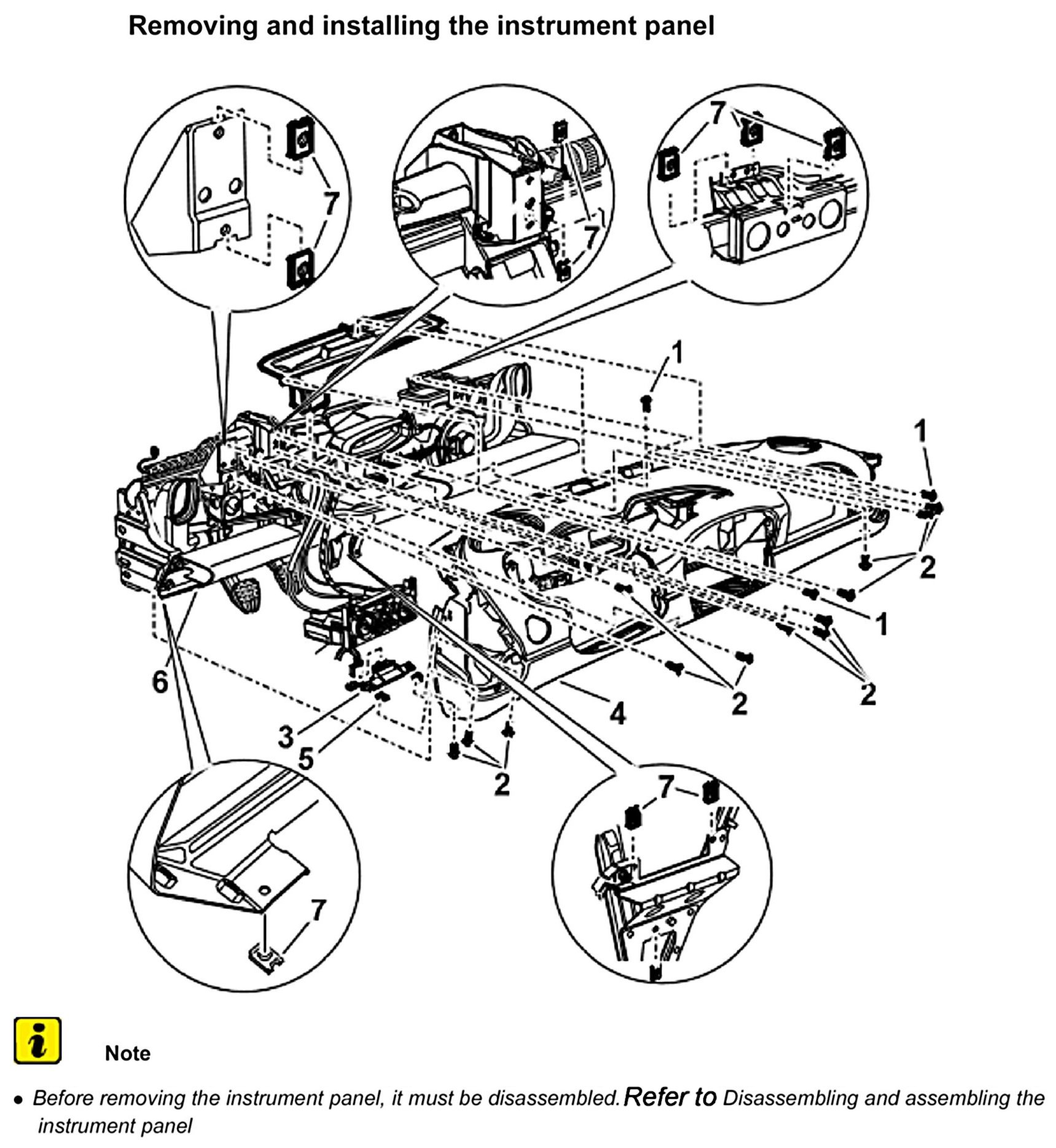

Removing and installing the instrument panel

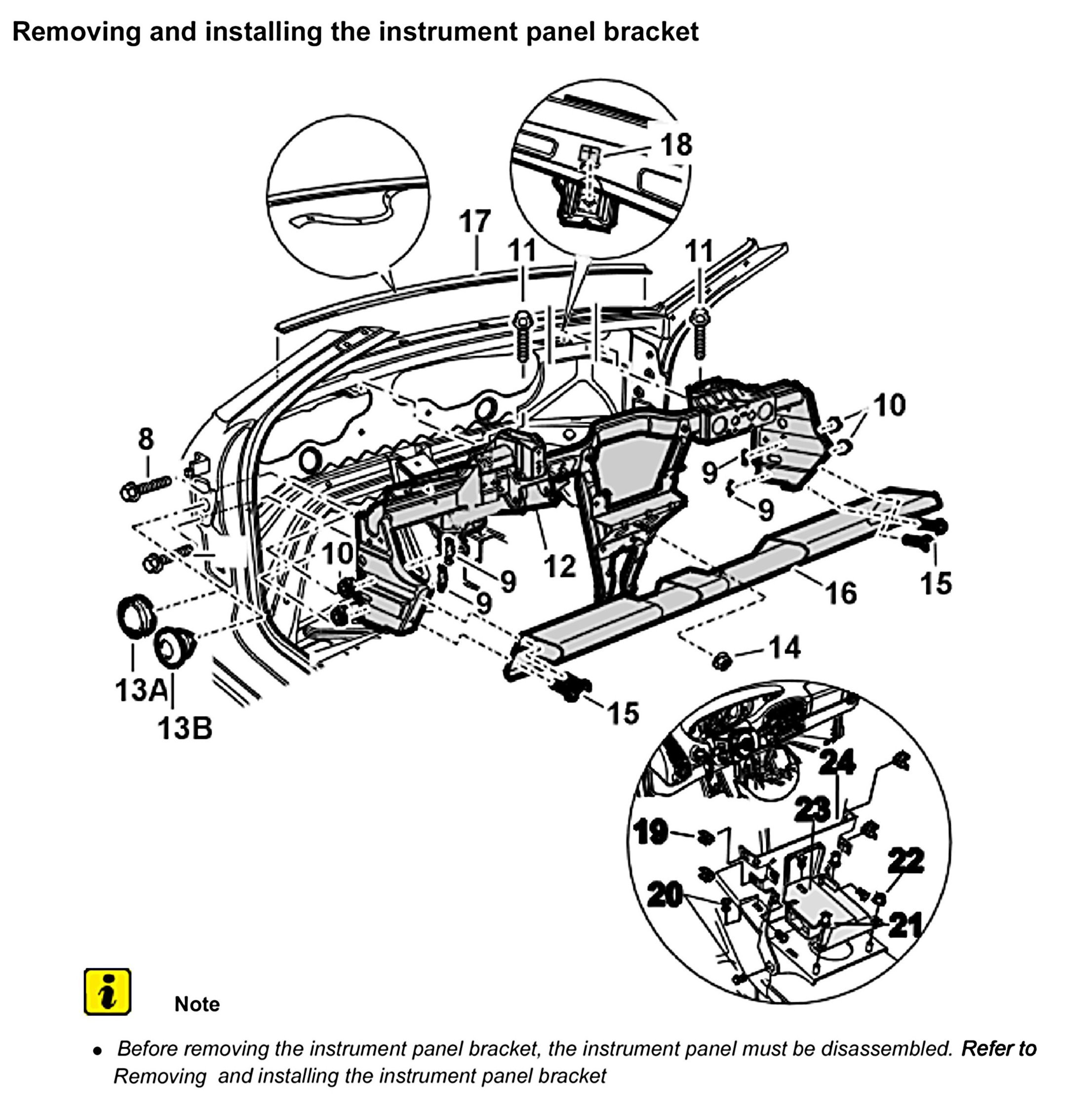

Removing and installing the instrument panel bracket









Tightening torque






Tools and materials
