Technical Data/Brake Wear Limit

Technical Data/Brake Wear Limit - Turbo

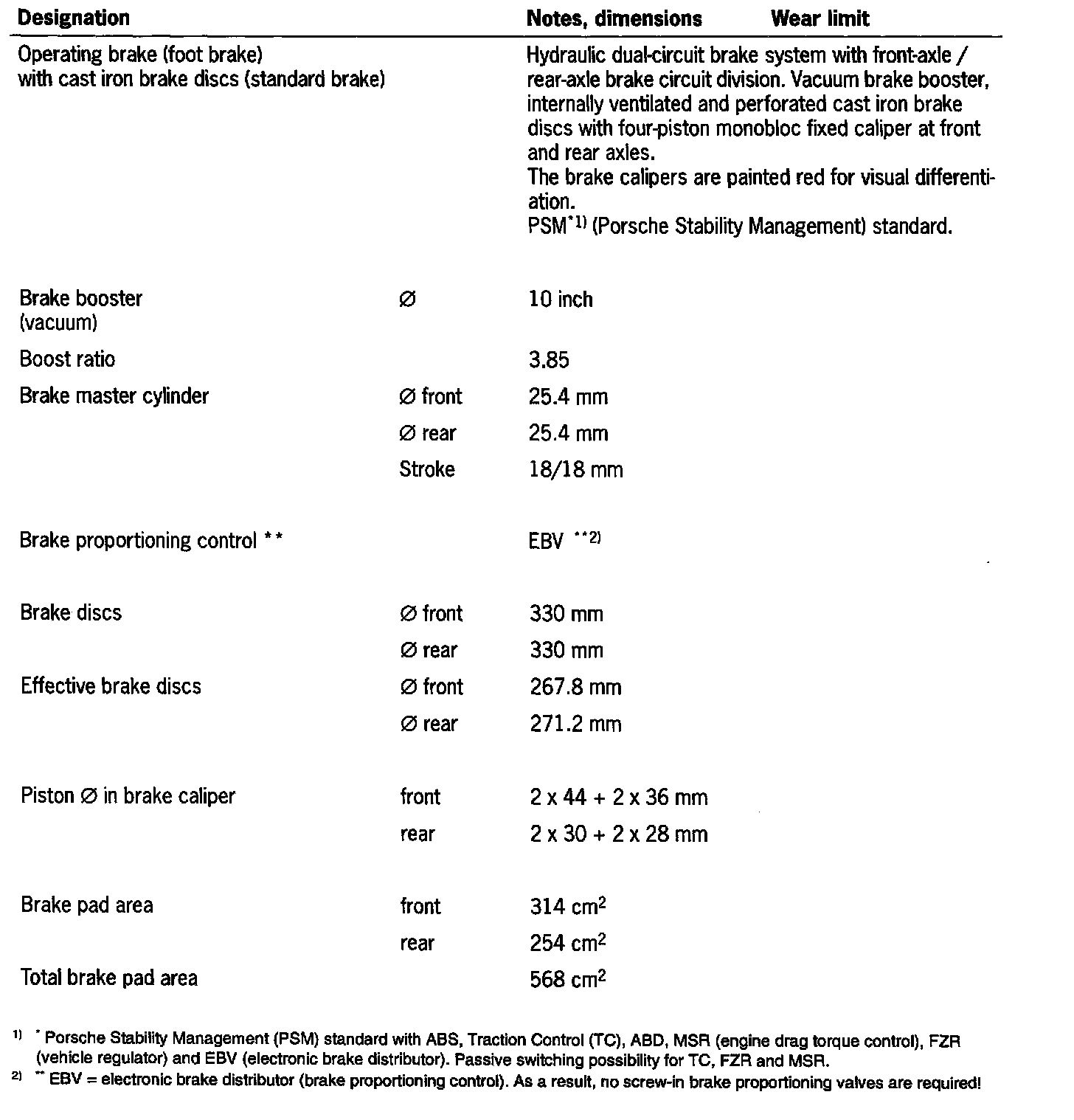

Technical Data - Turbo With Cast Iron Brake Discs







Wear Limit Technical Data - Turbo With Cast Iron Brake Discs
Depending on the wear of cast iron brake discs, two condition criteria can make replacement necessary:
1. Cracking in the holed (perforated) brake disc friction plates is in an advanced state.
2. Brake disc minimum thickness is not attained due to wear (material erosion due to friction).
