Fault Code 60

Fault Code 60

Central locking limit position - locked not reached

Diagnostic conditions
- Control of central locking system in the direction of "locked"

Possible cause of fault
- Switch for central locking faulty
- Short circuit to ground/open circuit in the wiring between the alarm system control module, switch for central locking or door locks
- Driver's/passenger's door lock faulty
- Control module faulty

Affected terminals
Plug A, terminals 5, 28, 29, 30, 32
Plug B, terminals 8 and 9

NOTE: During troubleshooting, the micro switches of the door locks are tested in Step 4. The test is to be used only for vehicles with "safe position". USA vehicles do not have a "safe" position; "Driver's door secured" and "Passenger's door secured" are therefore displayed during the "Input signals" test.

Diagnosis/troubleshooting

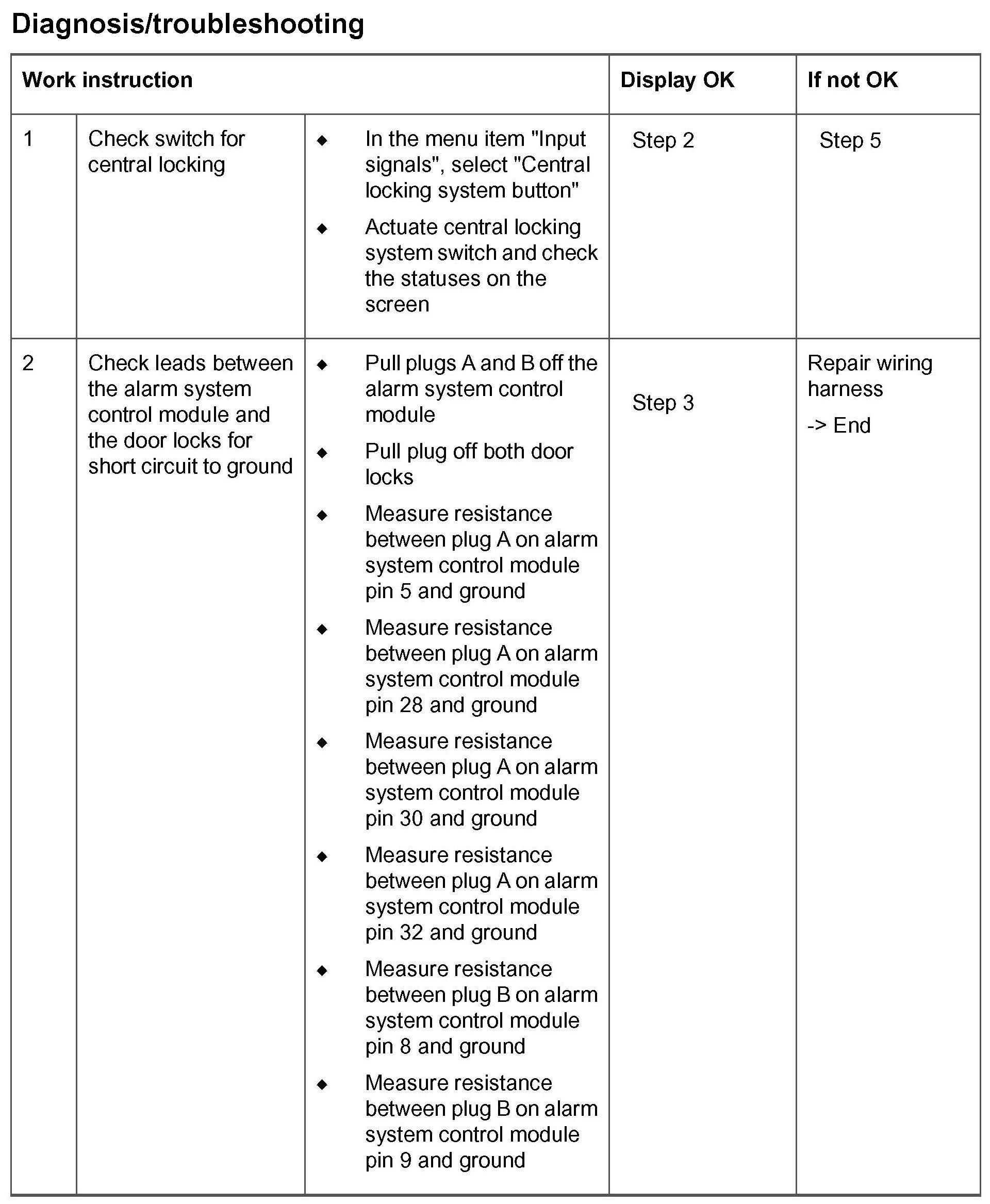

Diagnosis/troubleshooting (Part 1):

Diagnosis/troubleshooting (Part 2):

Diagnosis/troubleshooting (Part 3):

Diagnosis/troubleshooting (Part 4):
