Fault Code 2



Fault Code 2

Inner right sensor faulty

Diagnostic conditions
- Ignition on
- Reverse gear engaged
- Continuous fault tone emitted after engaging reverse gear

Possible cause of fault
- Short circuit to voltage/ground or open circuit in supply leads between the control module and the inside sensor on the right
- Inside sensor on right is faulty
- Control module is faulty

Affected terminals
Terminals I/3, I/5 and I/7

Diagnosis/troubleshooting

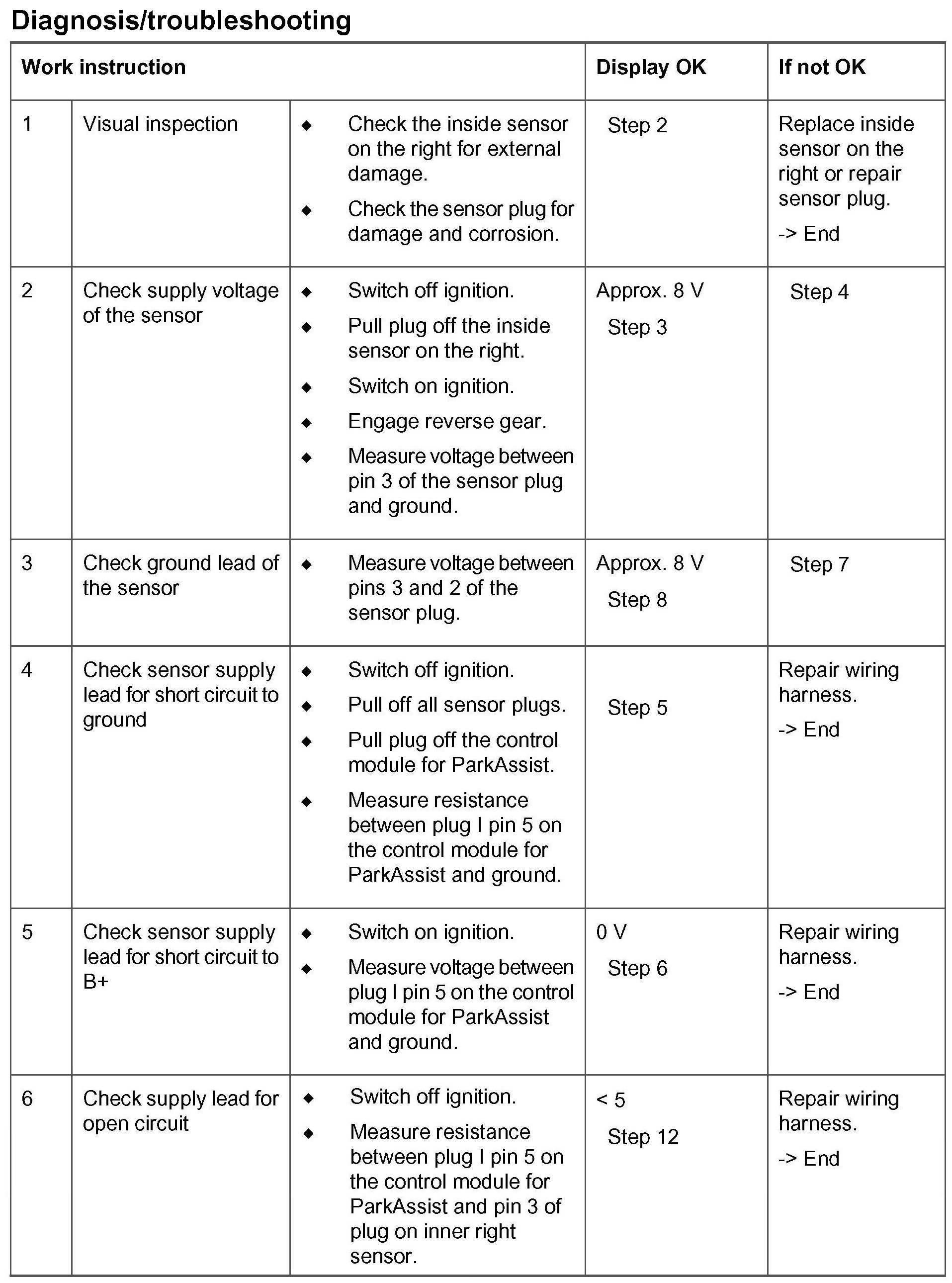

Diagnosis/troubleshooting (Part 1):




Diagnosis/troubleshooting (Part 2):
