Fault Code 43

Alarm system I32; 148

Fault code 43

Passenger-side release stuck

Diagnostic conditions
- Vehicle with "Safe position" version
- Central locking changed from "safe position" to "unlocked position

Possible cause of fault
- "Save" servomotor cannot be activated
- "Save" contact (micro switch) not connected to ground after release
- Alarm system control module coded incorrectly (country coding)

Affected terminals
Plug A, pins 28 and 29
Plug B, pin 3

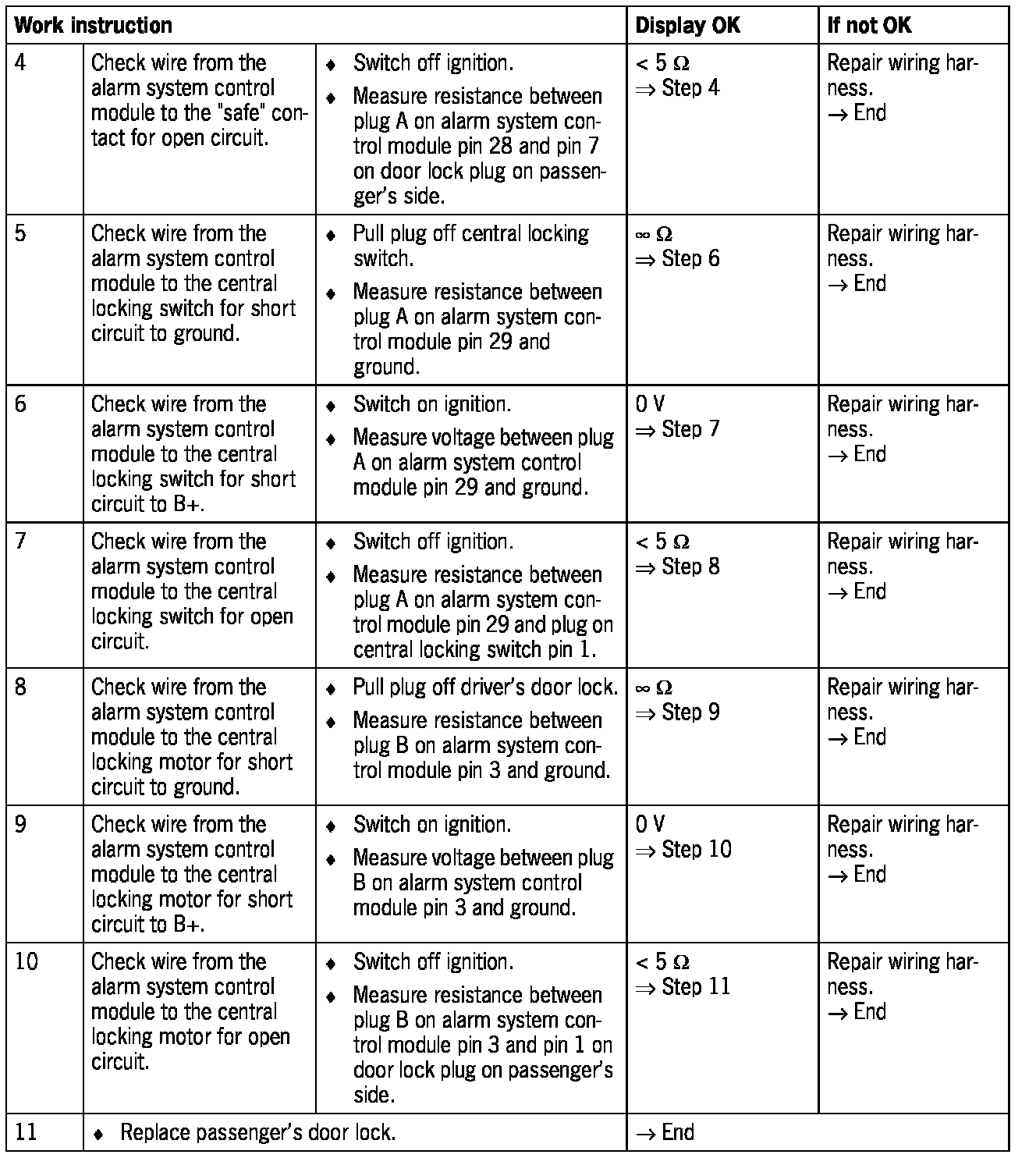

Diagnosis/troubleshooting

Part 1:

Part 2:
