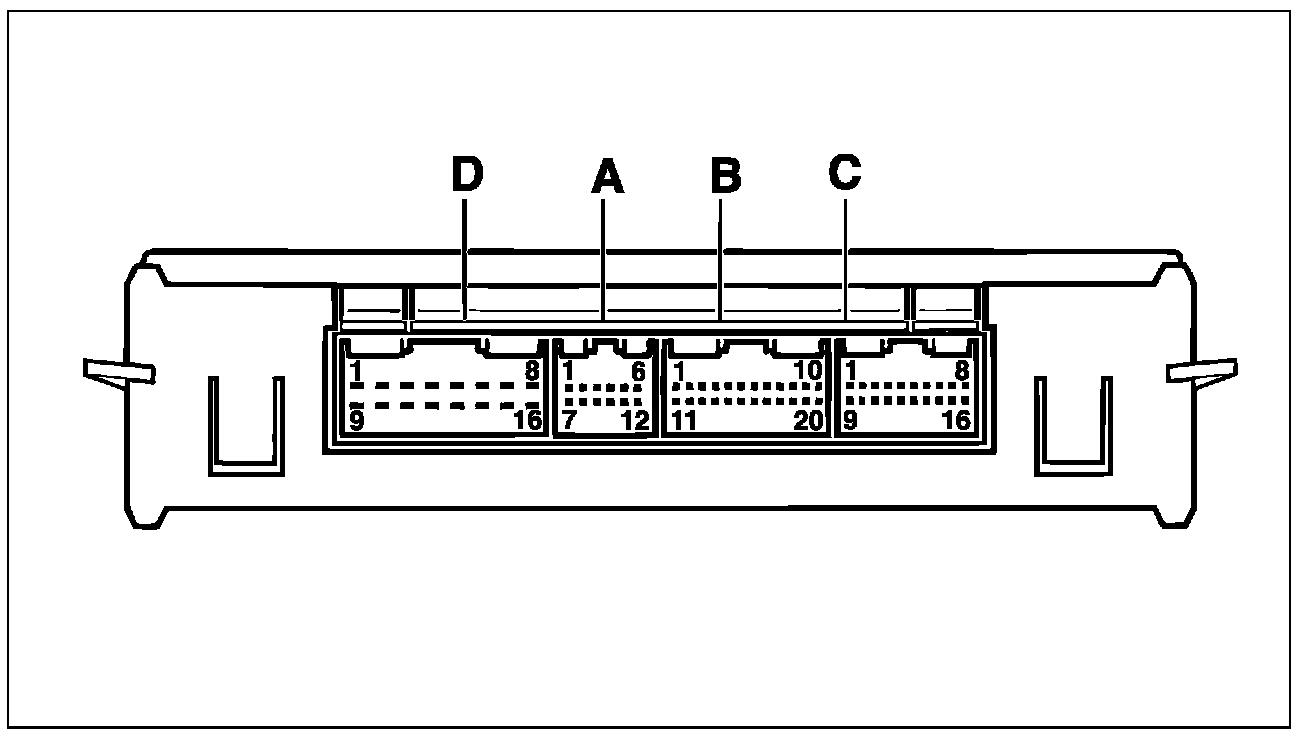

Connector assignment for air-conditioning control unit

NOTE:
- As a result of networking (use of CAN comfort bus), the two plugs A and C are no longer required.
- The signals required for function and control are exchanged via the CAN bus lines (CAN comfort high and CAN comfort low).

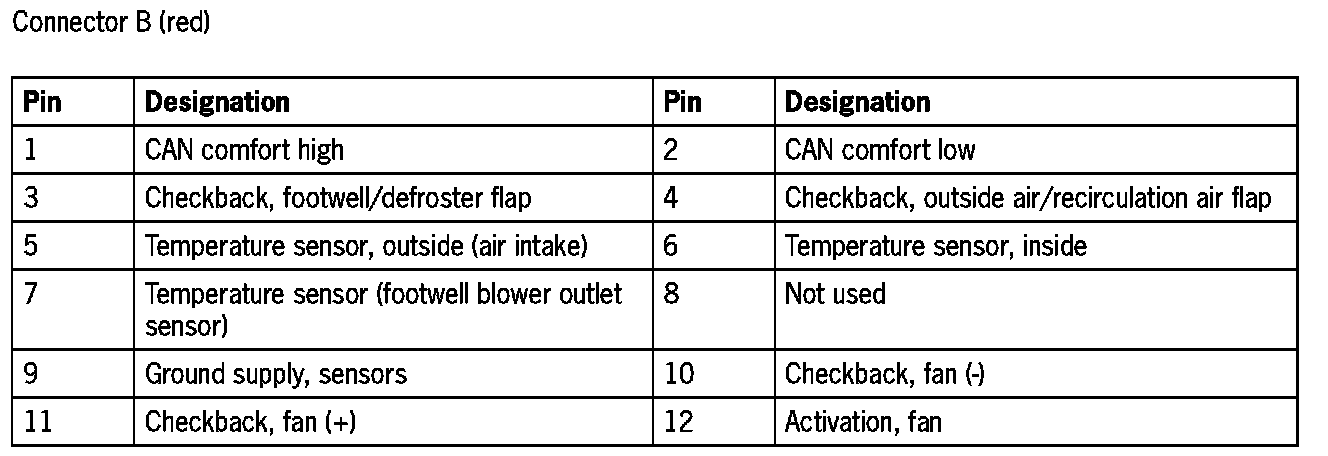

Connector B (red)

Part 1:

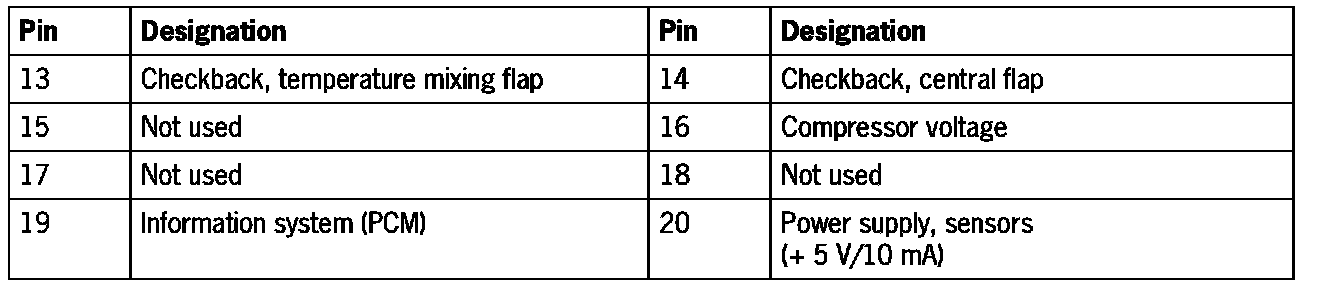

Part 2:

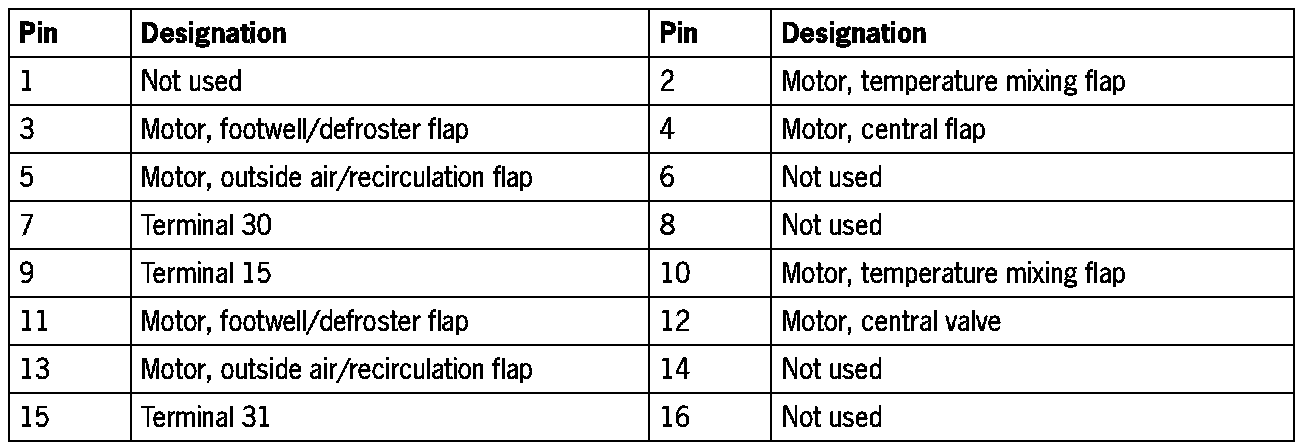

Connector D (black)
