Removing and Installing Convertible Top Gear

Removing And Installing Convertible Top Gear










CAUTION: Malfunction of convertible top gear or material damage to convertible top. Introduction of new convertible top gears on 3 May 1999.
- The new convertible top gear can be installed together with an old convertible top gear. Ensure that the corresponding -component allocation (A) / (B)- is always maintained.
- Components -up to 2 May 1999 (A)- gear 9A, spacer pin 10A, shaft 11A left, friction plate 3A
- Components -from 3 May 1999 (B)- gear 9B, spacer pin 10B, friction plate 9B, shaft 11A

INFORMATION:
- After installing a convertible top gear, the convertible top gear must be put on a basic setting. Refer to Adjusting convertible top gear

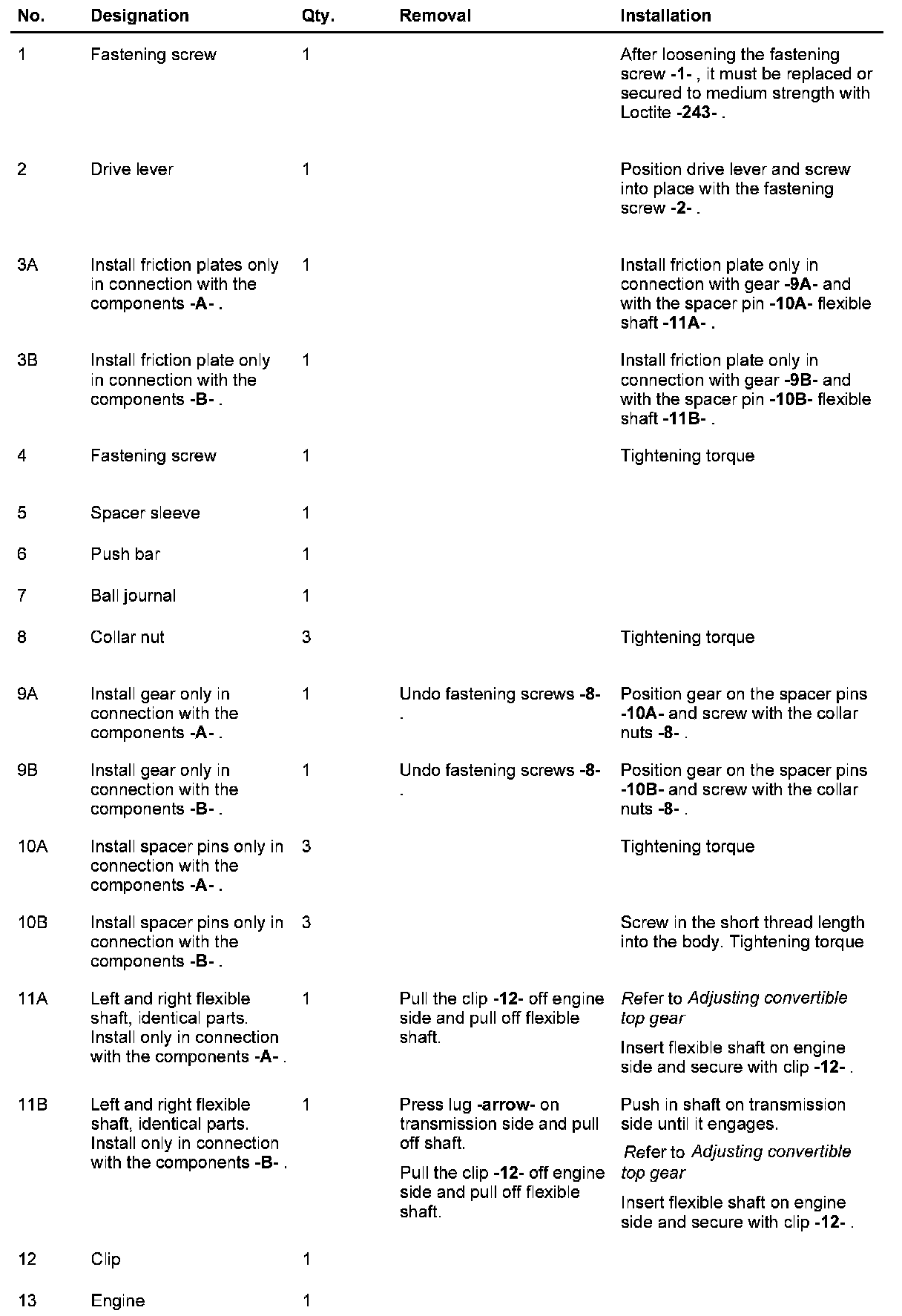

- The specification -Quantity- refers to a convertible top gear.

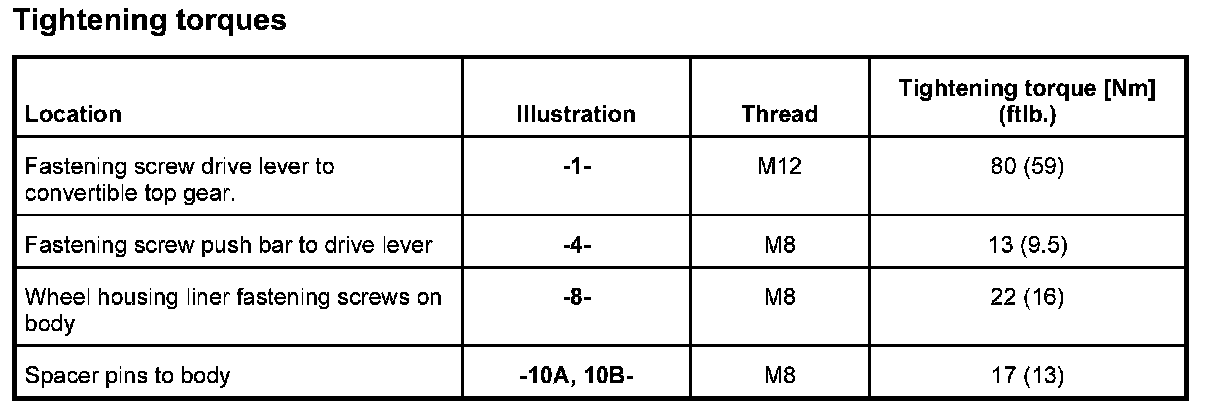

Tightening torques
