Removing and Installing Electric Motor For the Front Seat Height Adjustment

Removing And Installing Electric Motor For The Front Seat Height Adjustment

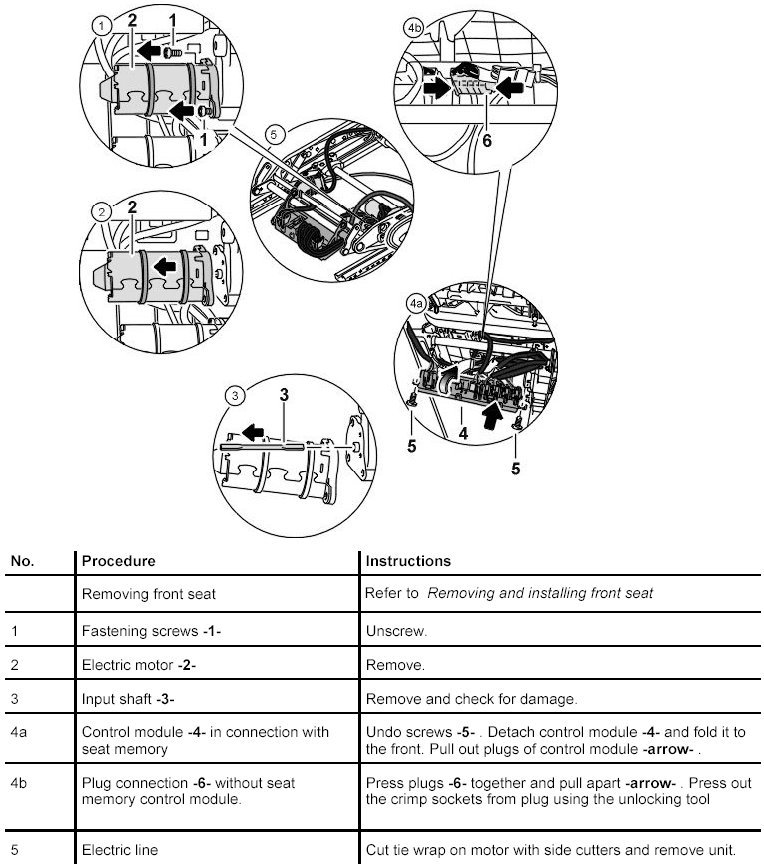

Removing electric motor for front seat height adjustment

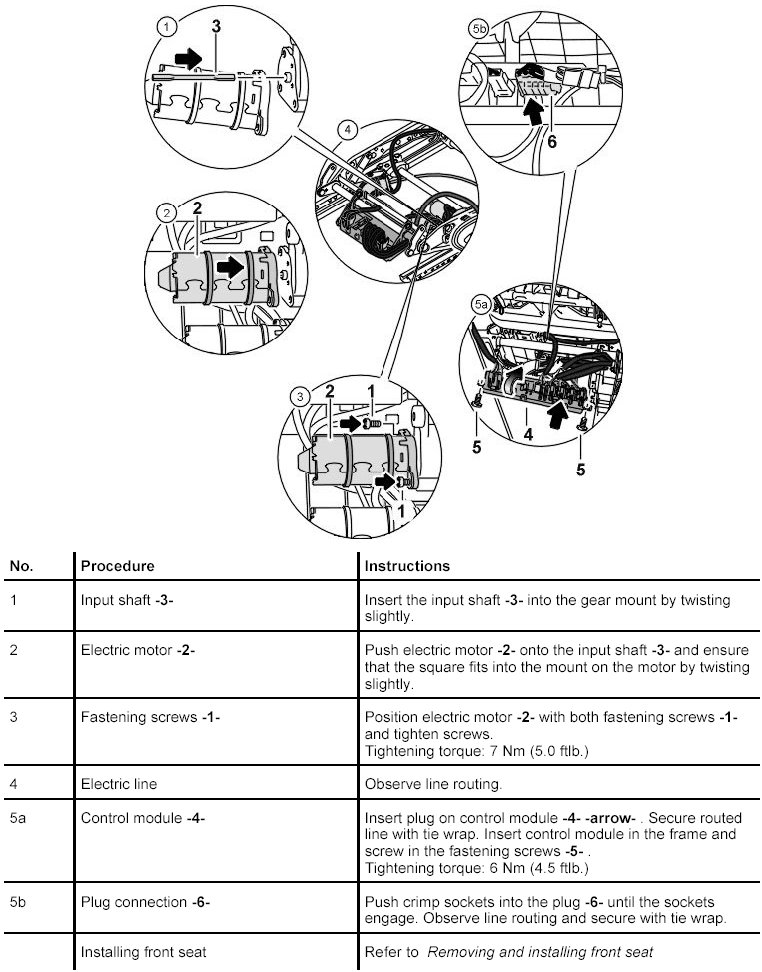

Installing electric motor for front seat height adjustment







Tools

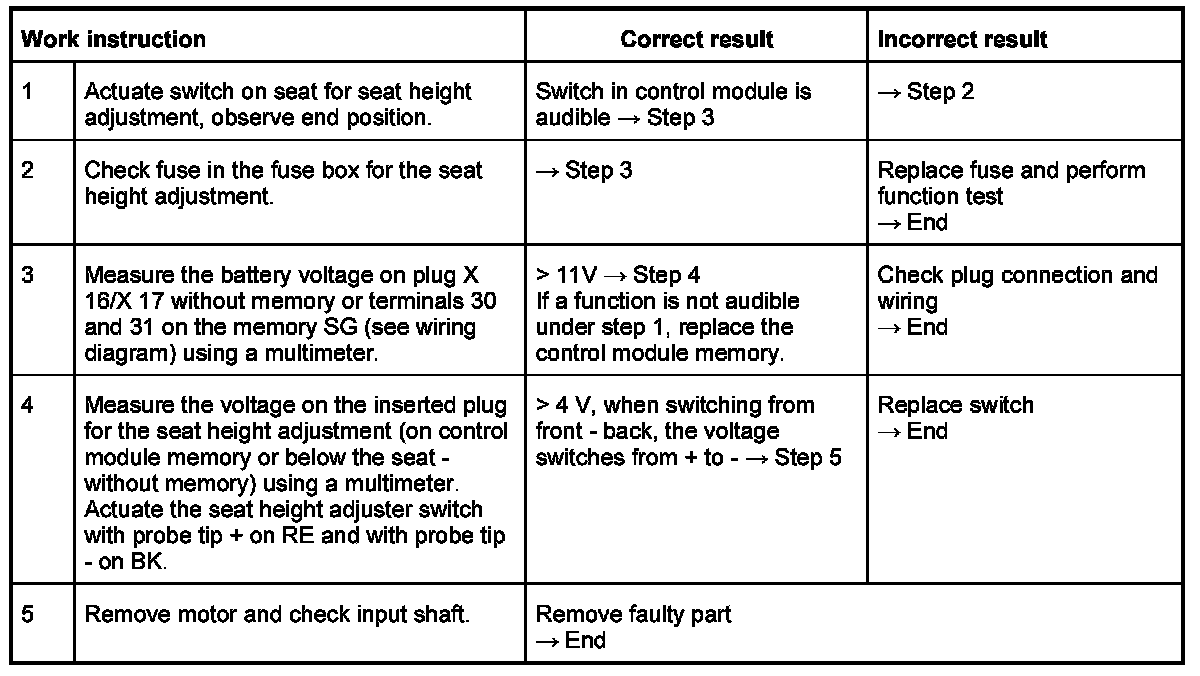

Test plan for the front seat height adjustment

In the case of the complaint "seat height adjustment does not function", proceed according to test plan. As the seat functions vary, the test plan complies with the seat version with seat memory adjustment. Work aids: Use wiring diagram and multimeter
