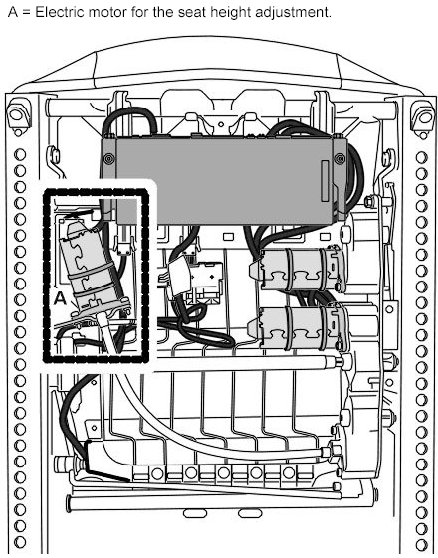

Removing and Installing Electric Motor For the Rear Seat Height Adjustment

Removing And Installing Electric Motor For The Rear Seat Height Adjustment

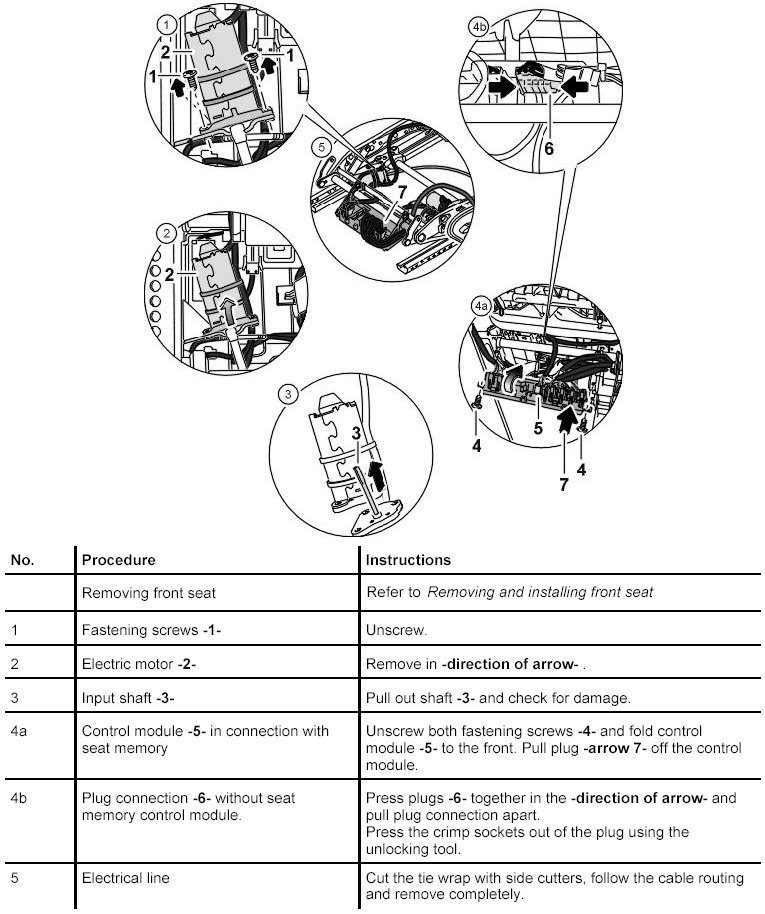

Removing electric motor for rear seat height adjustment

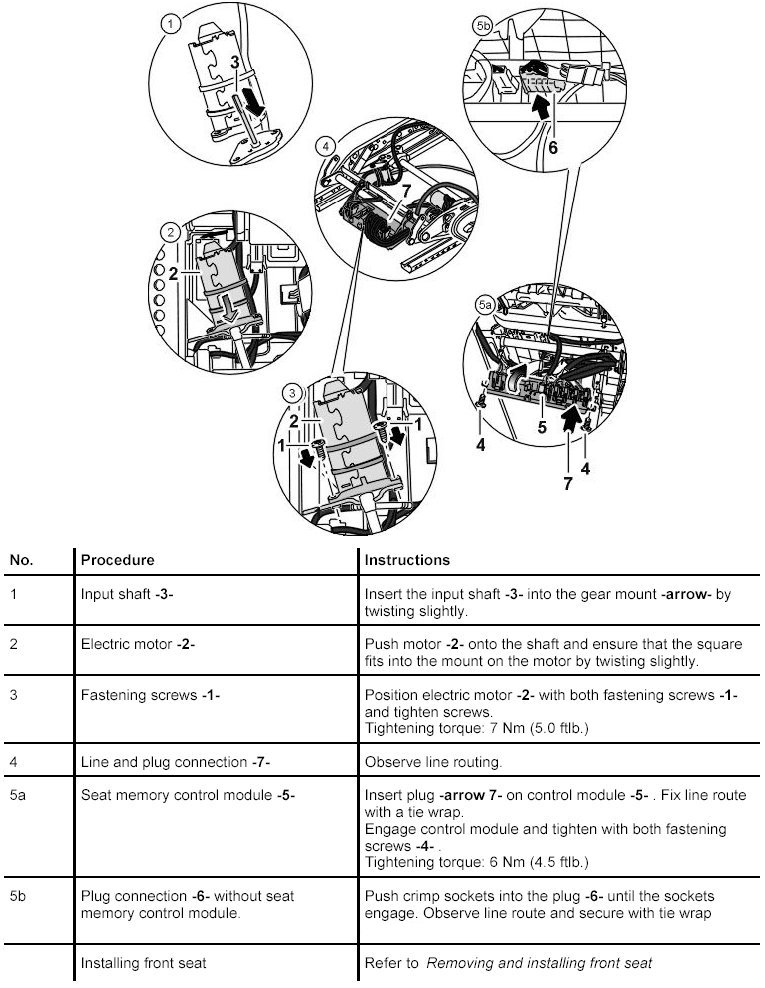

Installing electric motor for rear seat height adjustment

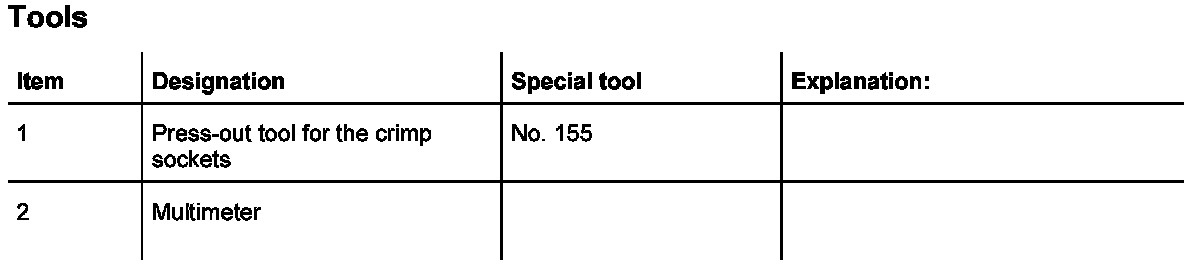

Tools







Test plan for the rear seat height adjustment

In the case of the complaint "seat height adjustment does not function", proceed according to test plan. As the seat functions vary, the test plan principally complies with the seat version with seat memory adjustment. Work aids: Use wiring diagram and multimeter.
