Removing and Installing Motor For the Lumbar Support

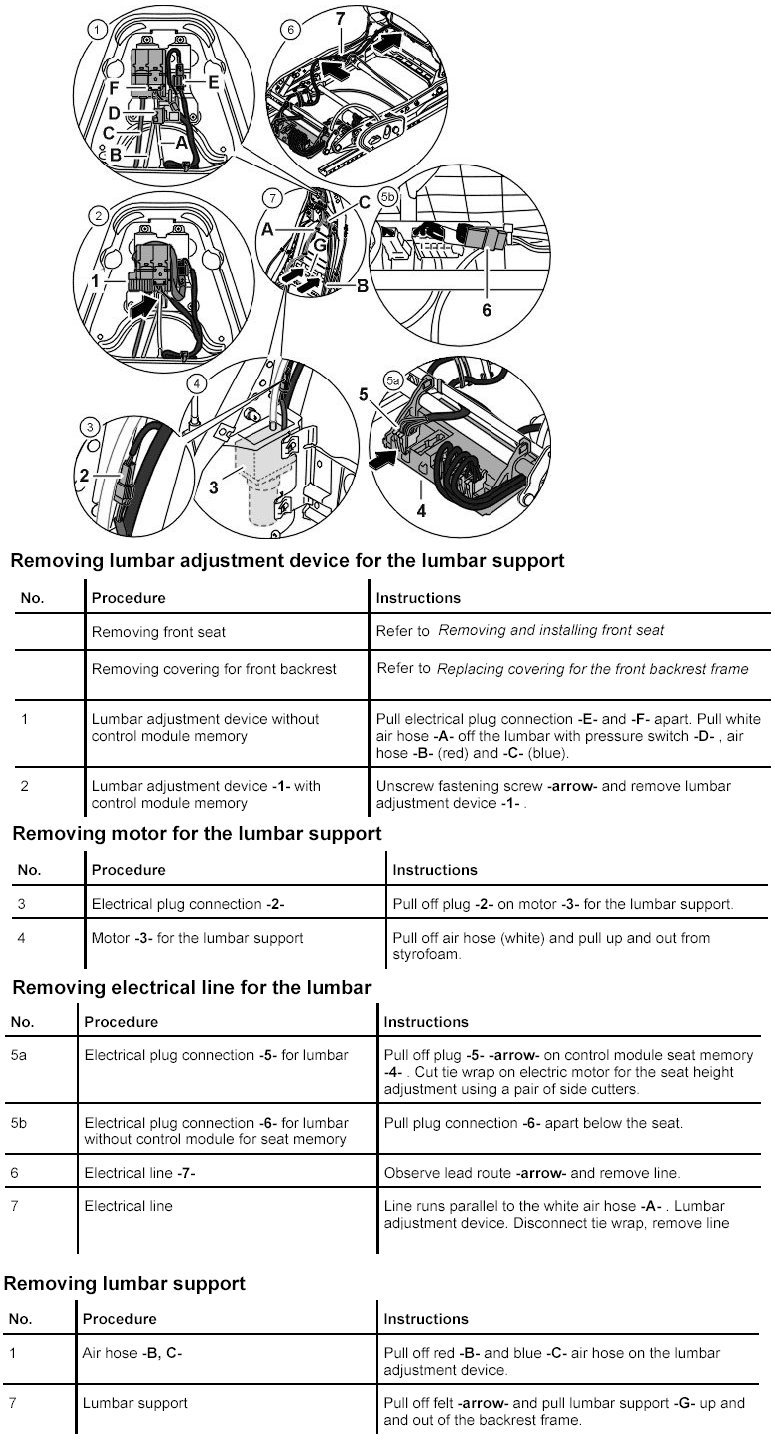

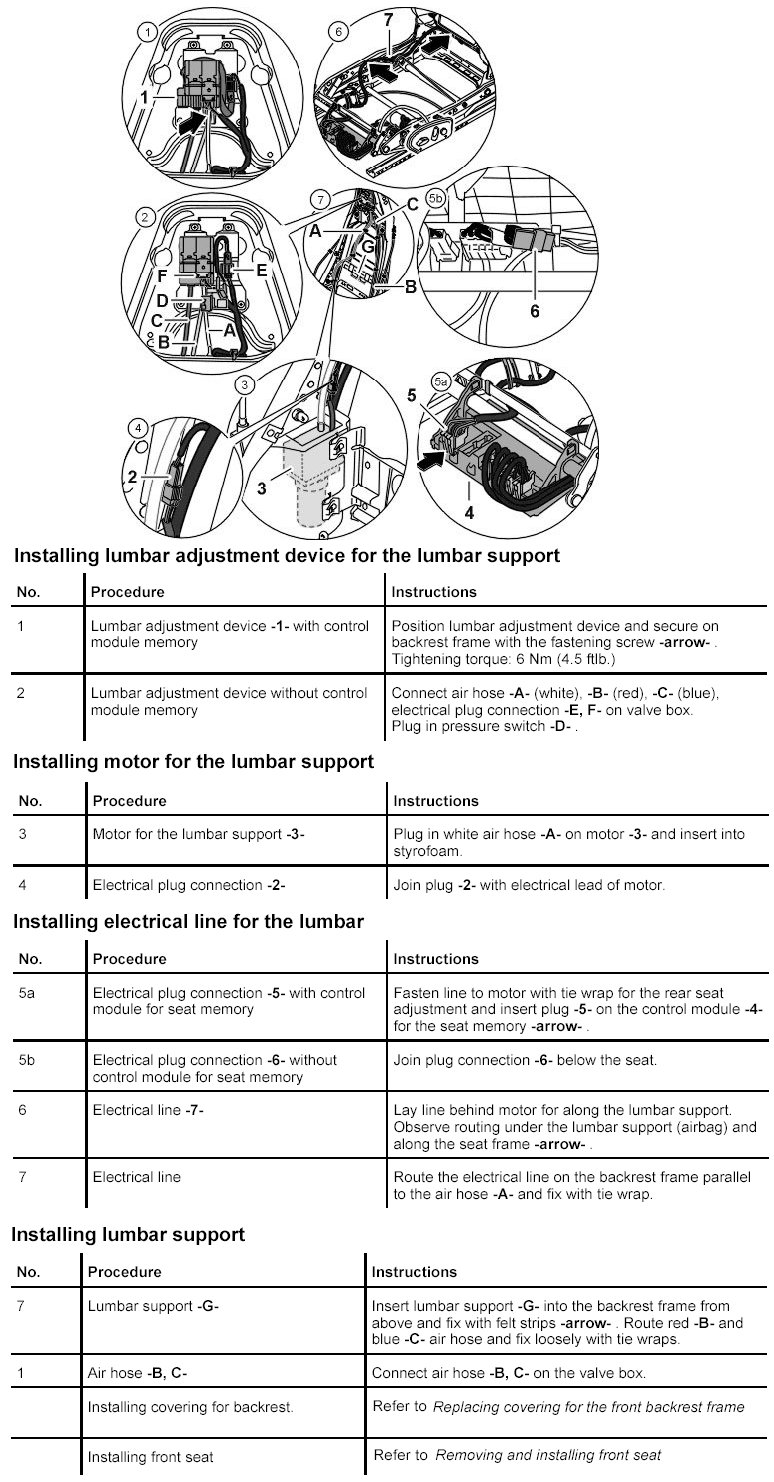

Removing And Installing Motor For The Lumbar Support

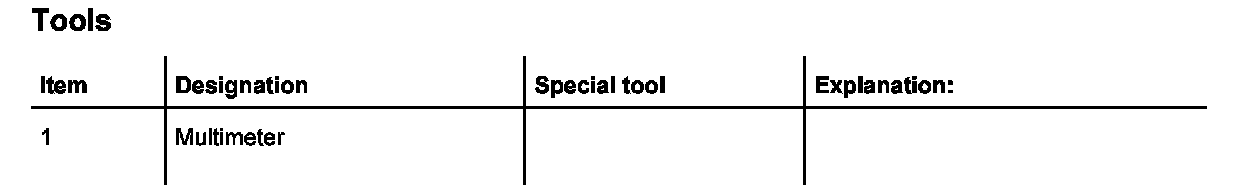

Tools

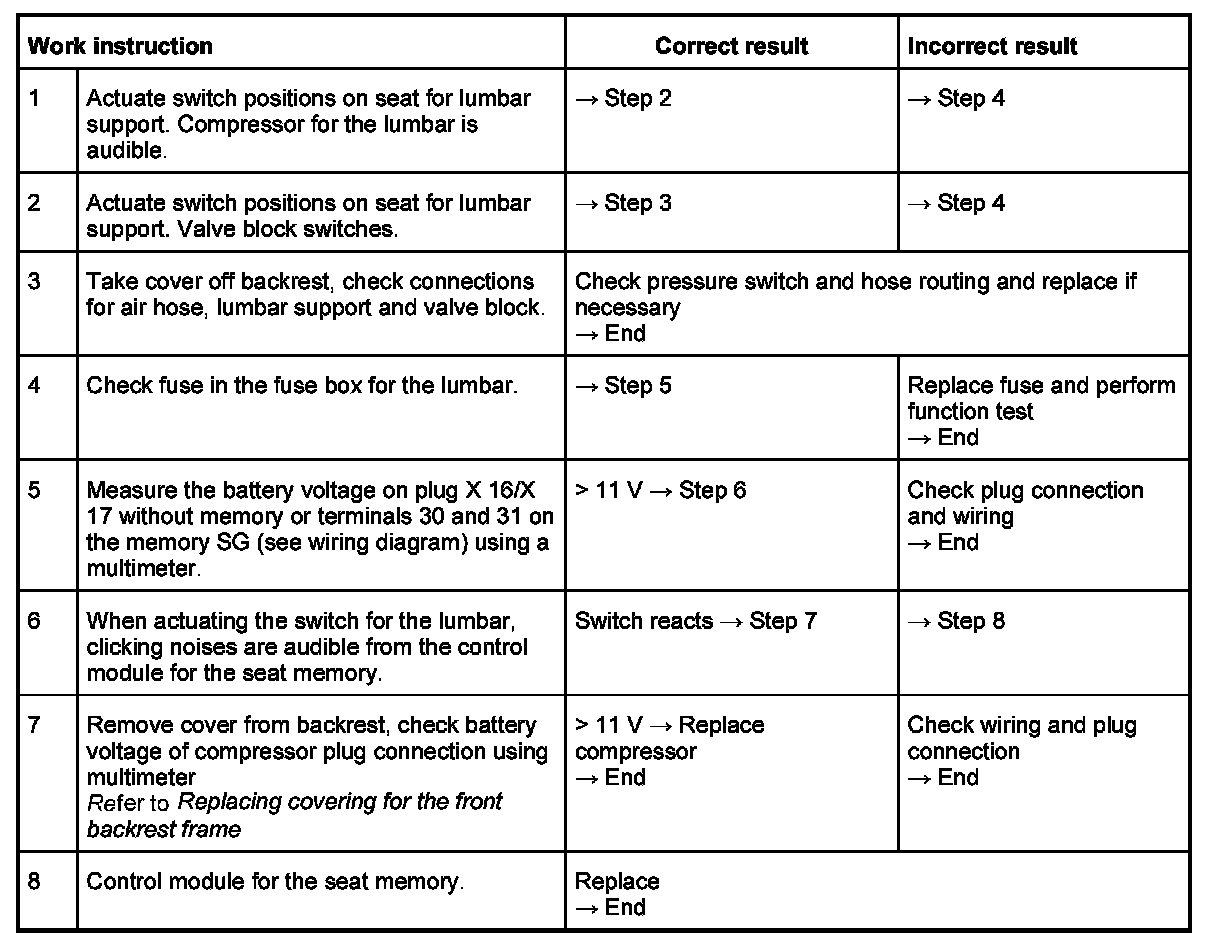

Test plan for the lumbar adjustment device

In the case of the complaint "lumbar support does not function", proceed according to the following work instruction. As the seat functions vary, the test plan principally complies with the seat version with seat memory adjustment. Work aids: Use wiring diagram and multimeter
